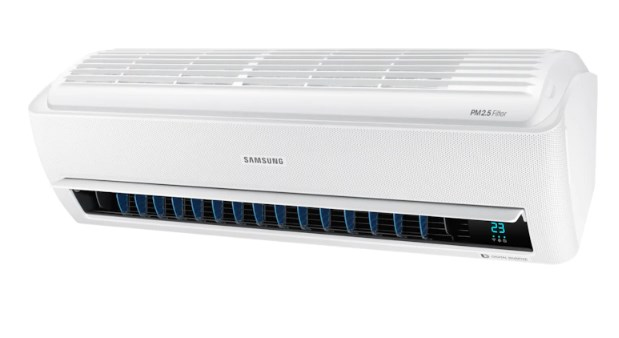

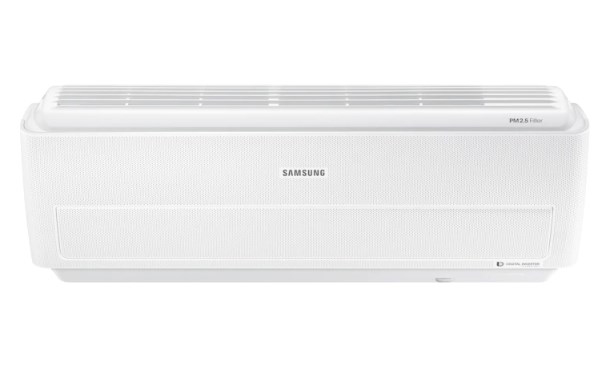

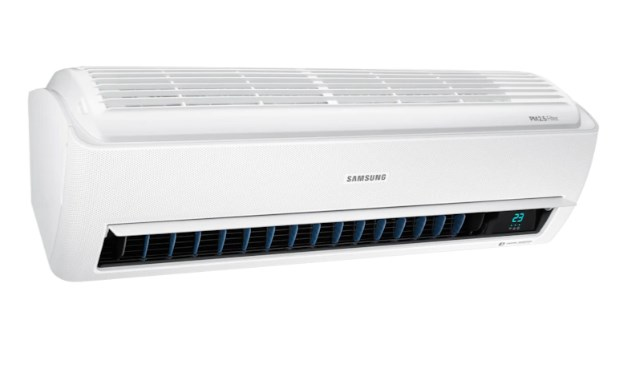

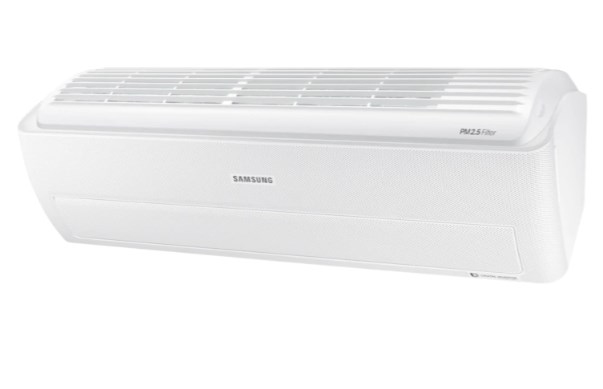

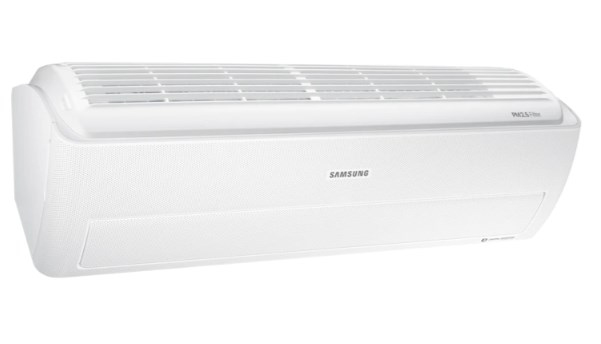

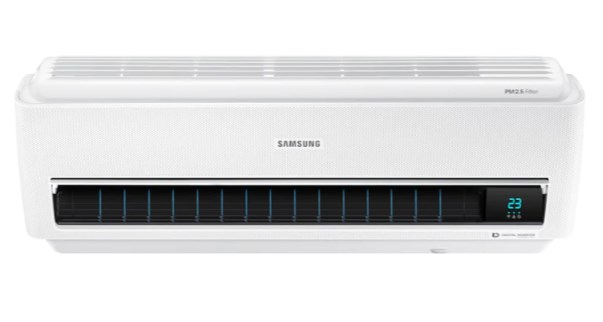

AR09NXCXAWKX Air conditioner indoor unit White
Model AR09NXCXAWKXPart no. AR09NXCXAWKXEUEAN 8801643090869
51 specifications
- Energy classA++
- TypeAir conditioner indoor unit
- ColourWhite
- Wi-FiYes
- Indoor unit noise level (low speed)16 dB
Overview
- Energy class
- A++
- Type
- Air conditioner indoor unit
- Colour
- White
- Wi-Fi
- Yes
- Indoor unit noise level (low speed)
- 16 dB
- Brand
- Samsung
- Category
- Split-System Air Conditioner
- Model
- AR09NXCXAWKX
- Part number
- AR09NXCXAWKXEU
- EAN / UPC
- 8801643090869
- Also known as
- Samsung AR09NXCXAWKX Air conditioner indoor unit White
Specifications
51 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner indoor unit |
| Multi-split | Yes |
| Product colour | White |
| Air conditioner functions | Cooling, Dehumidifying, Fan, Heating |
| Inverter technology | Yes |
| Ionizer | Yes |
| Comfort sleeping mode | Yes |
| Cooling energy efficiency (EER, W/W) | 4.31 |
| Heating energy efficiency (COP, W/W) | 4.1 |
| Cooling capacity in watts (nominal) | 2500 W |
| Cooling capacity in watts (min) | 750 W |
| Cooling capacity in watts (max) | 3300 W |
| Heating capacity in watts (nominal) (Average heating season) | 3200 W |
| Heating capacity in watts (min) | 620 W |
| Heating capacity in watts (max) | 4900 W |
| Cooling capacity (min) | 2559 BTU/h |
| Cooling capacity (max) | 11260 BTU/h |
| Heating capacity (min) | 2116 BTU/h |
| Heating capacity (max) | 1679 BTU/h |
| Timer | Yes |
| Timer duration (maximum) | 24 h |
| Refrigerating medium | R32 |
| Refrigerating medium weight | 850 g |
| Hose length (min) | 8 m |
| Hose length (max) | 15 m |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Anti-bacterial filter | Yes |
| Dehumidifying capacity | 1 l/h |
| Auto power off | Yes |
| Smartphone/tablet remote support | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A++ |
| Power consumption (cooling) (max) | 580 W |
| Power consumption (heating) (max) | 780 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 3.2 A |
| Current (heating) | 3.9 A |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit noise level (low speed) | 16 dB |
| Indoor unit noise level (high speed) | 45 dB |
| Indoor unit sound power level | 38 dB |
| Indoor unit width | 82.8 cm |
| Indoor unit depth | 29.5 cm |
| Indoor unit height | 26.5 cm |
| Indoor unit weight | 11.3 kg |
| Indoor unit package width | 88.6 cm |
| Indoor unit package depth | 31.7 cm |
| Indoor unit package height | 33.5 cm |
| Indoor unit package weight | 13.9 kg |
