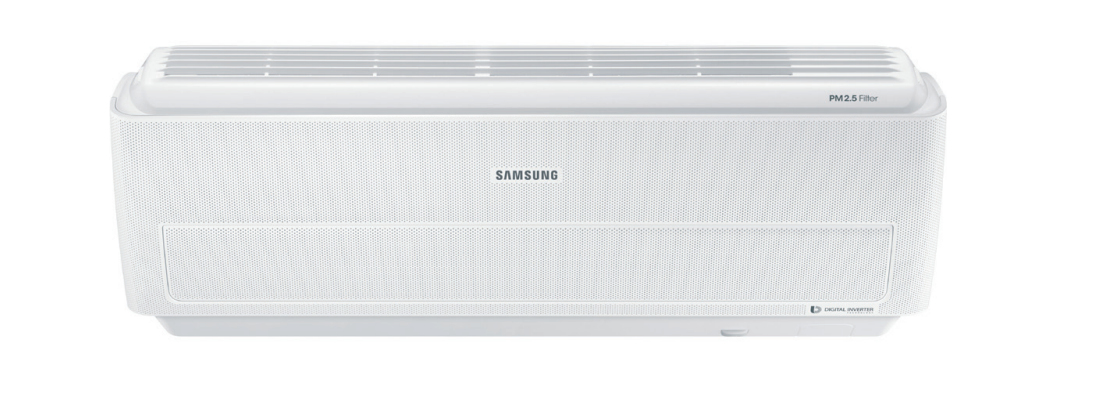

AR09NXCXAWKNEU air conditioner Air conditioner indoor unit White
Model AR09NXCXAWKNEUEAN 8801643090852
47 specifications
- Energy classA++
- TypeAir conditioner indoor unit
- ColourWhite
- Wi-FiYes
- Indoor unit typeWall-mountable
Overview
- Energy class
- A++
- Type
- Air conditioner indoor unit
- Colour
- White
- Wi-Fi
- Yes
- Indoor unit type
- Wall-mountable
- Brand
- Samsung
- Category
- Split-System Air Conditioner
- Model
- AR09NXCXAWKNEU
- Part number
- AR09NXCXAWKNEU
- EAN / UPC
- 8801643090852
- Also known as
- Samsung AR09NXCXAWKNEU air conditioner Air conditioner indoor unit White
Specifications
47 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner indoor unit |
| Multi-split | Yes |
| Product colour | White |
| Air conditioner functions | Cooling, Fan, Heating |
| Inverter technology | Yes |
| Ionizer | No |
| Seasonal efficiency rating (cooling) (SEER) | 7.2 |
| Cooling capacity in watts (nominal) | 2500 W |
| Cooling capacity in watts (min) | 750 W |
| Cooling capacity in watts (max) | 3300 W |
| Heating capacity in watts (nominal) (Warmer heating season) | 620 W |
| Heating capacity in watts (nominal) (Average heating season) | 3200 W |
| Heating capacity in watts (nominal) (Colder heating season) | 4900 W |
| Cooling capacity (min) | 2116 BTU/h |
| Cooling capacity (max) | 16719 BTU/h |
| Heating capacity (min) | 2116 BTU/h |
| Heating capacity (max) | 18767 BTU/h |
| Refrigerating medium | R32 |
| Hose length (min) | 5 m |
| Hose length (max) | 15 m |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Air filter | Yes |
| Operating temperature (cooling) (T-T) | -10 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A++ |
| Annual energy consumption (cooling) | 122 kWh |
| Annual energy consumption (heating) (Average heating season) | 700 kWh |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Current | 1 A |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit noise level (low speed) | 16 dB |
| Indoor unit noise level (high speed) | 56 dB |
| Indoor unit sound power level | 38 dB |
| Cooling airflow (indoor unit) | 570 m³/h |
| Indoor unit width | 82.8 cm |
| Indoor unit depth | 29.5 cm |
| Indoor unit height | 26.5 cm |
| Indoor unit weight | 11.3 kg |
| Indoor unit package width | 88.6 cm |
| Indoor unit package depth | 31.7 cm |
| Indoor unit package height | 33.5 cm |
| Indoor unit package weight | 33.2 kg |
Other features
| Specification | Value |
|---|---|
| Seasonal efficiency rating (heating) (SCOP) | 4.6 |
