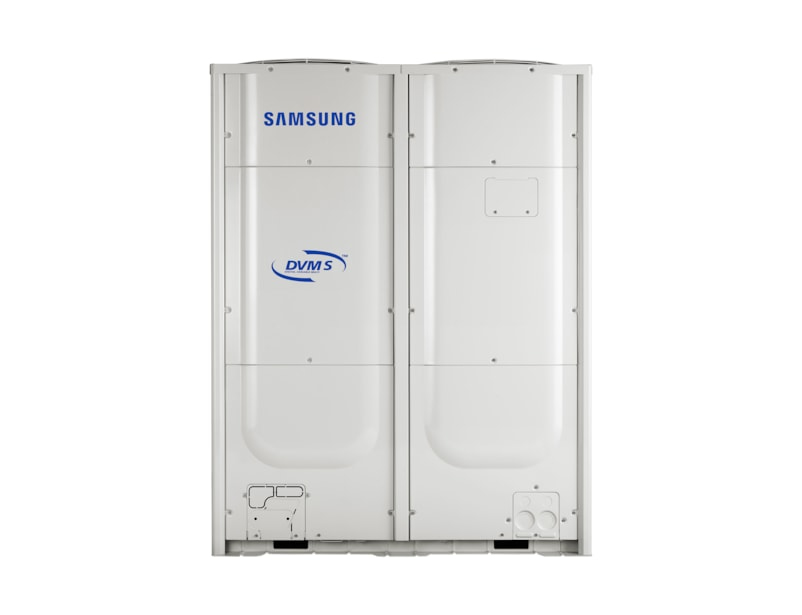

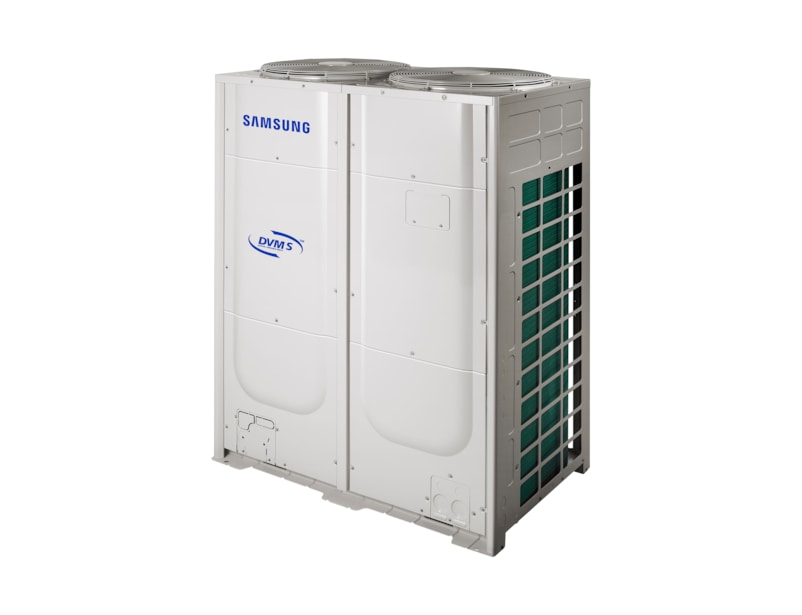

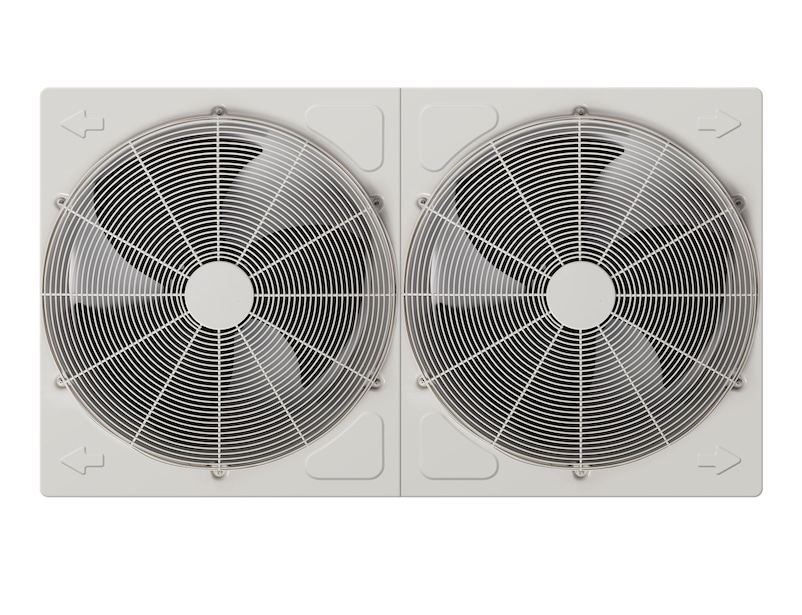

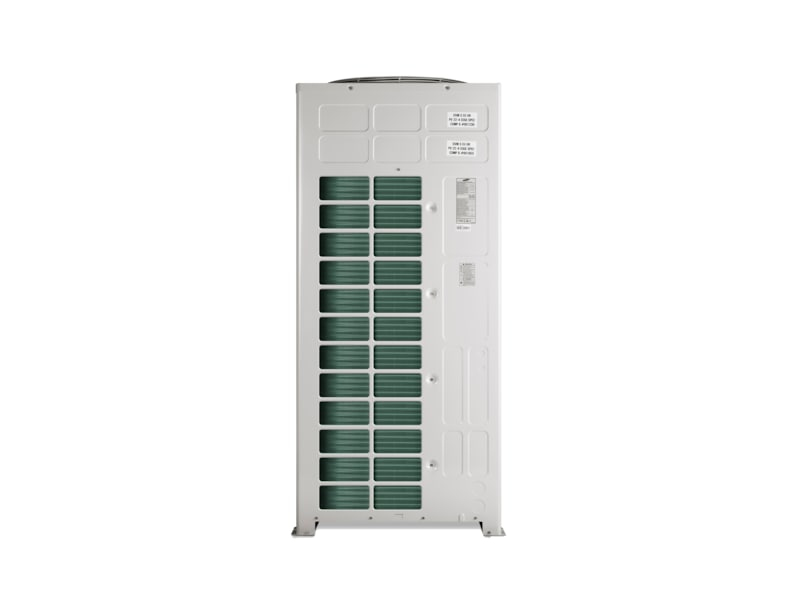

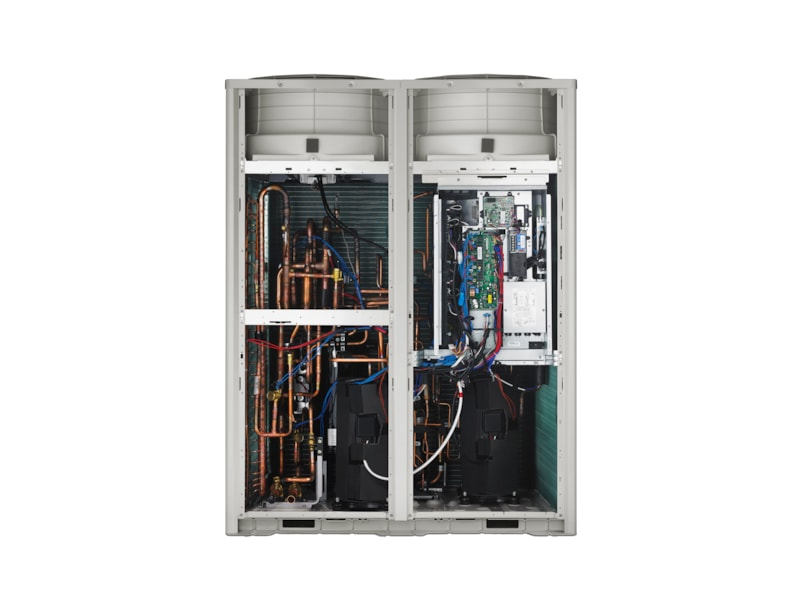

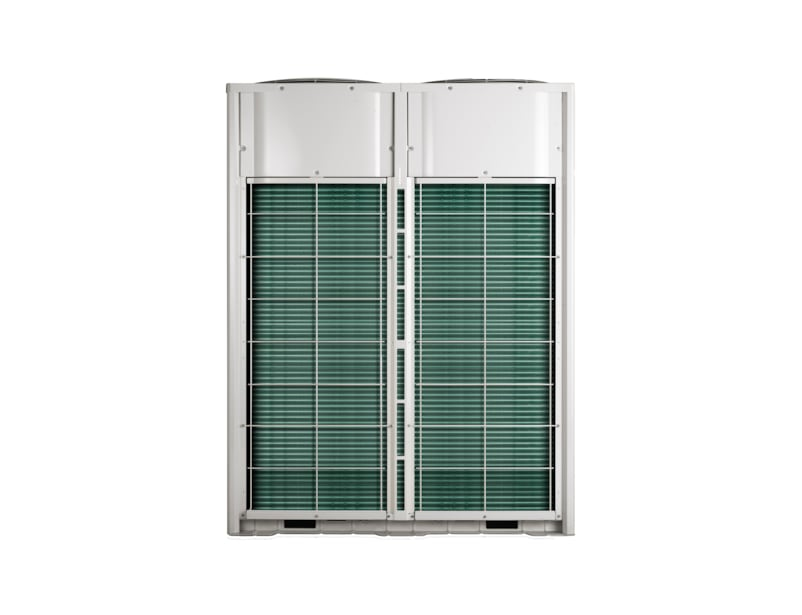

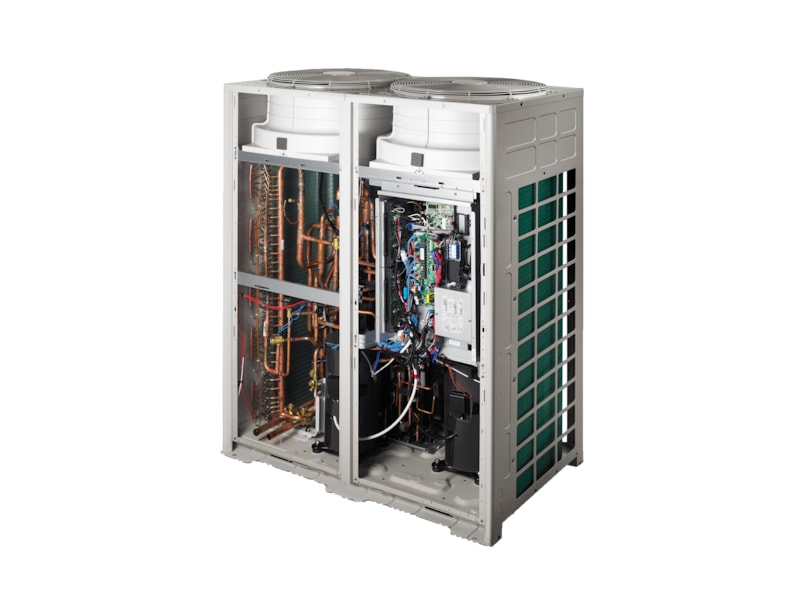

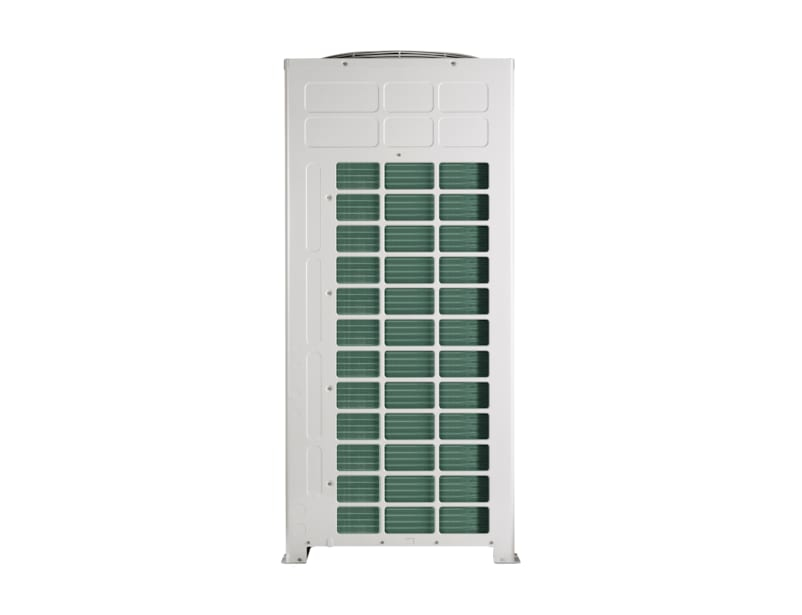

AM200JXVHGH Air conditioner outdoor unit White
Model AM200JXVHGHPart no. AM200JXVHGH/EU
34 specifications
- TypeAir conditioner outdoor unit
- ColourWhite
- Power consumption (cooling) (max)13050 W
- Outdoor unit noise level64 dB
Overview
- Type
- Air conditioner outdoor unit
- Colour
- White
- Power consumption (cooling) (max)
- 13050 W
- Outdoor unit noise level
- 64 dB
- Brand
- Samsung
- Category
- Split-System Air Conditioner
- Model
- AM200JXVHGH
- Part number
- AM200JXVHGH/EU
- Also known as
- Samsung AM200JXVHGH Air conditioner outdoor unit White
Specifications
34 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Inverter technology | Yes |
| Cooling capacity in watts (max) | 56000 W |
| Heating capacity in watts (max) | 63000 W |
| Cooling capacity (nominal) | 191100 BTU/h |
| Heating capacity (nominal) | 215000 BTU/h |
| Refrigerating medium | R410A |
| Refrigerating medium weight | 8.4 kg |
| Hose length (max) | 220 m |
| Gas hose diameter | 2.86 cm |
| Liquid hose diameter | 1.59 cm |
| Smartphone/tablet remote support | Yes |
| Operating temperature (cooling) (T-T) | -5 - 48 °C |
| Operating temperature (heating) (T-T) | -25 - 24 °C |
Power
| Specification | Value |
|---|---|
| Power consumption (cooling) (max) | 13050 W |
| Power consumption (heating) (max) | 13100 W |
| AC input voltage | 380 - 415 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 20.9 A |
| Current (heating) | 21 A |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 64 dB |
| Outdoor unit sound power level | 86 dB |
| Cooling airflow (outdoor unit) | 290 m³/h |
| Outdoor unit width | 129.5 cm |
| Outdoor unit depth | 76.5 cm |
| Outdoor unit height | 169.5 cm |
| Outdoor unit weight | 300 kg |
| Outdoor unit package width | 136.3 cm |
| Outdoor unit package depth | 83.2 cm |
| Outdoor unit package height | 188.7 cm |
| Outdoor unit package weight | 319 kg |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
