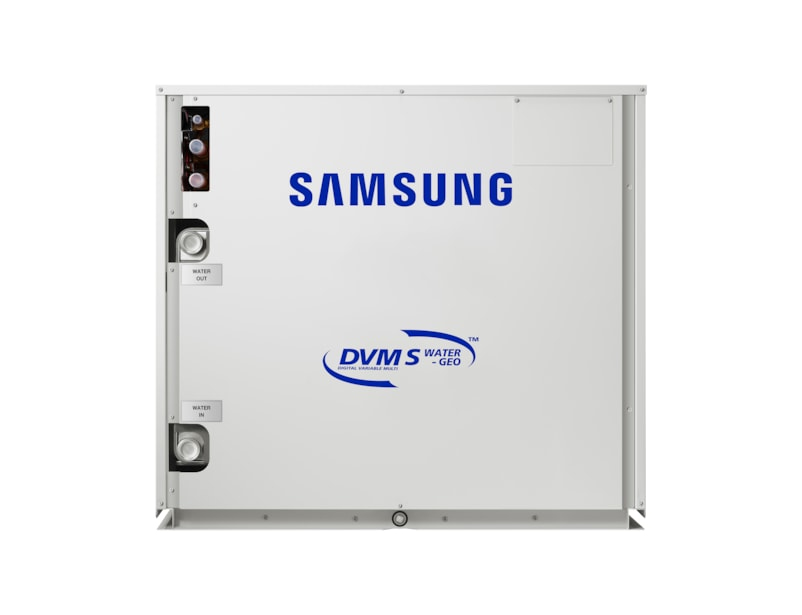

AM200FXWANR Air conditioner outdoor unit White
Model AM200FXWANRPart no. AM200FXWANR/EU
33 specifications
- TypeAir conditioner outdoor unit
- ColourWhite
- Power consumption (cooling) (max)10.77 W
- Outdoor unit noise level51 dB
Overview
- Type
- Air conditioner outdoor unit
- Colour
- White
- Power consumption (cooling) (max)
- 10.77 W
- Outdoor unit noise level
- 51 dB
- Brand
- Samsung
- Category
- Split-System Air Conditioner
- Model
- AM200FXWANR
- Part number
- AM200FXWANR/EU
- Also known as
- Samsung AM200FXWANR Air conditioner outdoor unit White
Specifications
33 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Inverter technology | Yes |
| Cooling energy efficiency (EER, W/W) | 5.2 |
| Heating energy efficiency (COP, W/W) | 5.8 |
| Cooling capacity in watts (max) | 56000 W |
| Heating capacity in watts (max) | 63000 W |
| Cooling capacity (min) | 191100 BTU/h |
| Heating capacity (nominal) | 215000 BTU/h |
| Refrigerating medium | R410A |
| Refrigerating medium weight | 9.8 kg |
| Hose length (max) | 170 m |
| Gas hose diameter | 2.86 cm |
| Liquid hose diameter | 1.59 cm |
| Operating temperature (cooling) (T-T) | 10 - 45 °C |
| Operating temperature (heating) (T-T) | 10 - 45 °C |
Power
| Specification | Value |
|---|---|
| Power consumption (cooling) (max) | 10.77 W |
| Power consumption (heating) (max) | 10.86 W |
| AC input voltage | 380 - 415 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 17.3 A |
| Current (heating) | 17.4 A |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 51 dB |
| Outdoor unit sound power level | 73 dB |
| Outdoor unit width | 110 cm |
| Outdoor unit depth | 54.5 cm |
| Outdoor unit height | 100 cm |
| Outdoor unit weight | 240 kg |
| Outdoor unit package width | 117 cm |
| Outdoor unit package depth | 62 cm |
| Outdoor unit package height | 120 cm |
| Outdoor unit package weight | 250 kg |
