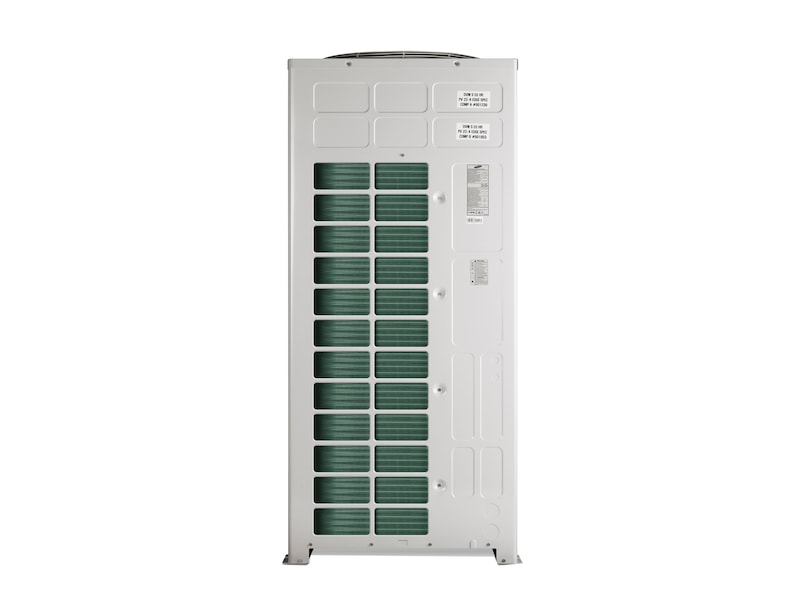

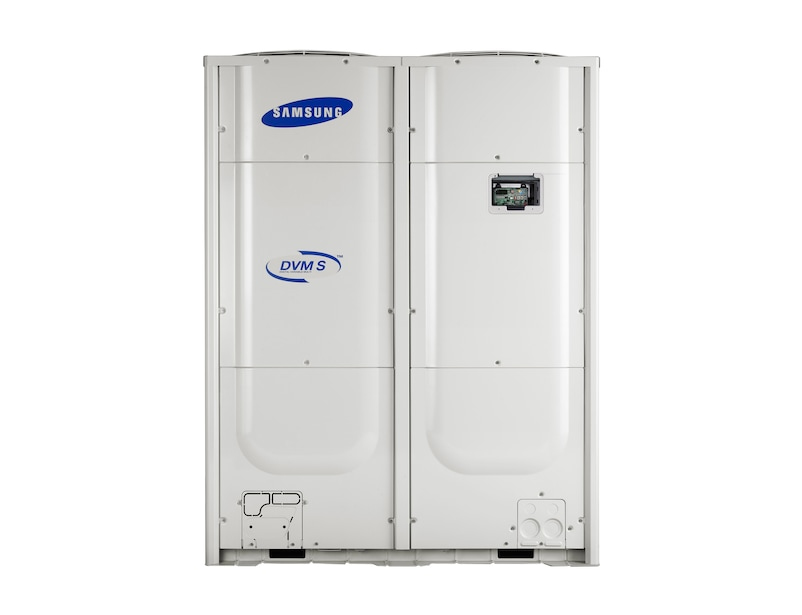

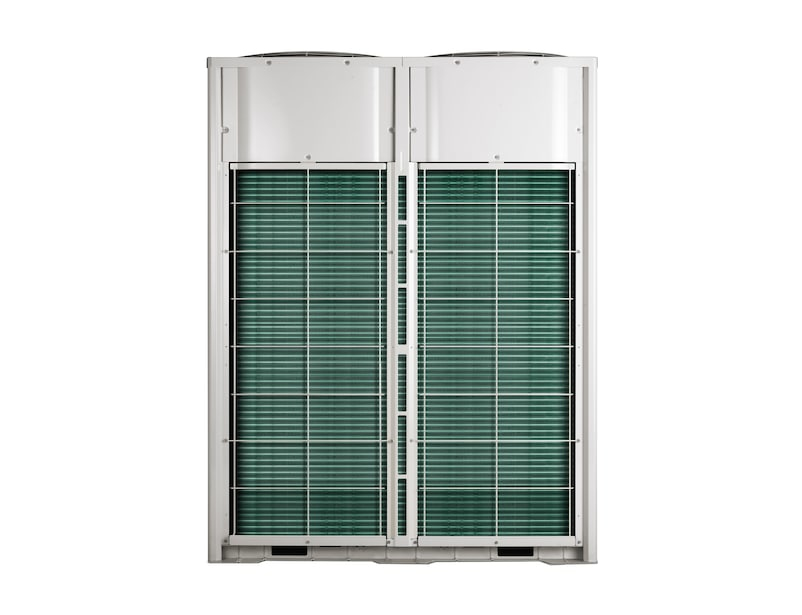

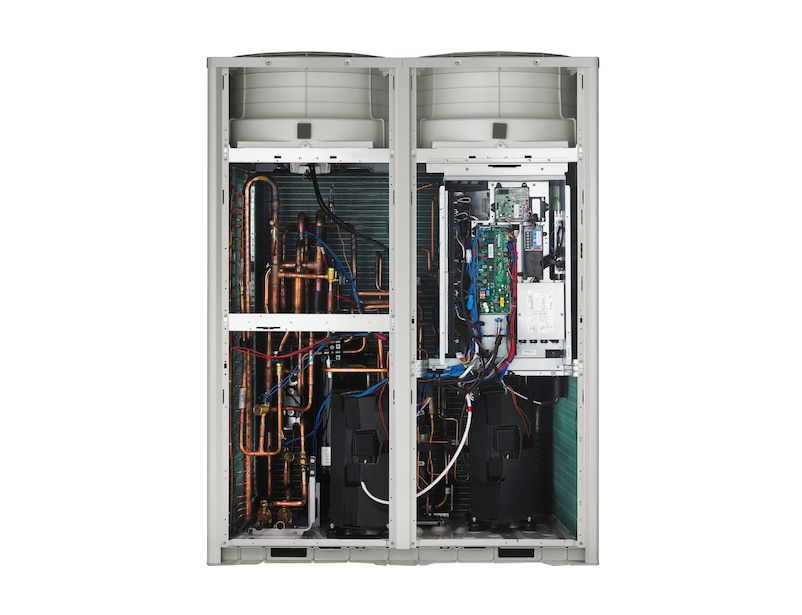

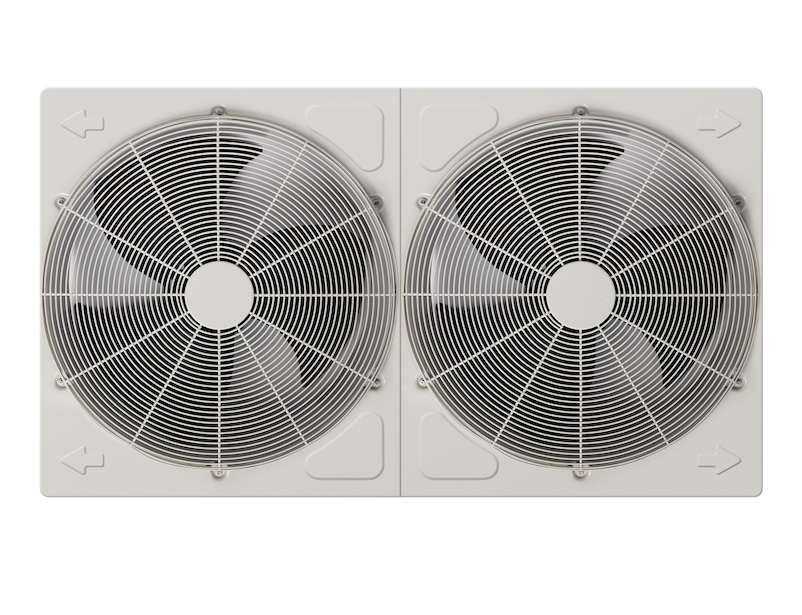

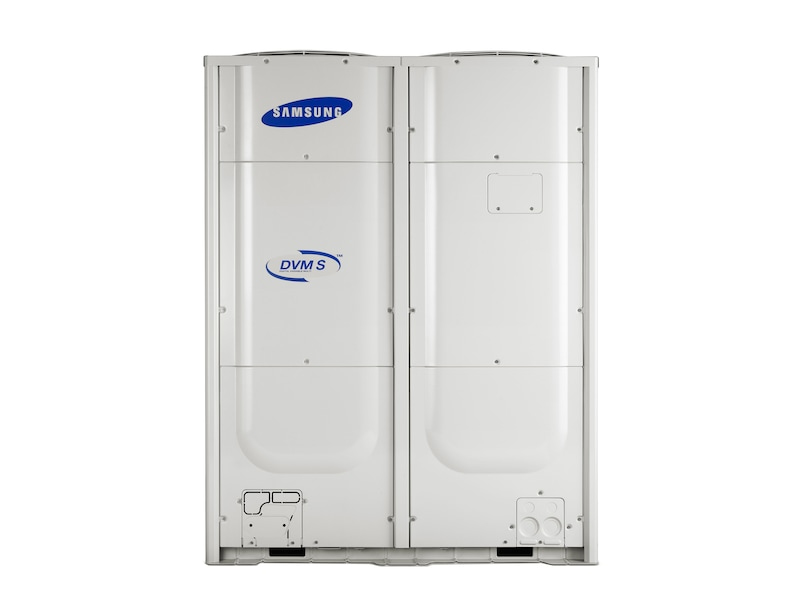

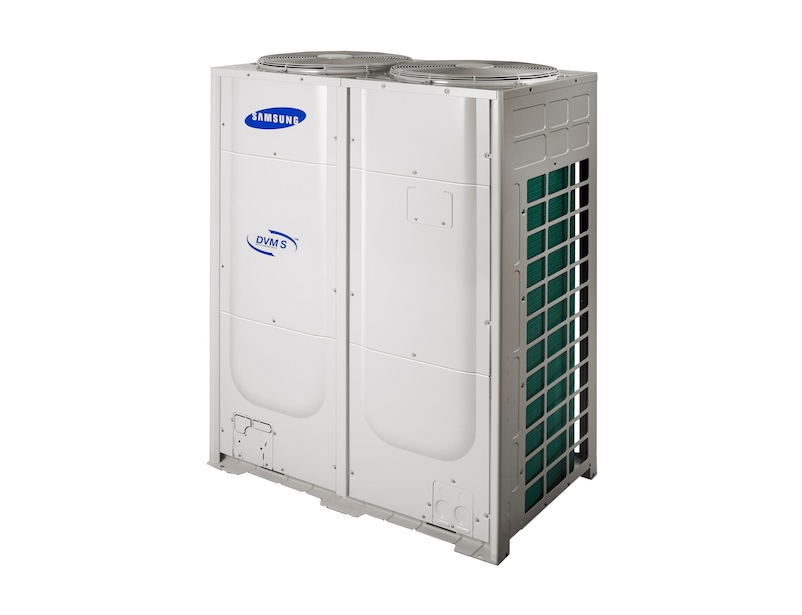

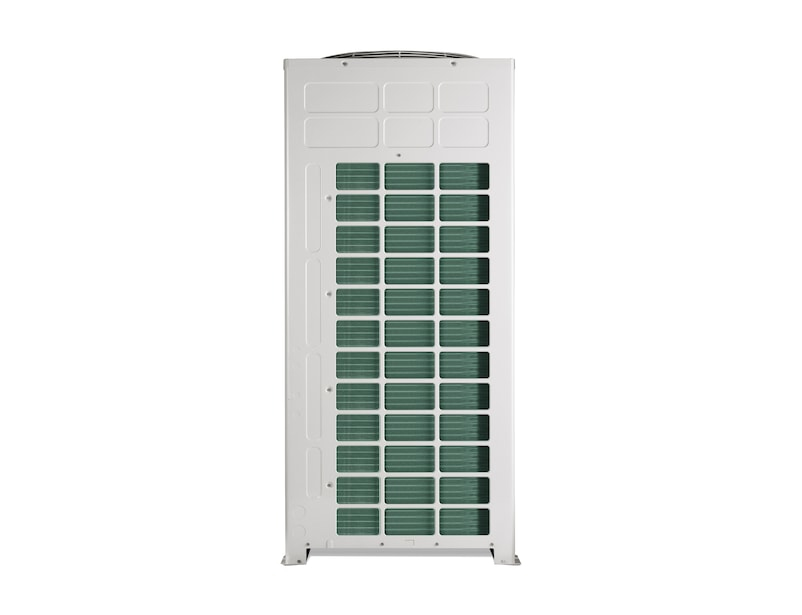

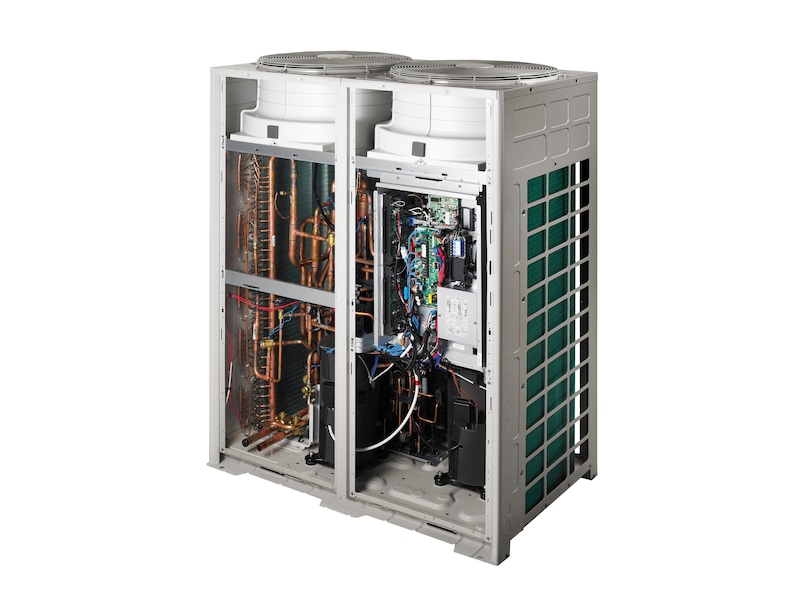

AM160FXVAGH Air conditioner outdoor unit White
Model AM160FXVAGHPart no. AM160FXVAGH/EU
33 specifications
- TypeAir conditioner outdoor unit
- ColourWhite
- Power consumption (cooling) (max)11000 W
- Outdoor unit noise level63 dB
Overview
- Type
- Air conditioner outdoor unit
- Colour
- White
- Power consumption (cooling) (max)
- 11000 W
- Outdoor unit noise level
- 63 dB
- Brand
- Samsung
- Category
- Split-System Air Conditioner
- Model
- AM160FXVAGH
- Part number
- AM160FXVAGH/EU
- Also known as
- Samsung AM160FXVAGH Air conditioner outdoor unit White
Specifications
33 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Fan, Heating |
| Inverter technology | Yes |
| Cooling energy efficiency (EER, W/W) | 4.09 |
| Heating energy efficiency (COP, W/W) | 4.35 |
| Cooling capacity in watts (max) | 45000 W |
| Heating capacity in watts (max) | 50400 W |
| Cooling capacity (nominal) | 153500 BTU/h |
| Heating capacity (nominal) | 170600 BTU/h |
| Refrigerating medium | R410A |
| Refrigerating medium weight | 7.4 kg |
| Hose length (max) | 200 m |
| Gas hose diameter | 2.86 cm |
| Liquid hose diameter | 1.27 cm |
| Smartphone/tablet remote support | Yes |
| Operating temperature (cooling) (T-T) | -5 - 48 °C |
| Operating temperature (heating) (T-T) | -20 - 24 °C |
Power
| Specification | Value |
|---|---|
| Power consumption (cooling) (max) | 11000 W |
| Power consumption (heating) (max) | 11500 W |
| AC input voltage | 380 - 415 V |
| AC input frequency | 50 Hz |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 63 dB |
| Outdoor unit sound power level | 83 dB |
| Cooling airflow (outdoor unit) | 260 m³/h |
| Outdoor unit width | 129.5 cm |
| Outdoor unit depth | 76.5 cm |
| Outdoor unit height | 169.5 cm |
| Outdoor unit weight | 278 kg |
| Outdoor unit package width | 136.3 cm |
| Outdoor unit package depth | 83.2 cm |
| Outdoor unit package height | 188.7 cm |
| Outdoor unit package weight | 297 kg |
