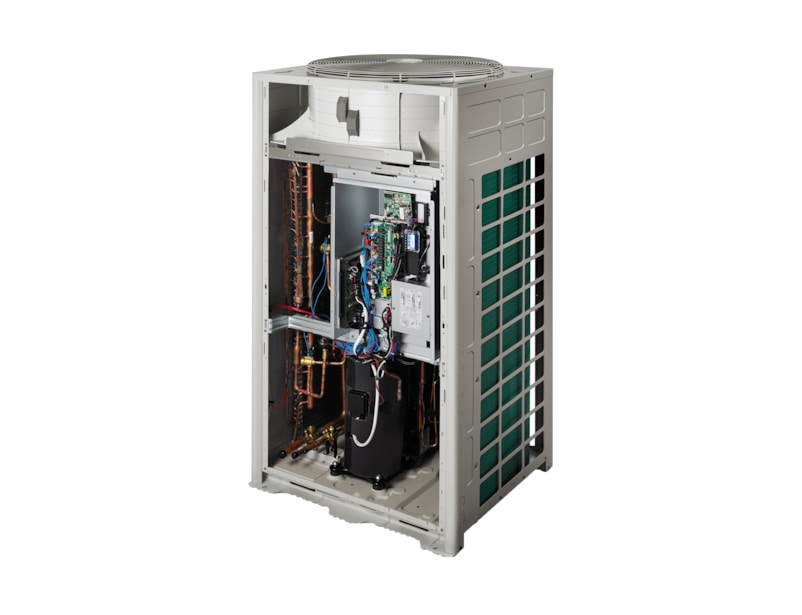

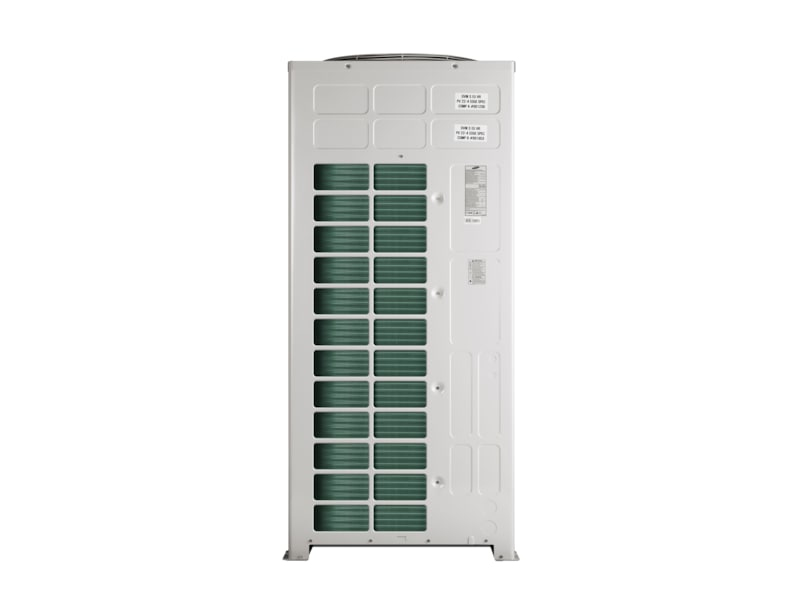

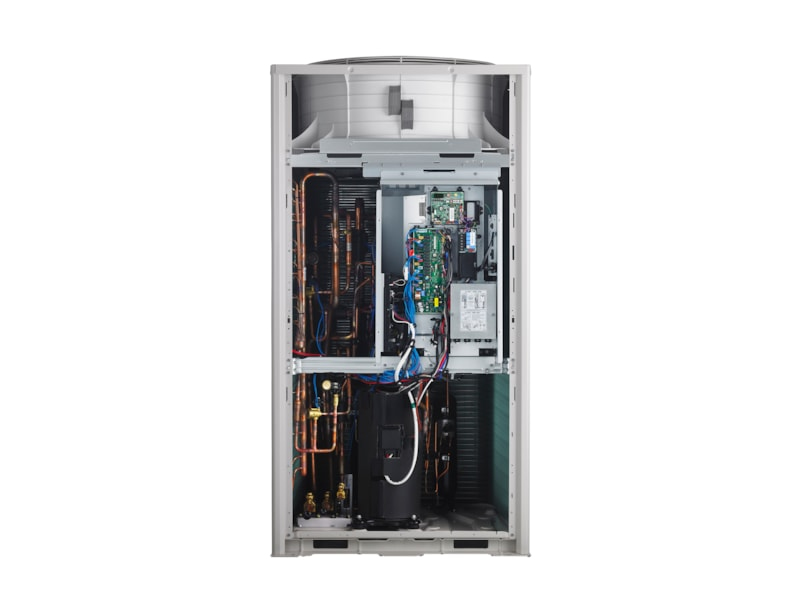

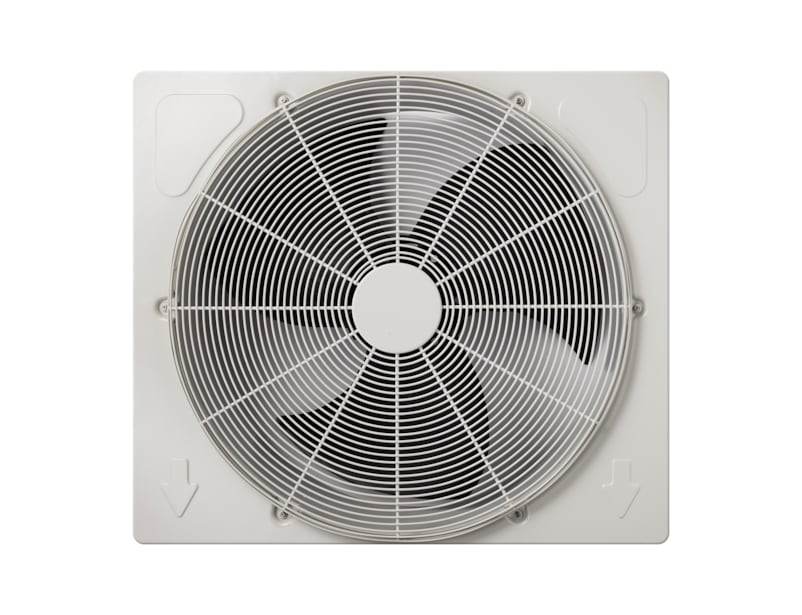

AM120FXVAGR Air conditioner outdoor unit White
Model AM120FXVAGRPart no. AM120FXVAGR/EU
34 specifications
- TypeAir conditioner outdoor unit
- ColourWhite
- Power consumption (cooling) (max)8400 W
- Outdoor unit noise level62 dB
Overview
- Type
- Air conditioner outdoor unit
- Colour
- White
- Power consumption (cooling) (max)
- 8400 W
- Outdoor unit noise level
- 62 dB
- Brand
- Samsung
- Category
- Split-System Air Conditioner
- Model
- AM120FXVAGR
- Part number
- AM120FXVAGR/EU
- Also known as
- Samsung AM120FXVAGR Air conditioner outdoor unit White
Specifications
34 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Fan, Heating |
| Inverter technology | Yes |
| Cooling energy efficiency (EER, W/W) | 4 |
| Heating energy efficiency (COP, W/W) | 4.34 |
| Cooling capacity in watts (max) | 33600 W |
| Heating capacity in watts (max) | 37800 W |
| Cooling capacity (nominal) | 114600 BTU/h |
| Heating capacity (nominal) | 129000 BTU/h |
| Refrigerating medium | R410A |
| Refrigerating medium weight | 5.5 kg |
| Hose length (max) | 200 m |
| Gas hose diameter | 2.86 cm |
| Liquid hose diameter | 1.27 cm |
| Smartphone/tablet remote support | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (cooling) (max) | 8400 W |
| Power consumption (heating) (max) | 8700 W |
| AC input voltage | 380 - 415 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 13.5 A |
| Current (heating) | 14 A |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 62 dB |
| Outdoor unit sound power level | 81 dB |
| Cooling airflow (outdoor unit) | 210 m³/h |
| Outdoor unit width | 88 cm |
| Outdoor unit depth | 76.5 cm |
| Outdoor unit height | 169.5 cm |
| Outdoor unit weight | 189.5 kg |
| Outdoor unit package width | 94.8 cm |
| Outdoor unit package depth | 83.2 cm |
| Outdoor unit package height | 188.7 cm |
| Outdoor unit package weight | 205.5 kg |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
