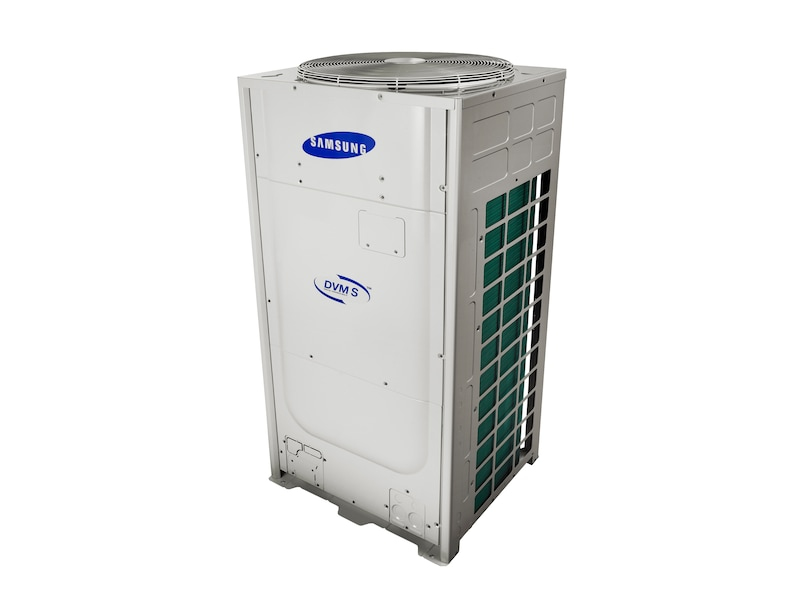

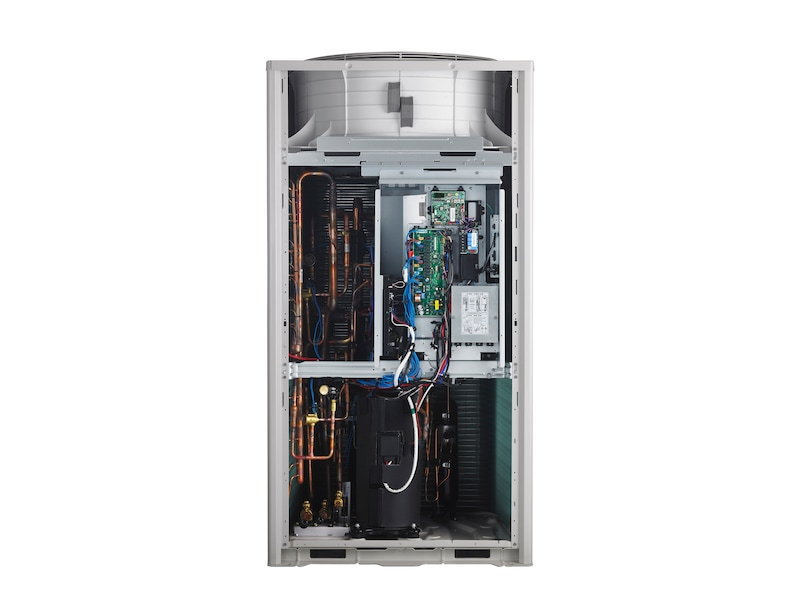

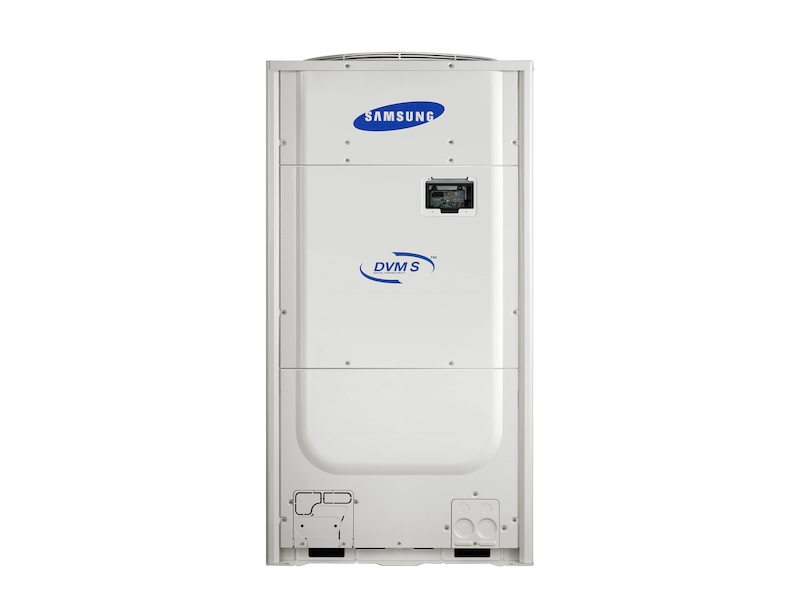

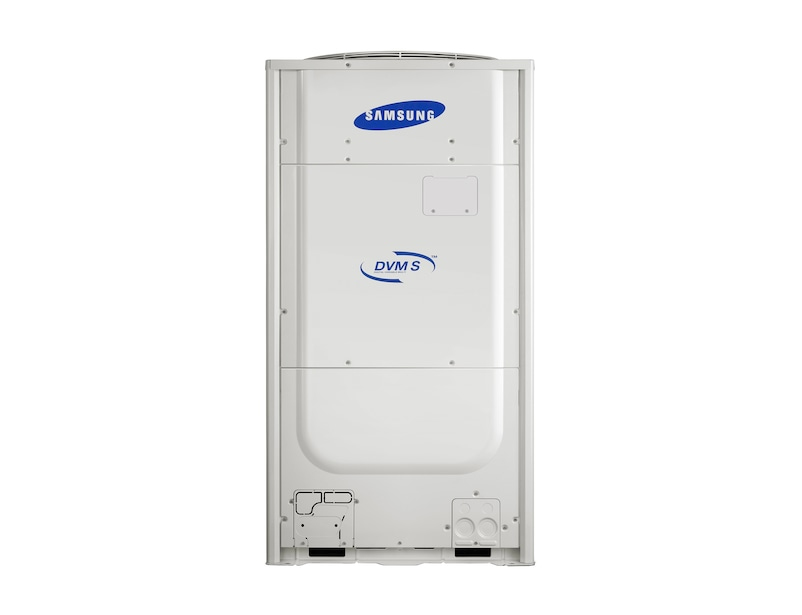

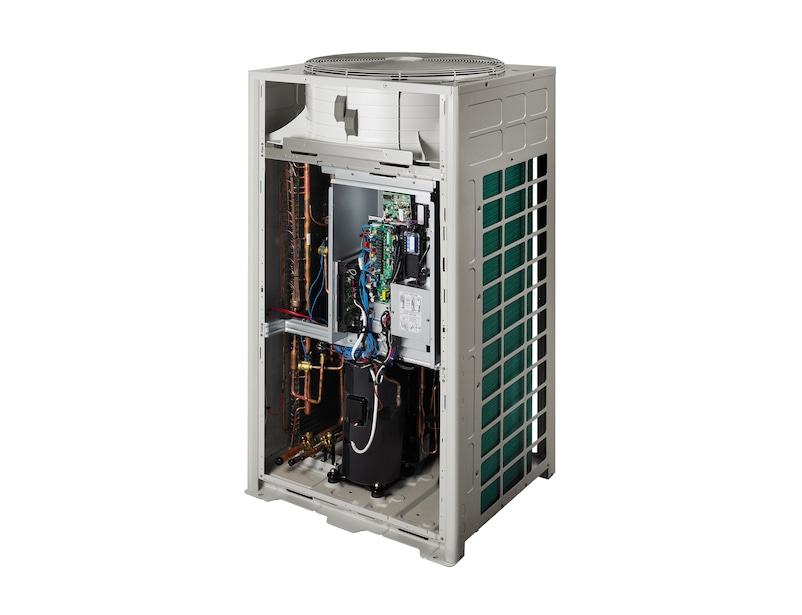

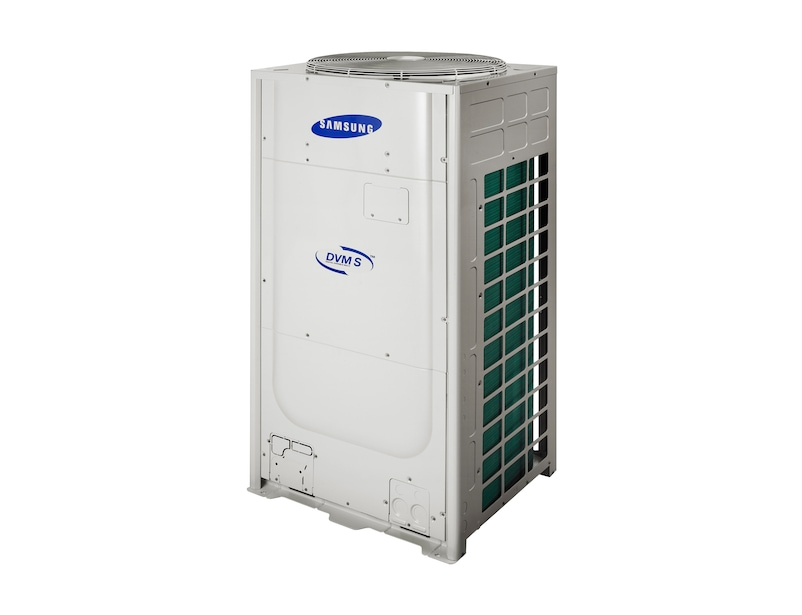

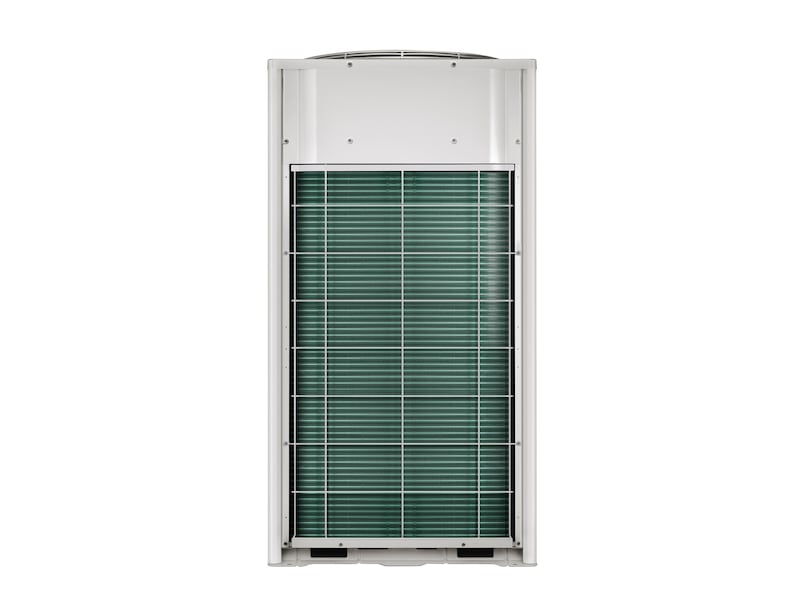

AM100FXVAGH Air conditioner outdoor unit White
Model AM100FXVAGHPart no. AM100FXVAGH/EU
35 specifications
- TypeAir conditioner outdoor unit
- ColourWhite
- Power consumption (cooling) (max)6.8 W
- Outdoor unit noise level58 dB
Overview
- Type
- Air conditioner outdoor unit
- Colour
- White
- Power consumption (cooling) (max)
- 6.8 W
- Outdoor unit noise level
- 58 dB
- Brand
- Samsung
- Category
- Split-System Air Conditioner
- Model
- AM100FXVAGH
- Part number
- AM100FXVAGH/EU
- Also known as
- Samsung AM100FXVAGH Air conditioner outdoor unit White
Specifications
35 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Fan, Heating |
| Inverter technology | Yes |
| Cooling energy efficiency (EER, W/W) | 4.12 |
| Heating energy efficiency (COP, W/W) | 4.7 |
| Cooling capacity in watts (nominal) | 28000 W |
| Heating capacity in watts (max) | 31500 W |
| Cooling capacity (nominal) | 95500 BTU/h |
| Heating capacity (nominal) | 107500 BTU/h |
| Refrigerating medium | R410A |
| Refrigerating medium weight | 5.2 kg |
| Hose length (max) | 200 m |
| Gas hose diameter | 2.22 cm |
| Liquid hose diameter | 9.52 mm |
| Operating temperature (cooling) (T-T) | -5 - 48 °C |
| Operating temperature (heating) (T-T) | -20 - 24 °C |
Power
| Specification | Value |
|---|---|
| Power consumption (cooling) (max) | 6.8 W |
| Power consumption (heating) (max) | 6.7 W |
| AC input voltage | 380 - 415 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 10.9 A |
| Current (heating) | 10.7 A |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 58 dB |
| Outdoor unit sound power level | 79 dB |
| Cooling airflow (outdoor unit) | 145 m³/h |
| Outdoor units quantity | 1 |
| Outdoor unit width | 88 cm |
| Outdoor unit depth | 76.5 cm |
| Outdoor unit height | 169.5 cm |
| Outdoor unit weight | 190 kg |
| Outdoor unit package width | 94.8 cm |
| Outdoor unit package depth | 83.2 cm |
| Outdoor unit package height | 188.7 cm |
| Outdoor unit package weight | 206 kg |
