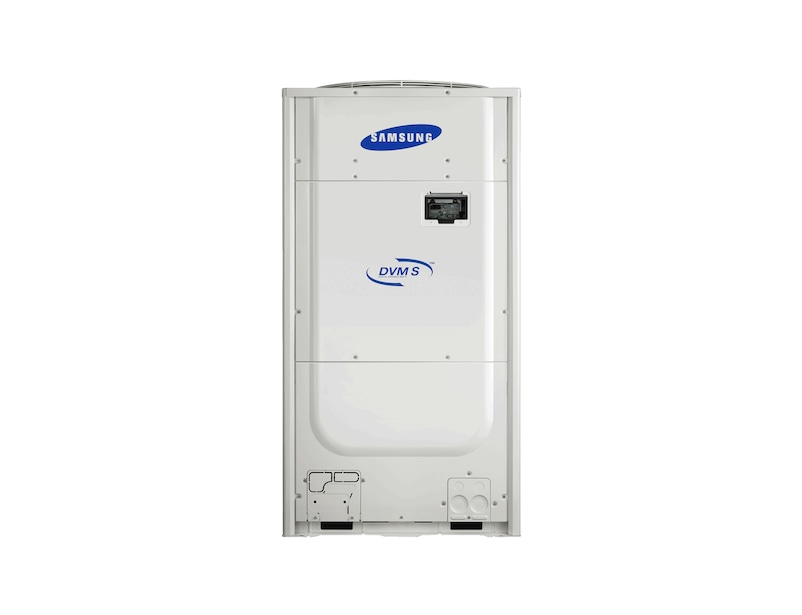

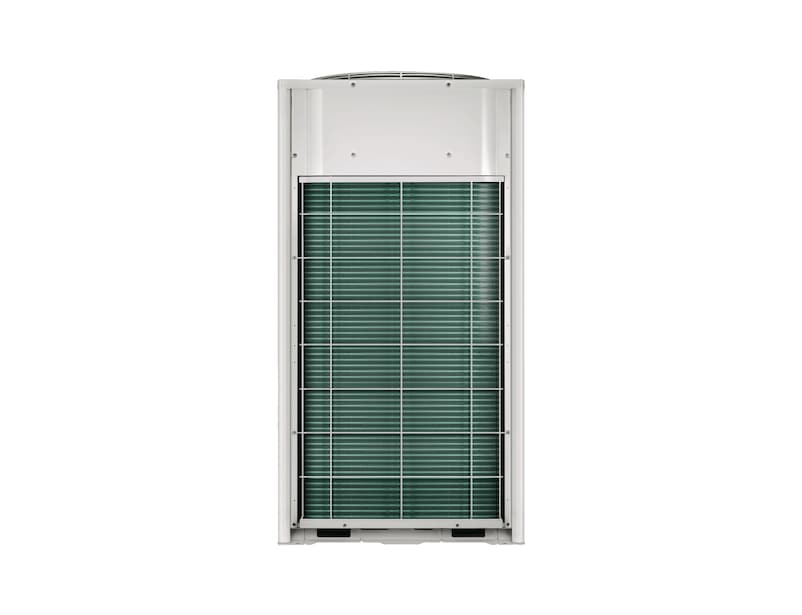

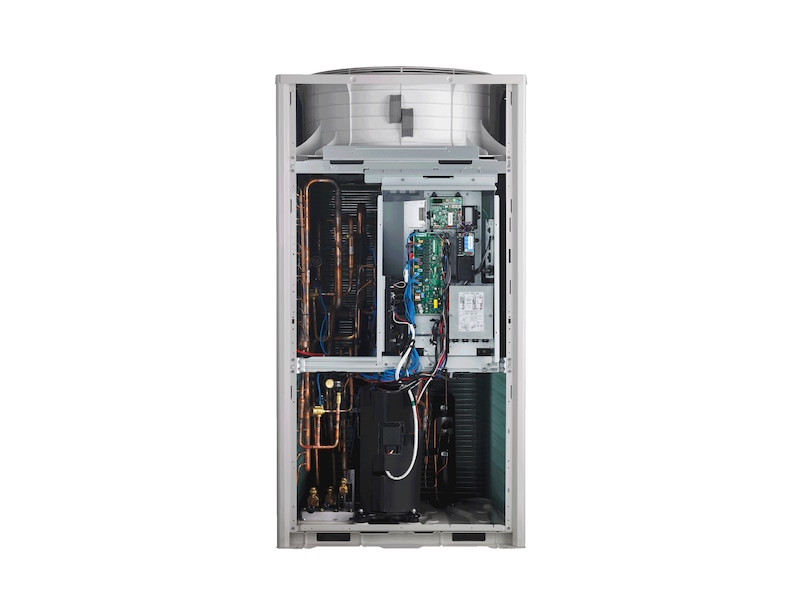

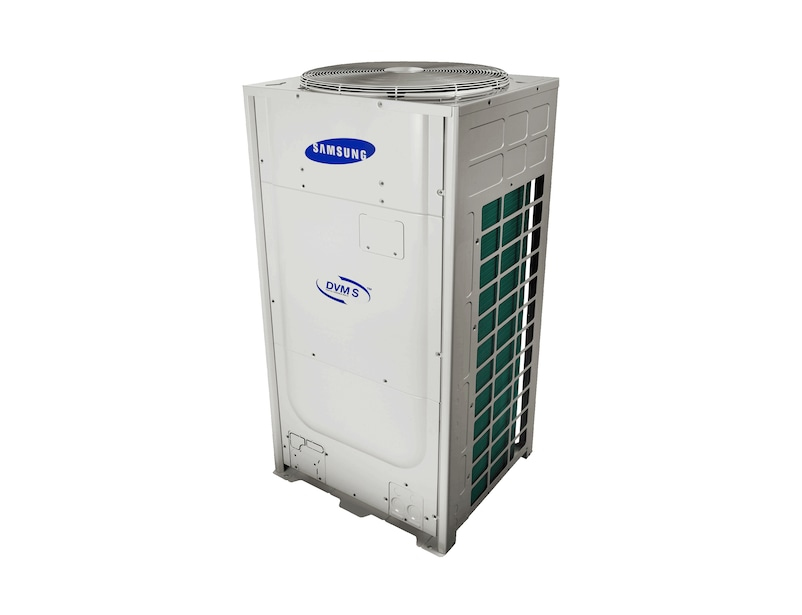

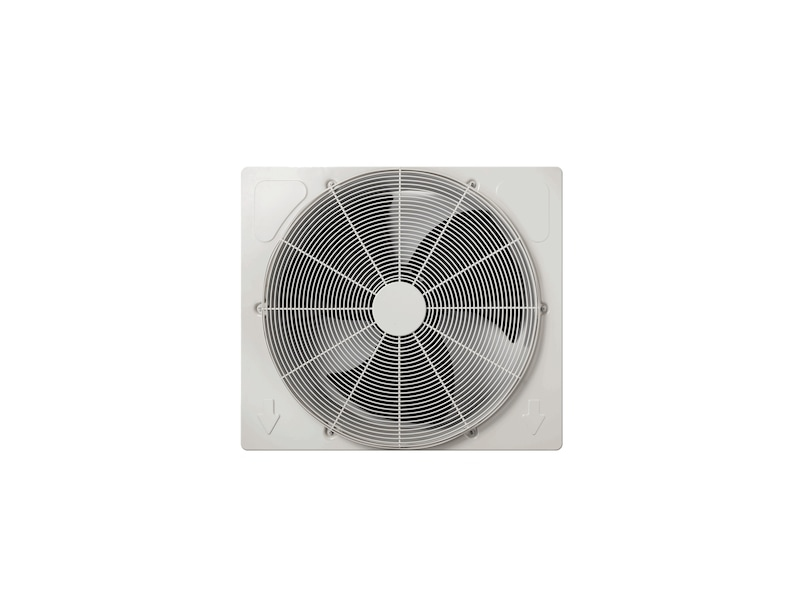

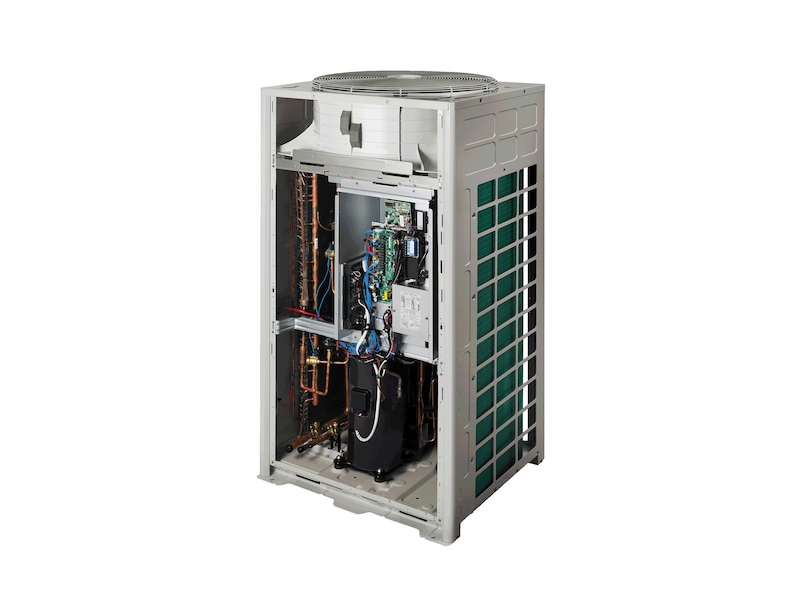

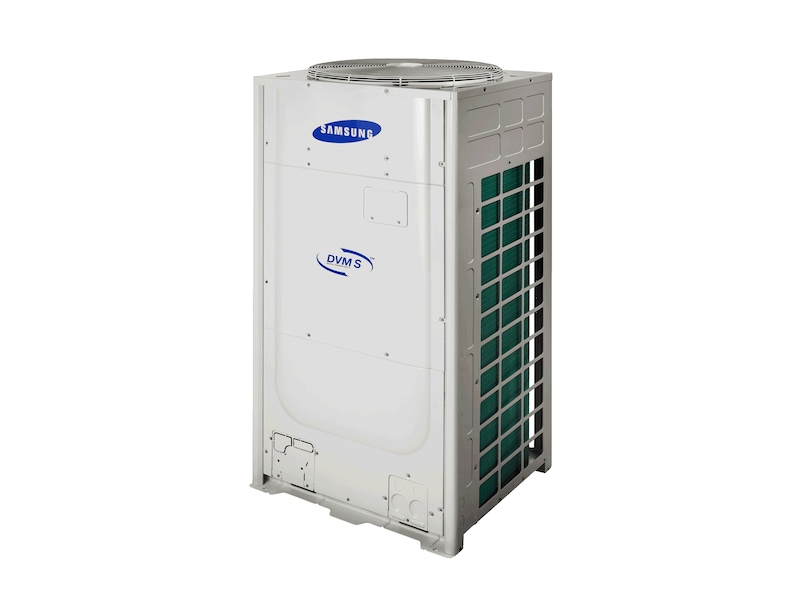

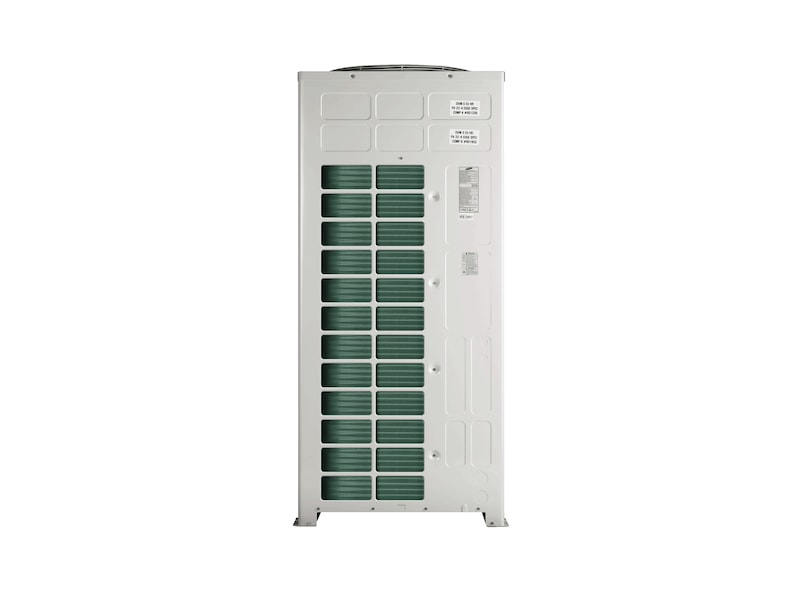

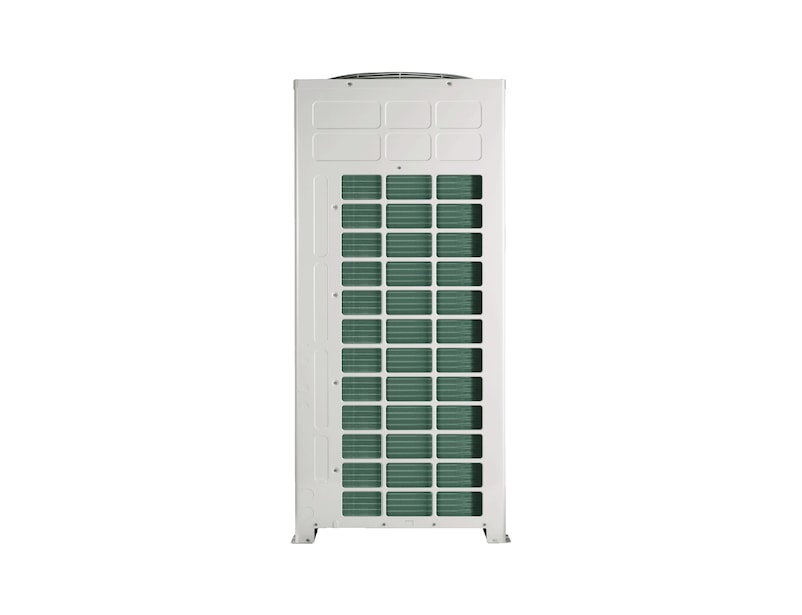

AM080FXVAGH Air conditioner outdoor unit White
Model AM080FXVAGHPart no. AM080FXVAGH/EU
32 specifications
- TypeAir conditioner outdoor unit
- ColourWhite
- Power consumption (cooling) (max)5000 W
- Outdoor unit noise level57 dB
Overview
- Type
- Air conditioner outdoor unit
- Colour
- White
- Power consumption (cooling) (max)
- 5000 W
- Outdoor unit noise level
- 57 dB
- Brand
- Samsung
- Category
- Split-System Air Conditioner
- Model
- AM080FXVAGH
- Part number
- AM080FXVAGH/EU
- Also known as
- Samsung AM080FXVAGH Air conditioner outdoor unit White
Specifications
32 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Fan, Heating |
| Inverter technology | Yes |
| Cooling energy efficiency (EER, W/W) | 4.48 |
| Heating energy efficiency (COP, W/W) | 4.94 |
| Cooling capacity in watts (nominal) | 22400 W |
| Heating capacity in watts (max) | 25200 W |
| Cooling capacity (nominal) | 76400 BTU/h |
| Heating capacity (nominal) | 86000 BTU/h |
| Refrigerating medium | R410A |
| Refrigerating medium weight | 5.5 kg |
| Compressor type | Twin Rotary |
| Hose length (max) | 200 m |
| Gas hose diameter | 1.91 cm |
| Liquid hose diameter | 9.52 mm |
| Operating temperature (cooling) (T-T) | -5 - 48 °C |
| Operating temperature (heating) (T-T) | -20 - 24 °C |
Power
| Specification | Value |
|---|---|
| Power consumption (cooling) (max) | 5000 W |
| Power consumption (heating) (max) | 5100 W |
| AC input voltage | 380 - 415 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 8 A |
| Current (heating) | 8.2 A |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 57 dB |
| Outdoor unit sound power level | 77 dB |
| Cooling airflow (outdoor unit) | 173 m³/h |
| Outdoor units quantity | 1 |
| Outdoor unit width | 88 cm |
| Outdoor unit depth | 76.5 cm |
| Outdoor unit height | 169.5 cm |
| Outdoor unit weight | 190 kg |
