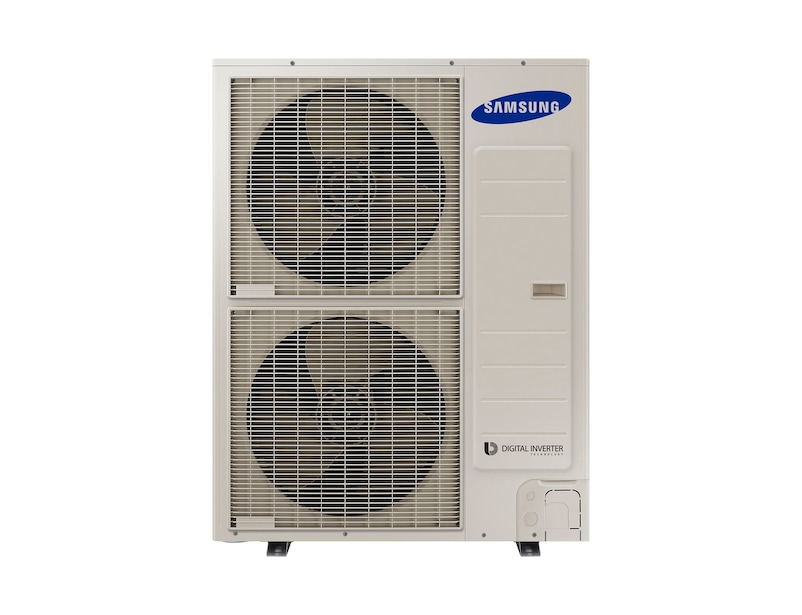

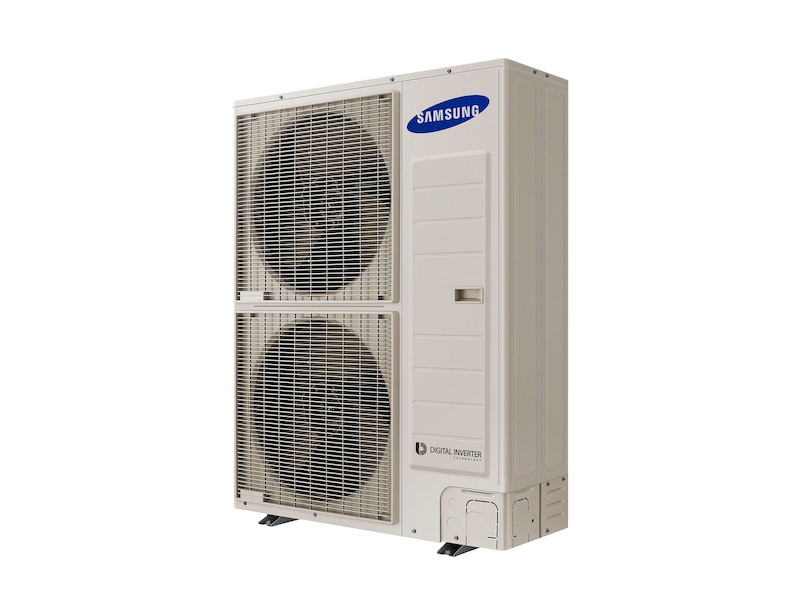

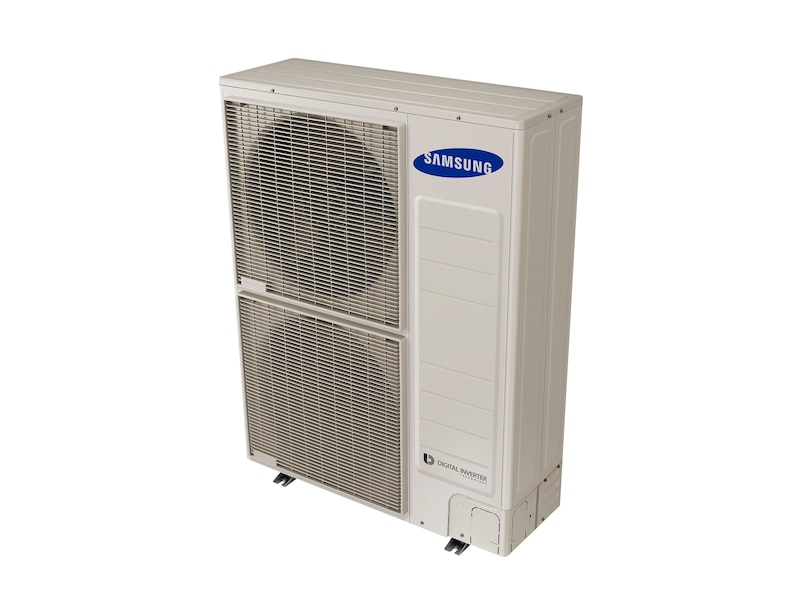

AM040FXMDGH Air conditioner outdoor unit White
Model AM040FXMDGHPart no. AM040FXMDGH/EU
26 specifications
- TypeAir conditioner outdoor unit
- ColourWhite
- Power consumption (cooling) (max)2890 W
- Outdoor unit noise level50 dB
Overview
- Type
- Air conditioner outdoor unit
- Colour
- White
- Power consumption (cooling) (max)
- 2890 W
- Outdoor unit noise level
- 50 dB
- Brand
- Samsung
- Category
- Split-System Air Conditioner
- Model
- AM040FXMDGH
- Part number
- AM040FXMDGH/EU
- Also known as
- Samsung AM040FXMDGH Air conditioner outdoor unit White
Specifications
26 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Cooling energy efficiency (EER, W/W) | 4.19 |
| Heating energy efficiency (COP, W/W) | 4.47 |
| Cooling capacity in watts (nominal) | 12100 W |
| Heating capacity in watts (max) | 13510 W |
| Cooling capacity (nominal) | 41300 BTU/h |
| Heating capacity (nominal) | 46100 BTU/h |
| Refrigerating medium | R410A |
| Refrigerating medium weight | 3.2 kg |
| Compressor type | Twin Rotary |
| Hose length (min) | 150 m |
| Hose length (max) | 175 m |
| Gas hose diameter | 1.59 cm |
| Liquid hose diameter | 9.52 mm |
| Operating temperature (cooling) (T-T) | -5 - 48 °C |
| Operating temperature (heating) (T-T) | -20 - 26 °C |
Power
| Specification | Value |
|---|---|
| Power consumption (cooling) (max) | 2890 W |
| Power consumption (heating) (max) | 3020 W |
| AC input voltage | 380 - 415 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 4.8 A |
| Current (heating) | 5 A |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 50 dB |
| Outdoor unit sound power level | 66 dB |
