AJ040NCJ2EG + AR09NXCXAWKNEU + AR012NXCXAWKNEU

Model AJ040NCJ2EG + AR09NXCXAWKNEU + AR012NXCXAWKNEUPart no. KITWPURE9+12

69 specifications

Overview

Brand: Samsung
Category: Split-System Air Conditioner
Model: AJ040NCJ2EG + AR09NXCXAWKNEU + AR012NXCXAWKNEU
Part number: KITWPURE9+12
Also known as: Samsung AJ040NCJ2EG + AR09NXCXAWKNEU + AR012NXCXAWKNEU Split system White

69 specifications in 7 groups

Specification	Value
Type	Split system
Multi-split	Yes
Product colour	White
Air conditioner functions	Cooling, Heating
Inverter technology	Yes
Seasonal efficiency rating (cooling) (SEER)	8.51
Cooling energy efficiency (EER, W/W)	4.21
Heating energy efficiency (COP, W/W)	4.42
Cooling capacity in watts (nominal)	4000 W
Cooling capacity in watts (min)	1300 W
Cooling capacity in watts (max)	4700 W
Heating capacity in watts (min)	1000 W
Heating capacity in watts (max)	4700 W
Built-in display	Yes
Timer	Yes
Refrigerating medium	R32
Refrigerating medium weight	980 g
Compressor type	Twin Rotary
Hose length (max)	25 m
Gas hose diameter	9.52 mm
Drain hose diameter	1.8 cm
Liquid hose diameter	6.35 mm
Air filter	Yes
Remotely operated	Yes
Operating temperature (cooling) (T-T)	-5 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Warmer heating season)	A++
Hourly energy consumption (cooling)	0.95 kWh
Hourly energy consumption (heating)	0.95 kWh
Annual energy consumption (cooling)	165 kWh
Annual energy consumption (heating) (Warmer heating season)	927 kWh
Power consumption (cooling) (min)	350 W
Power consumption (cooling) (max)	1300 W
Power consumption (heating) (min)	280 W
Power consumption (heating) (max)	1220 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current (cooling)	5.9 A
Current (heating)	5.6 A
Design load (heating) (Warmer heating season)	3.05 kW
Energy efficiency class (cooling) (legacy scale)	A+++

Specification	Value
Wi-Fi	Yes

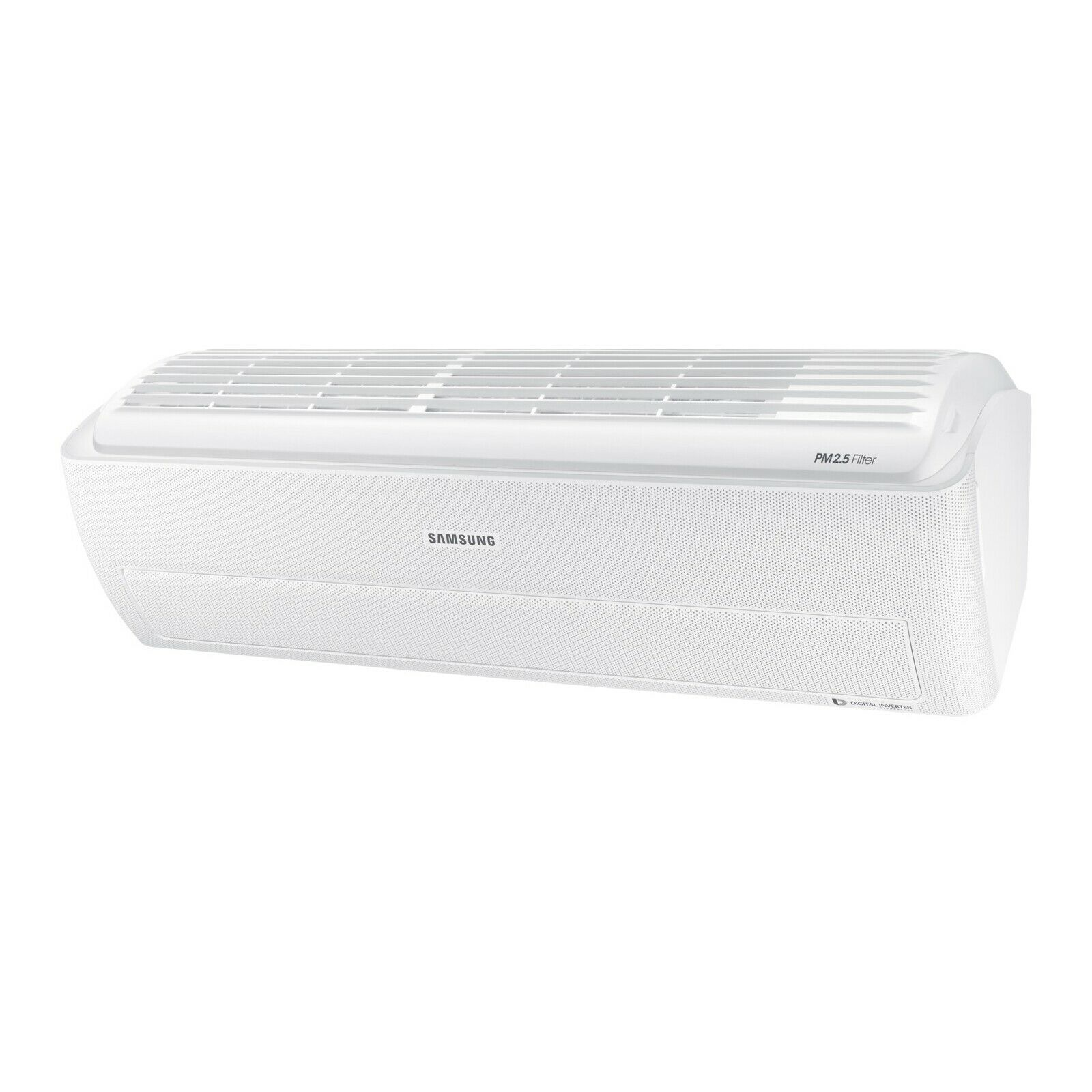

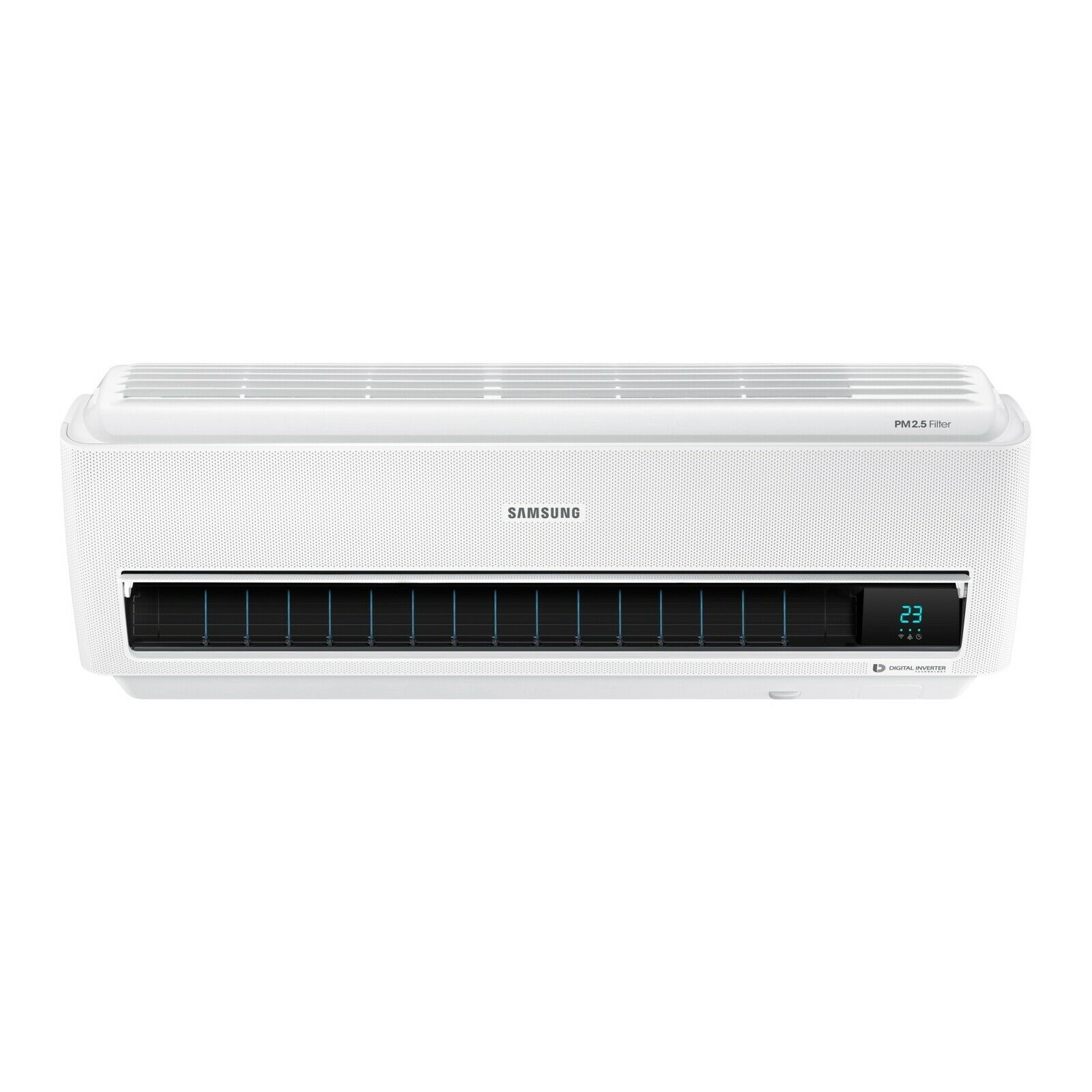

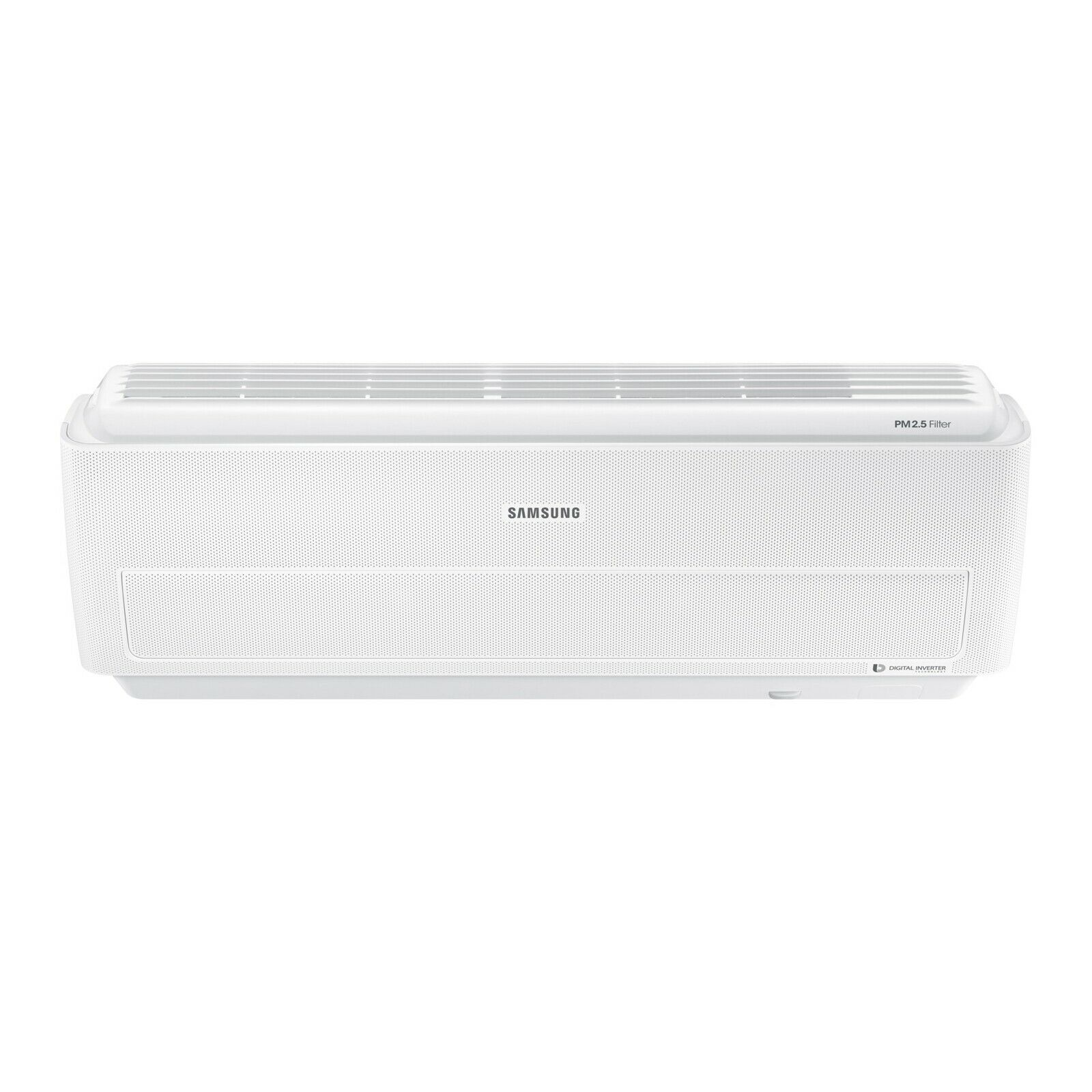

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	22 dB
Indoor unit noise level (high speed)	38 dB
Indoor unit sound power level	58 dB
Indoor units quantity	2
Indoor unit width	82.8 cm
Indoor unit depth	26.5 cm
Indoor unit height	29.5 cm
Indoor unit weight	11.3 kg
Indoor unit package width	88.6 cm
Indoor unit package depth	33.5 cm
Indoor unit package height	31.7 cm
Indoor unit package weight	13.9 kg

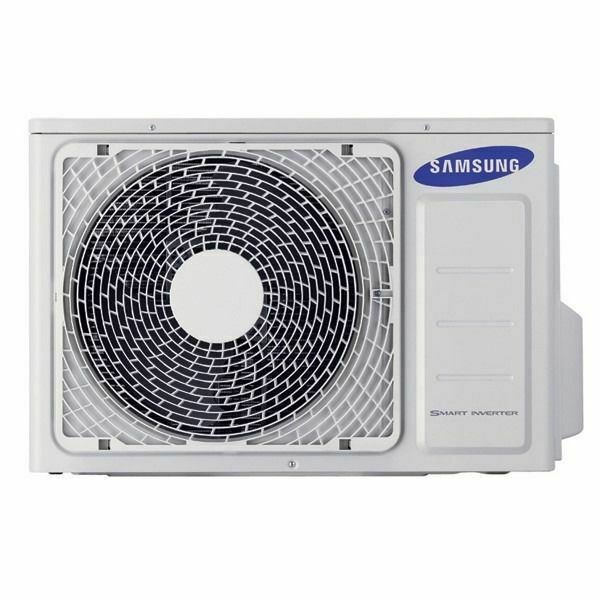

Specification	Value
Outdoor unit noise level	46 dB
Outdoor unit sound power level	60 dB
Cooling airflow (outdoor unit)	1782 m³/h
Outdoor units quantity	1
Outdoor unit width	79 cm
Outdoor unit depth	28.5 cm
Outdoor unit height	54.8 cm
Outdoor unit weight	32 kg
Outdoor unit package width	91.3 cm
Outdoor unit package depth	37.1 cm
Outdoor unit package height	62.2 cm
Outdoor unit package weight	34 kg
