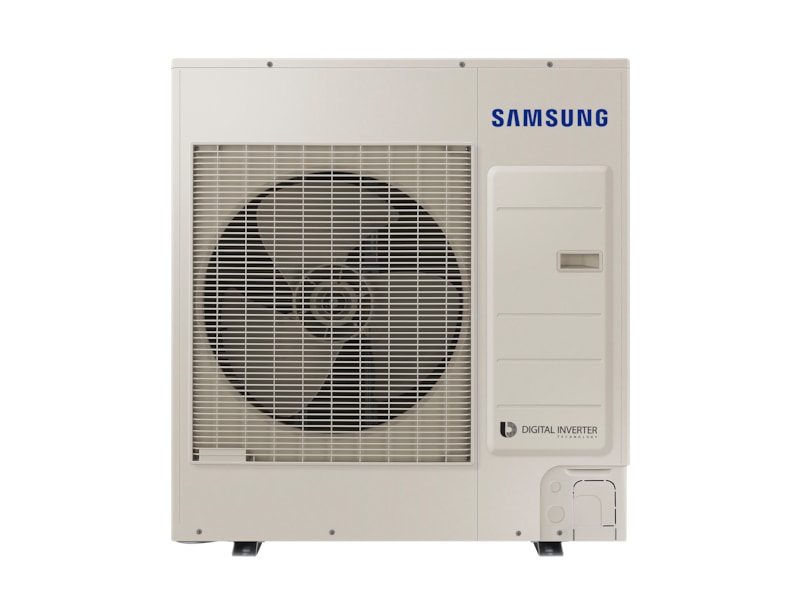

AC100HCADKH/EU air conditioner Air conditioner outdoor unit White

Model AC100HCADKH/EUEAN 8806085883635

61 specifications

Overview

Brand: Samsung
Category: Split-System Air Conditioner
Model: AC100HCADKH/EU
Part number: AC100HCADKH/EU
EAN / UPC: 8806085883635
Also known as: Samsung AC100HCADKH/EU air conditioner Air conditioner outdoor unit White

61 specifications in 4 groups

Specification	Value
Type	Air conditioner outdoor unit
Product colour	White
Air conditioner functions	Cooling, Fan, Heating
Inverter technology	Yes
Seasonal efficiency rating (cooling) (SEER)	5.6
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	4
Cooling energy efficiency (EER, W/W)	3.11
Heating energy efficiency (COP, W/W)	3.61
Cooling capacity in watts (nominal)	10000 W
Cooling capacity in watts (min)	2800 W
Cooling capacity in watts (max)	12000 W
Heating capacity in watts (min)	2900 W
Heating capacity in watts (max)	15500 W
Cooling capacity (nominal)	34100 BTU/h
Cooling capacity (min)	9600 BTU/h
Cooling capacity (max)	40900 BTU/h
Heating capacity (nominal)	38200 BTU/h
Heating capacity (min)	9900 BTU/h
Heating capacity (max)	52900 BTU/h
Refrigerating medium	R410A
Refrigerating medium weight	2.6 kg
Compressor type	Rotary
Compressor motor type	Brushless
Hose length (max)	50 m
Gas hose diameter	1.59 cm
Liquid hose diameter	9.52 mm
Air filter	Yes
Anti-bacterial filter	Yes
Cord length	2.5 m
Remotely operated	Yes
Smartphone/tablet remote support	Yes
Operating temperature (cooling) (T-T)	-15 - 50 °C
Operating temperature (heating) (T-T)	-20 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+
Hourly energy consumption (cooling)	10 kWh
Hourly energy consumption (heating)	6.8 kWh
Annual energy consumption (cooling)	625 kWh
Annual energy consumption (heating) (Average heating season)	2380 kWh
Power consumption (cooling) (min)	750 W
Power consumption (cooling) (max)	5000 W
Power consumption (heating) (min)	650 W
Power consumption (heating) (max)	5500 W
AC input voltage	220-240 V
AC input frequency	50 Hz
Current (cooling)	21.5 A
Current (heating)	24 A
Energy efficiency scale	A+ to D
Energy efficiency class (cooling) (legacy scale)	A+

Specification	Value
Wi-Fi	Yes

Specification	Value
Outdoor unit noise level	52 dB
Outdoor unit sound power level	69 dB
Cooling airflow (outdoor unit)	68 m³/h
Outdoor units quantity	1
Outdoor unit width	94 cm
Outdoor unit depth	33 cm
Outdoor unit height	99.8 cm
Outdoor unit weight	70 kg
Outdoor unit package width	99.5 cm
Outdoor unit package depth	42.6 cm
Outdoor unit package height	109.6 cm
Outdoor unit package weight	74 kg
