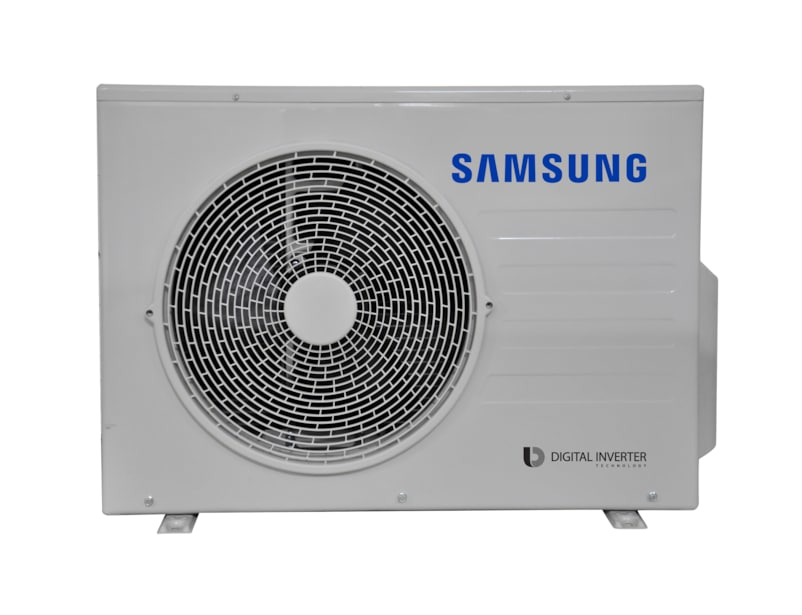

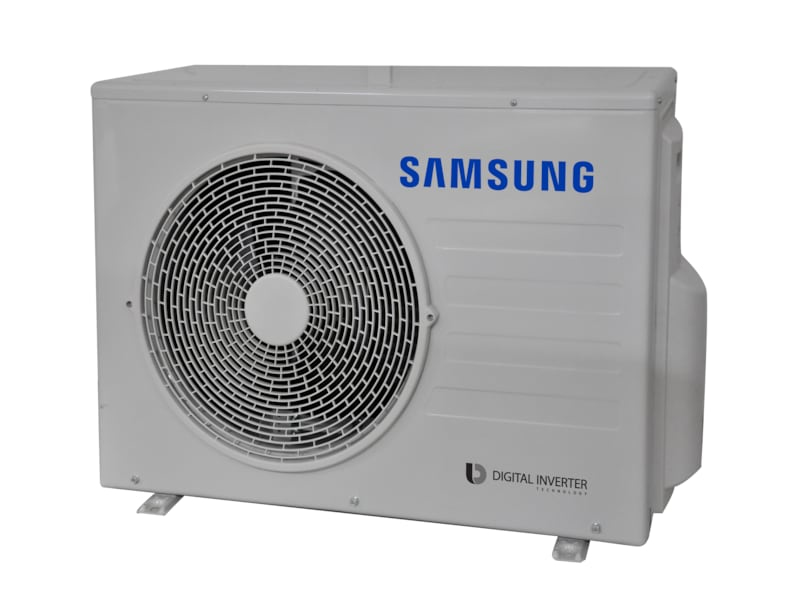

AC052HCADKH/EU air conditioner Air conditioner outdoor unit White

Model AC052HCADKH/EUEAN 8806086031417

60 specifications

Overview

Brand: Samsung
Category: Split-System Air Conditioner
Model: AC052HCADKH/EU
Part number: AC052HCADKH/EU
EAN / UPC: 8806086031417
Also known as: Samsung AC052HCADKH/EU air conditioner Air conditioner outdoor unit White

60 specifications in 4 groups

Specification	Value
Type	Air conditioner outdoor unit
Product colour	White
Air conditioner functions	Cooling, Fan, Heating
Inverter technology	Yes
Seasonal efficiency rating (cooling) (SEER)	6.1
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Cooling capacity in watts (nominal)	5000 W
Cooling capacity in watts (min)	1200 W
Cooling capacity in watts (max)	6000 W
Heating capacity in watts (min)	1010 W
Heating capacity in watts (max)	7200 W
Cooling capacity (nominal)	17100 BTU/h
Cooling capacity (min)	4100 BTU/h
Cooling capacity (max)	20500 BTU/h
Heating capacity (nominal)	20500 BTU/h
Heating capacity (min)	3800 BTU/h
Heating capacity (max)	24600 BTU/h
Refrigerating medium	R410A
Refrigerating medium weight	1.3 kg
Compressor type	Rotary
Compressor motor type	Brushless
Hose length (max)	30 m
Gas hose diameter	1.27 cm
Liquid hose diameter	6.35 mm
Air filter	Yes
Anti-bacterial filter	Yes
Cord length	2.5 m
Remotely operated	Yes
Smartphone/tablet remote support	Yes
Operating temperature (cooling) (T-T)	-15 - 50 °C
Operating temperature (heating) (T-T)	-20 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A
Hourly energy consumption (cooling)	5 kWh
Hourly energy consumption (heating)	3.6 kWh
Annual energy consumption (cooling)	287 kWh
Annual energy consumption (heating) (Average heating season)	1326 kWh
Power consumption (cooling) (min)	350 W
Power consumption (cooling) (max)	2200 W
Power consumption (heating) (min)	260 W
Power consumption (heating) (max)	2700 W
AC input voltage	220-240 V
AC input frequency	50 Hz
Current (cooling)	10 A
Current (heating)	12 A
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Wi-Fi	Yes

Specification	Value
Outdoor unit noise level	48 dB
Outdoor unit sound power level	63 dB
Cooling airflow (outdoor unit)	44 m³/h
Outdoor units quantity	1
Outdoor unit width	88 cm
Outdoor unit depth	31 cm
Outdoor unit height	63.8 cm
Outdoor unit weight	45 kg
Outdoor unit package width	102.4 cm
Outdoor unit package depth	41.4 cm
Outdoor unit package height	75 cm
Outdoor unit package weight	48 kg
