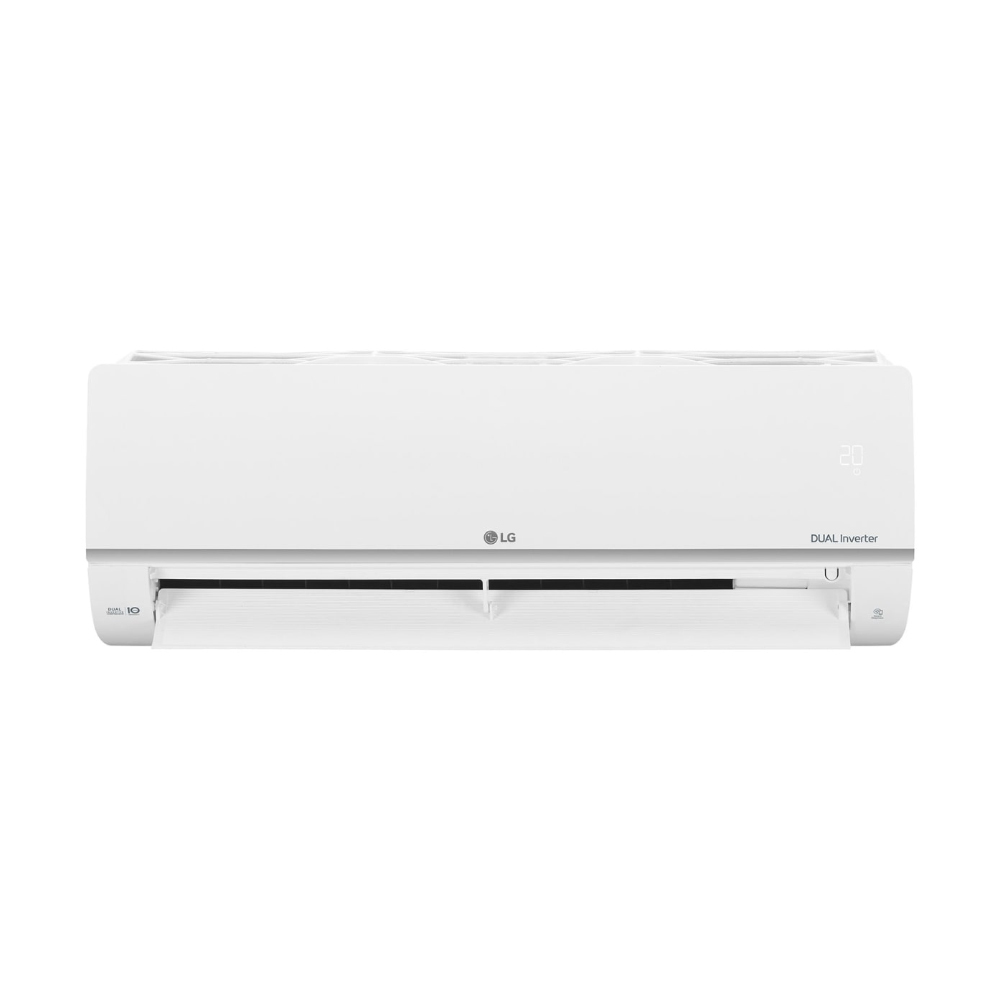

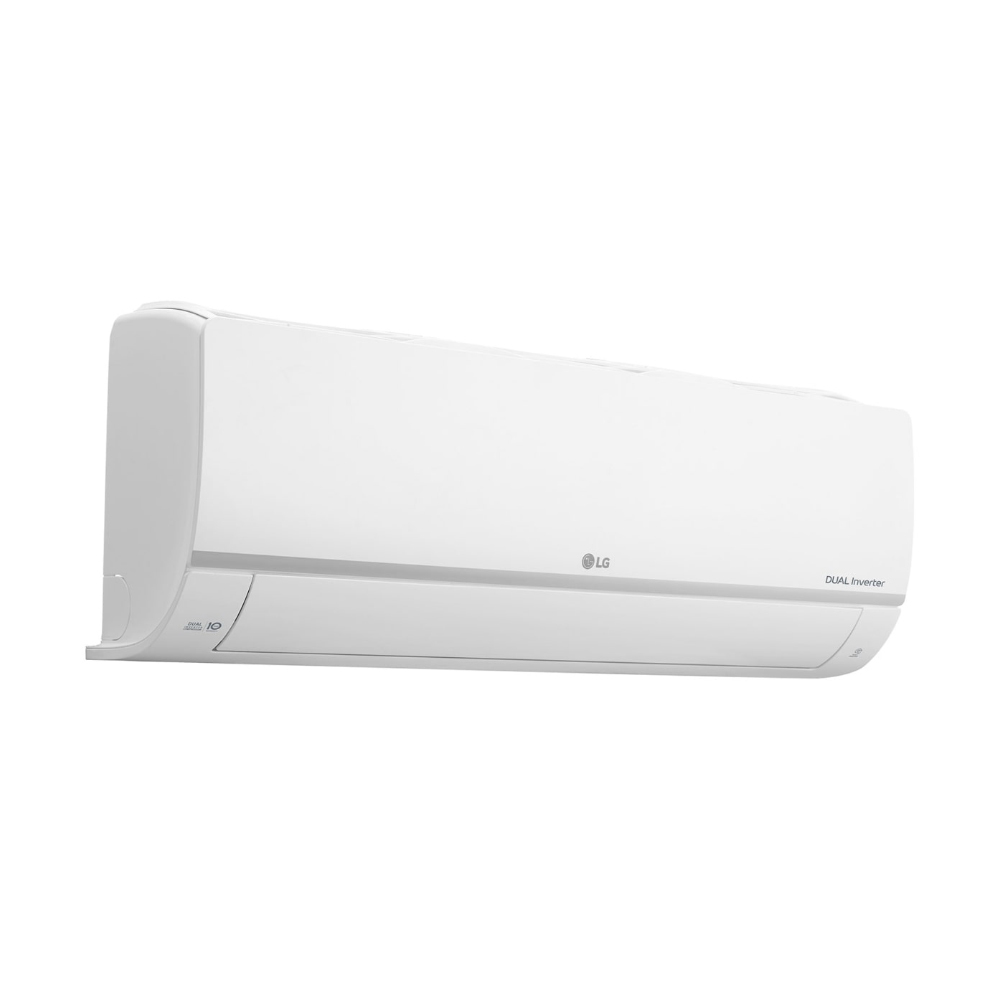

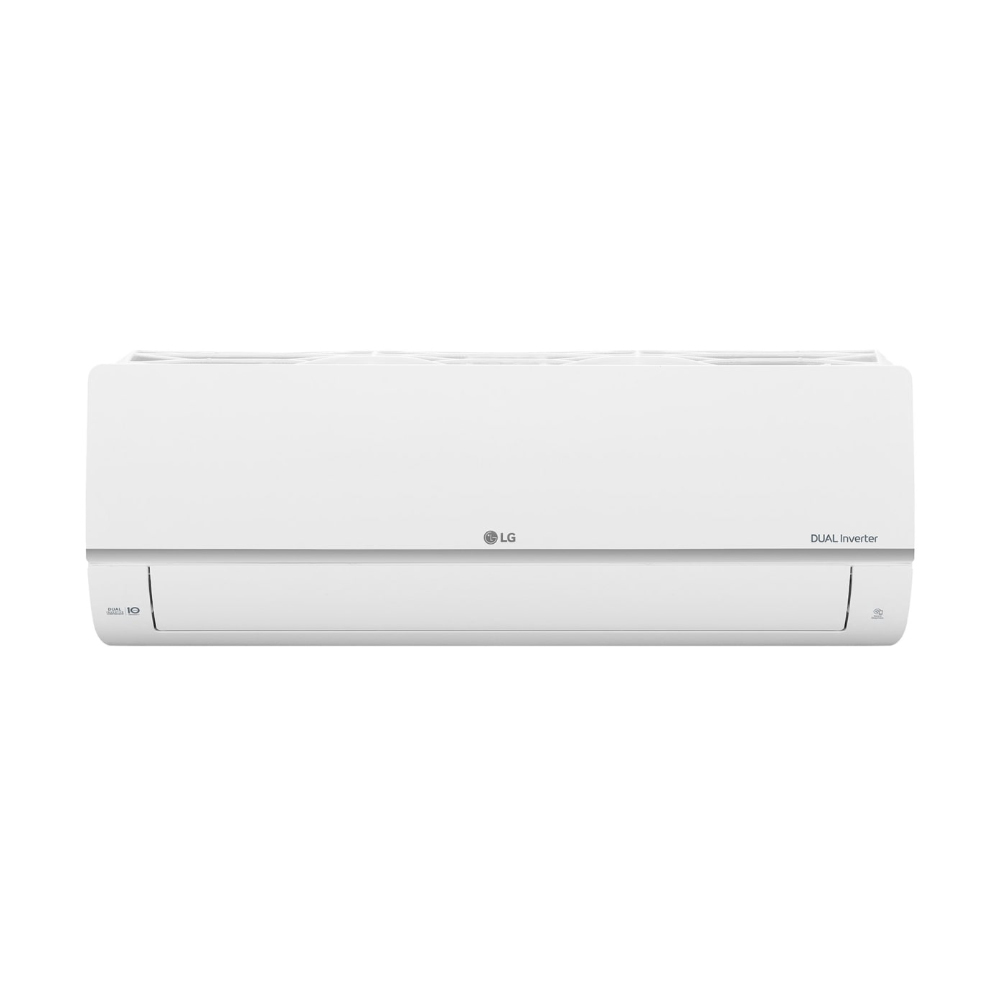

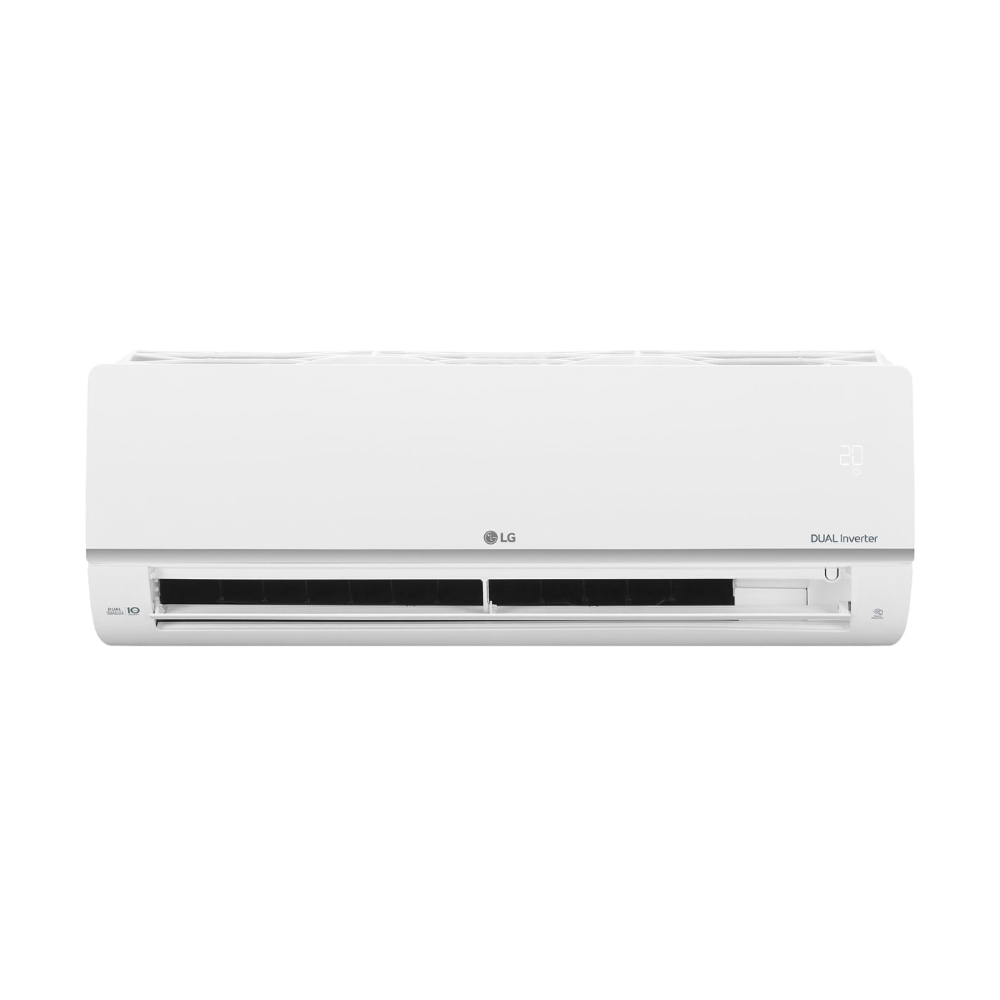

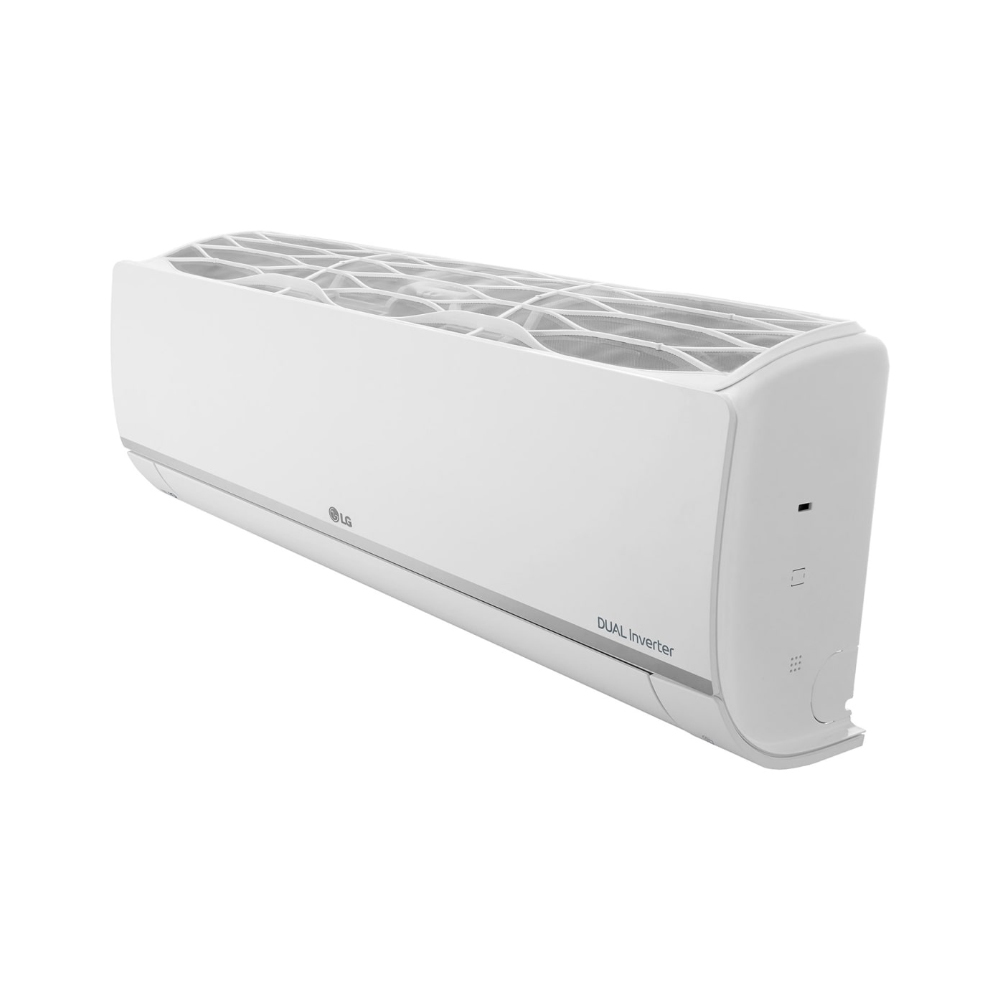

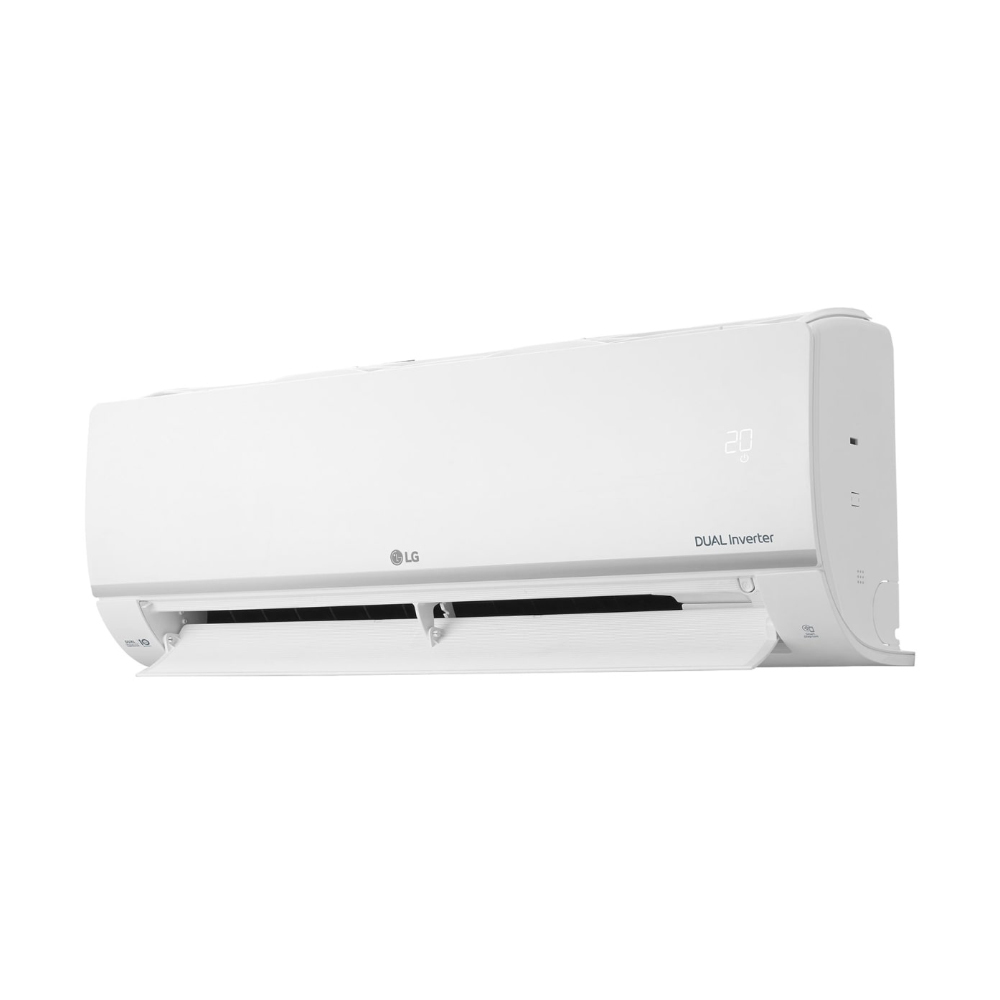

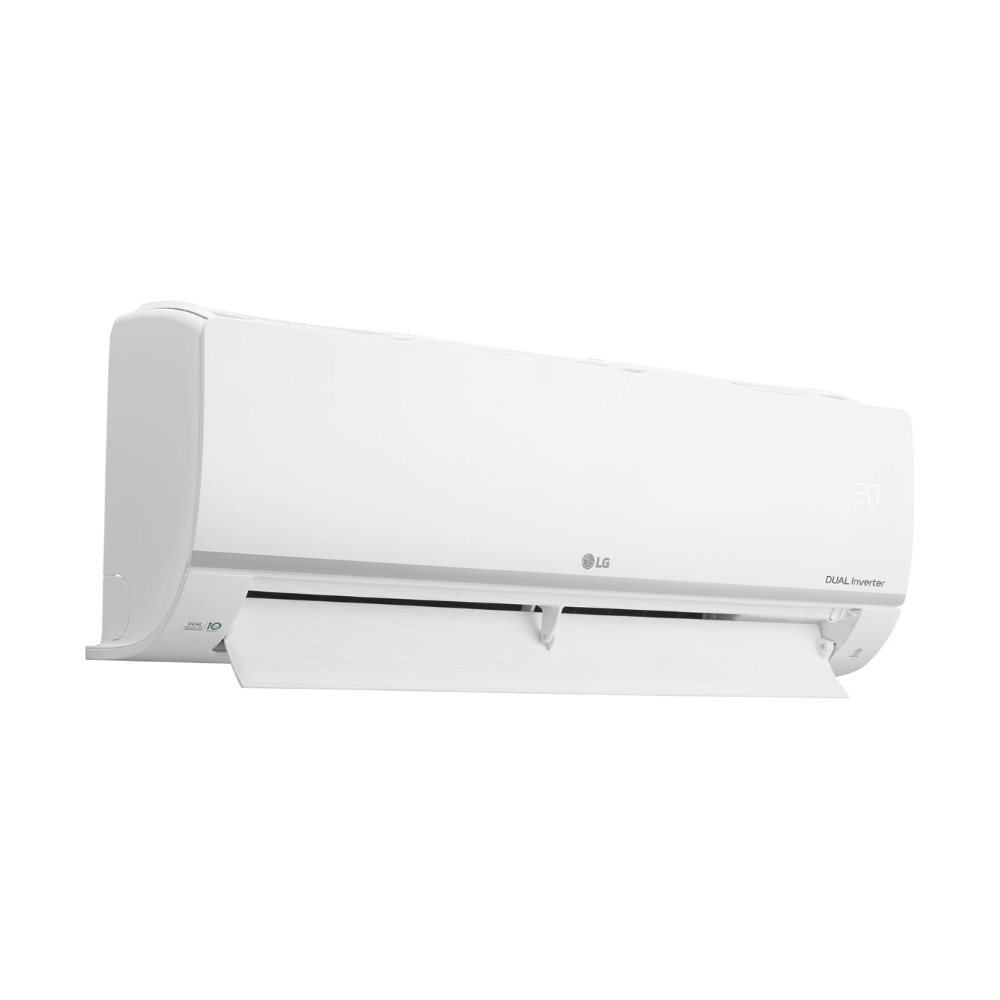

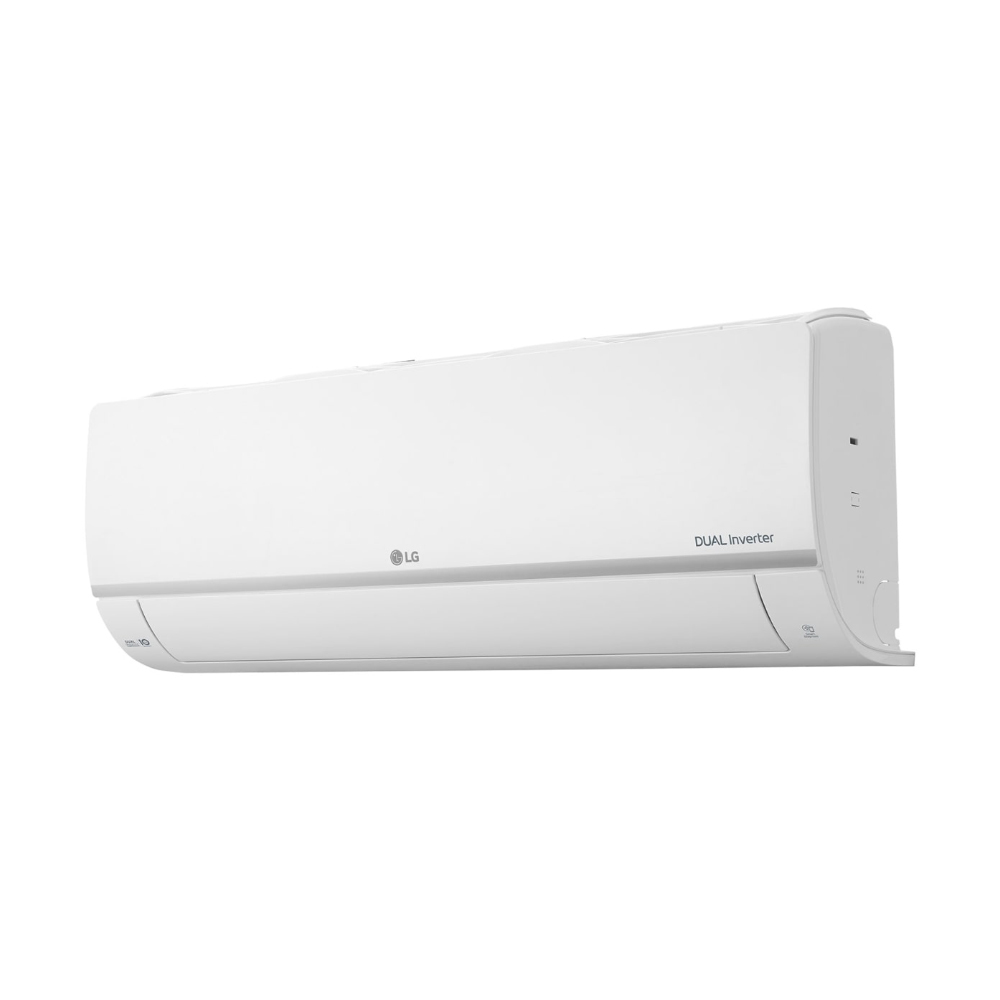

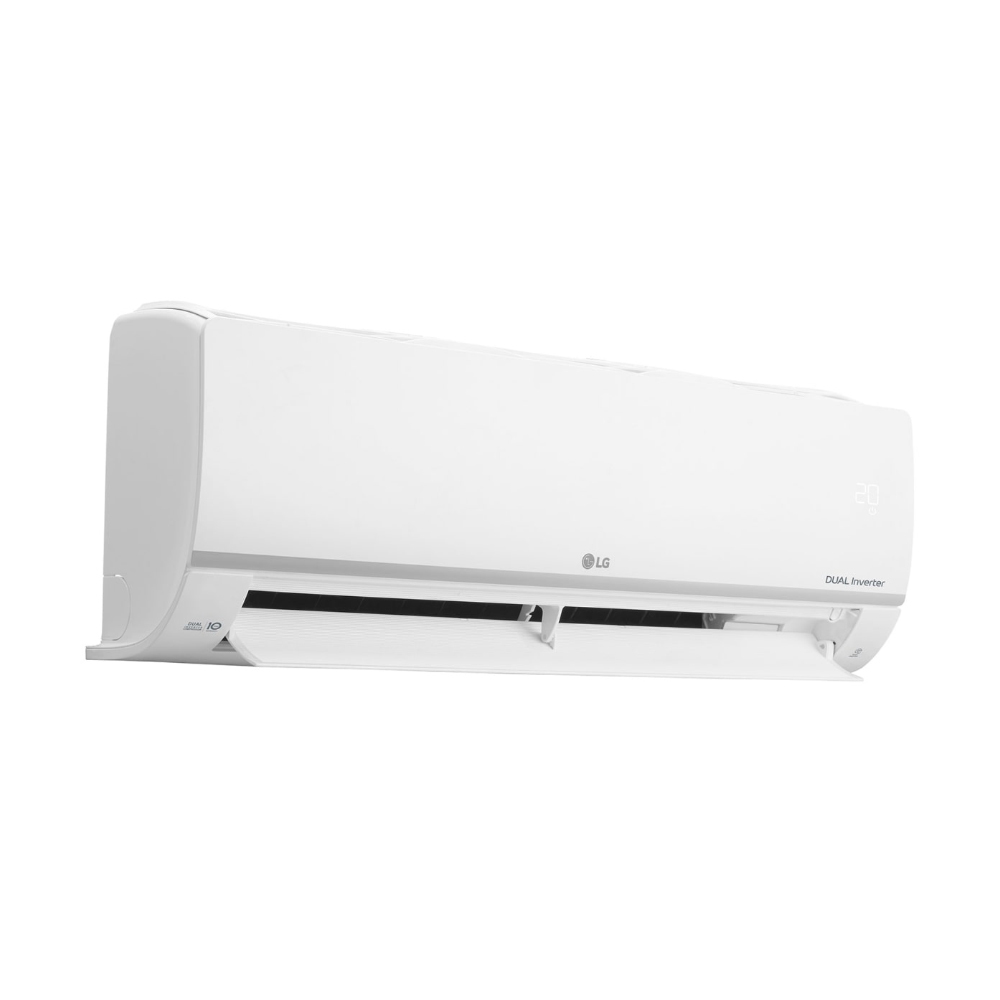

S24ETK air conditioner Air conditioner indoor unit White

Model S24ETKEAN 8806091102218

63 specifications

Overview

63 specifications in 5 groups

Specification	Value
Type	Air conditioner indoor unit
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Heating
Inverter technology	Yes
Seasonal efficiency rating (cooling) (SEER)	6.9
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	5.3
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.3
Cooling energy efficiency (EER, W/W)	3.05
Cooling capacity in watts (nominal)	660 W
Cooling capacity in watts (min)	900 W
Cooling capacity in watts (max)	7420 W
Heating capacity in watts (min)	900 W
Heating capacity in watts (max)	8640 W
Cooling capacity (nominal)	22.52 BTU/h
Cooling capacity (min)	3.071 BTU/h
Cooling capacity (max)	25.318 BTU/h
Heating capacity (nominal)	25.591 BTU/h
Heating capacity (min)	3.071 BTU/h
Heating capacity (max)	29.481 BTU/h
Refrigerating medium	R32
Refrigerating medium weight	1.1 kg
Global warming potential	675
Dehumidifying capacity	2.5 l/h
Operating temperature (cooling) (T-T)	-15 - 48 °C
Operating temperature (heating) (T-T)	-10 - 24 °C

Specification	Value
Energy efficiency class (cooling)	A++
Energy efficiency class (heating) (Average heating season)	A+
Energy efficiency class (heating) (Warmer heating season)	A+++
Hourly energy consumption (cooling)	6.6 kWh
Hourly energy consumption (heating)	5 kWh
Annual energy consumption (cooling)	335 kWh
Annual energy consumption (heating) (Warmer heating season)	713 kWh
Annual energy consumption (heating) (Average heating season)	1628 kWh
AC input voltage	187 - 286 V
Annual energy consumption	335 kWh
Design load (cooling)	6.6 kW
Design load (heating) (Average heating season)	5 kW
Design load (heating) (Warmer heating season)	2.7 kW
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Indoor unit type	Ceiling
Indoor unit noise level (high speed)	65 dB
Cooling airflow (indoor unit)	18.3 m³/h
Heating airflow (indoor unit)	19.8 m³/h
Indoor unit width	99.8 cm
Indoor unit depth	21 cm
Indoor unit height	34.5 cm
Indoor unit weight	12.3 kg
Indoor unit package width	105.3 cm
Indoor unit package depth	27.8 cm
Indoor unit package height	42.4 cm
Indoor unit package weight	14.1 kg

Specification	Value
Outdoor unit noise level	70 dB
Cooling airflow (outdoor unit)	49 m³/h
Outdoor unit width	87 cm
Outdoor unit depth	33 cm
Outdoor unit height	65 cm
Outdoor unit weight	46 kg
Outdoor unit package width	102.6 cm
Outdoor unit package depth	44.6 cm
Outdoor unit package height	68.3 cm
Outdoor unit package weight	49.7 kg

Specification	Value
Seasonal efficiency rating (heating) (SCOP)	4.3
