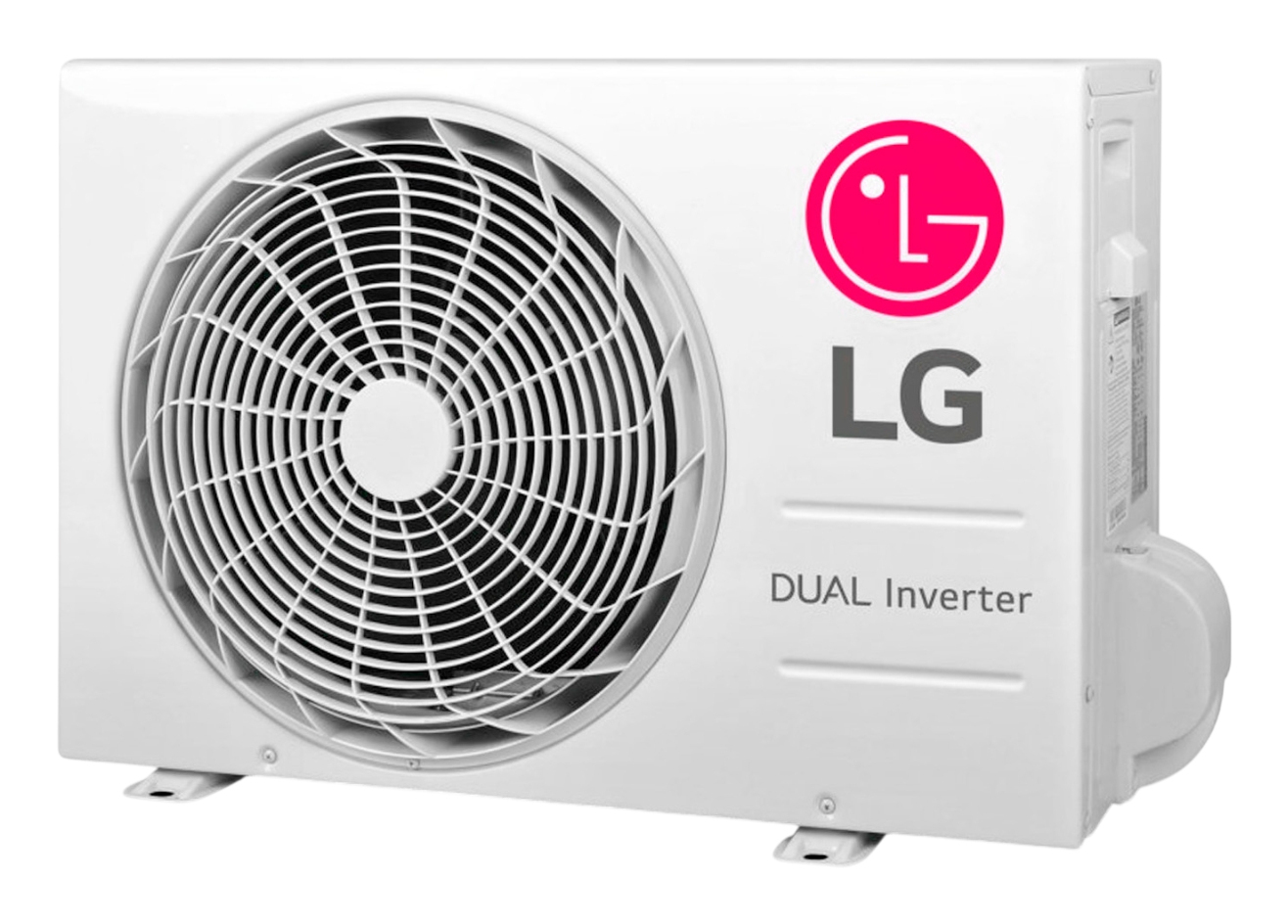

5.0kW DUALCOOL STANDARD PLUS Wall Mounted Air Conditioner DUAL Inverter

Model PC18SQPart no. PC18SQ.UL2EAN 8806084750846

48 specifications

Overview

Brand: LG
Category: Split-System Air Conditioner
Model: PC18SQ
Part numbers: PC18SQ.UL2, PC18SQ.NSJ, PC18SQ.SSK
EAN / UPC: 8806084750846, 8806098119479
Also known as: LG 5.0kW DUALCOOL STANDARD PLUS Wall Mounted Air Conditioner DUAL Inverter

48 specifications in 4 groups

Specification	Value
Type	Air conditioner outdoor unit
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Heating
Inverter technology	Yes
Comfort sleeping mode	Yes
Seasonal efficiency rating (cooling) (SEER)	7
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	5.3
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.3
Cooling energy efficiency (EER, W/W)	3.2
Heating energy efficiency (COP, W/W)	3.6
Cooling capacity in watts (nominal)	5000 W
Cooling capacity in watts (min)	900 W
Cooling capacity in watts (max)	5500 W
Heating capacity in watts (nominal) (Average heating season)	5800 W
Heating capacity in watts (min)	900 W
Heating capacity in watts (max)	6400 W
Cooling capacity (nominal)	18000 BTU/h
Refrigerating medium	R32
Refrigerating medium weight	1 kg
Gas hose diameter	1.27 cm
Liquid hose diameter	6.35 mm
Air filter	Yes
Dehumidifying capacity	1.8 l/h
Remotely operated	Yes
Smartphone/tablet remote support	Yes
Operating temperature (cooling) (T-T)	-15 - 48 °C
Operating temperature (heating) (T-T)	-10 - 24 °C

Specification	Value
Energy efficiency class (cooling)	A++
Energy efficiency class (heating) (Average heating season)	A+
Energy efficiency class (heating) (Warmer heating season)	A+++
Annual energy consumption (cooling)	250 kWh
Annual energy consumption (heating) (Warmer heating season)	555 kWh
Annual energy consumption (heating) (Average heating season)	1270 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current (cooling)	9 A
Current (heating)	9.5 A
Design load (cooling)	5 kW
Design load (heating) (Average heating season)	3.9 kW
Design load (heating) (Warmer heating season)	2.1 kW
Energy efficiency scale	A+++ to D

Specification	Value
Wi-Fi	Yes

Specification	Value
Outdoor unit sound power level	65 dB
Outdoor units quantity	1
Outdoor unit width	77 cm
Outdoor unit depth	28.8 cm
Outdoor unit height	54.5 cm
Outdoor unit weight	34.4 kg
