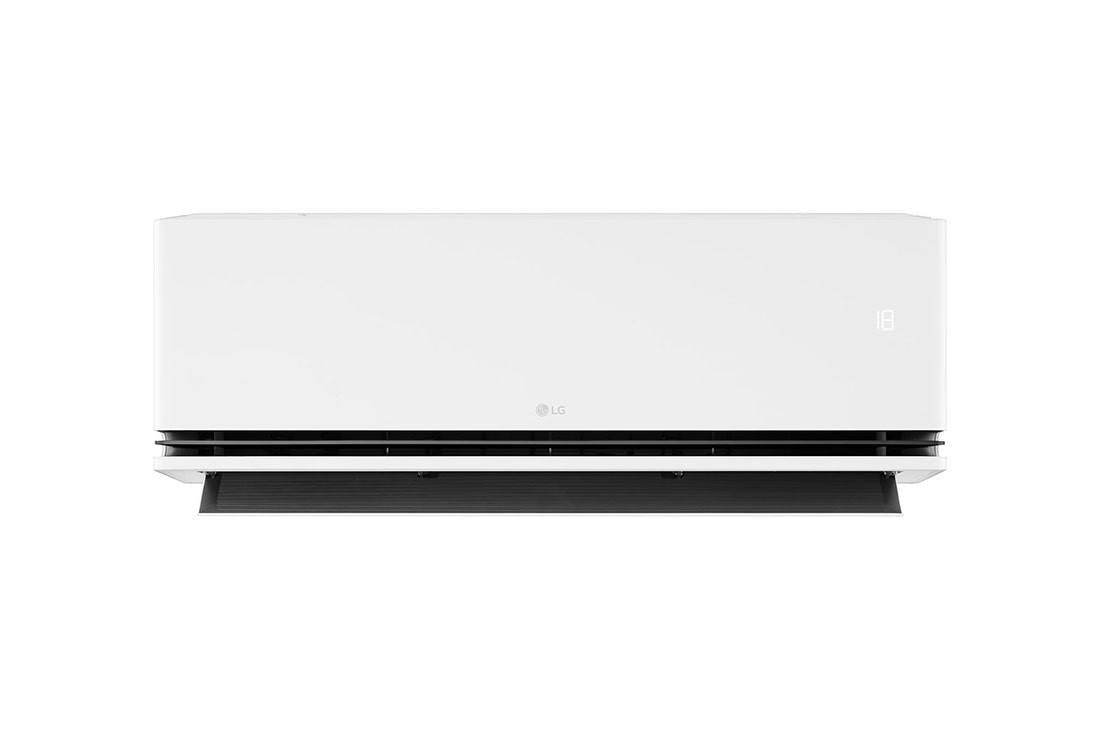

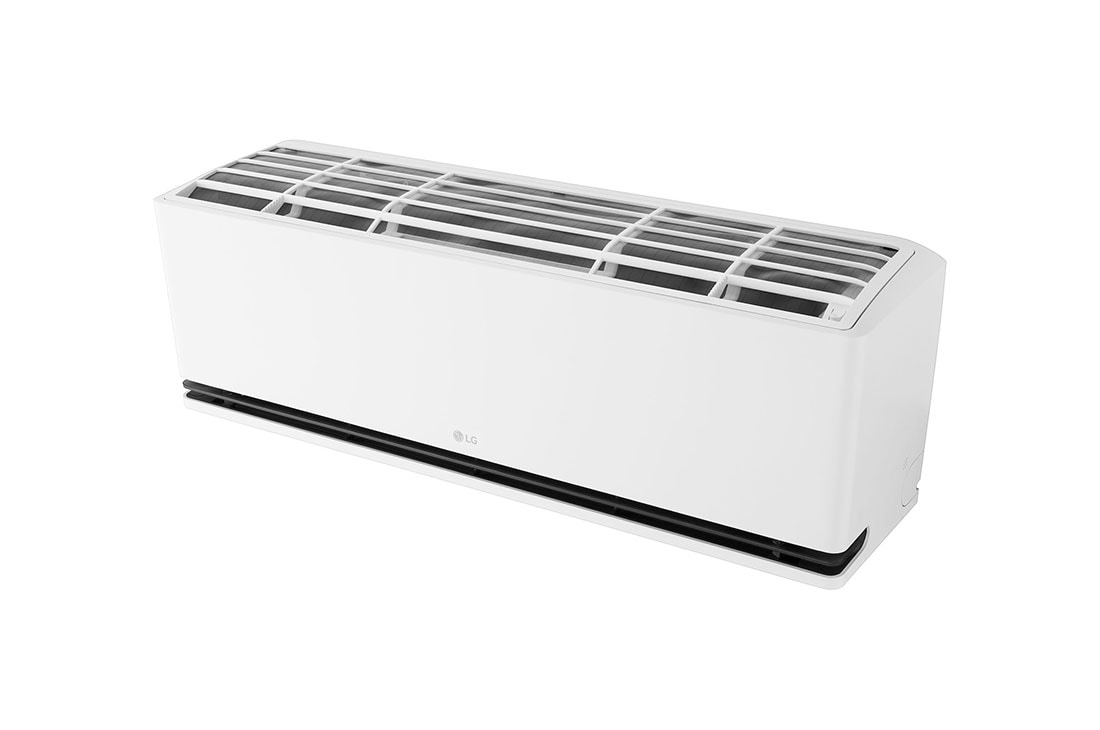

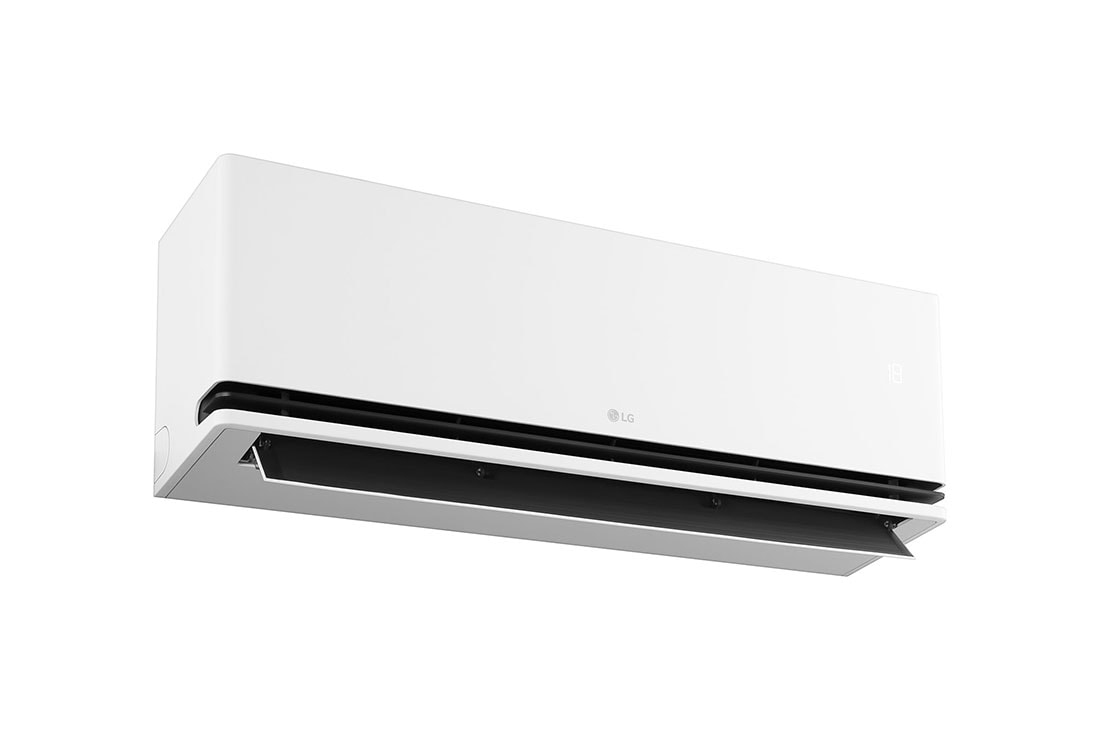

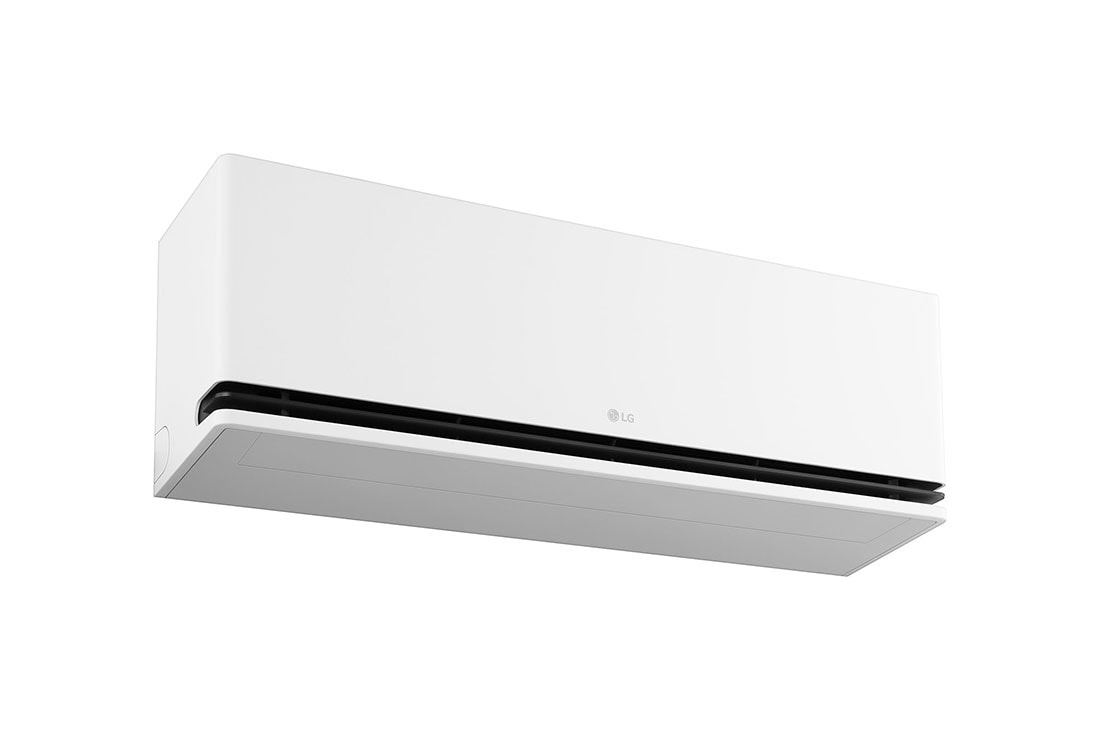

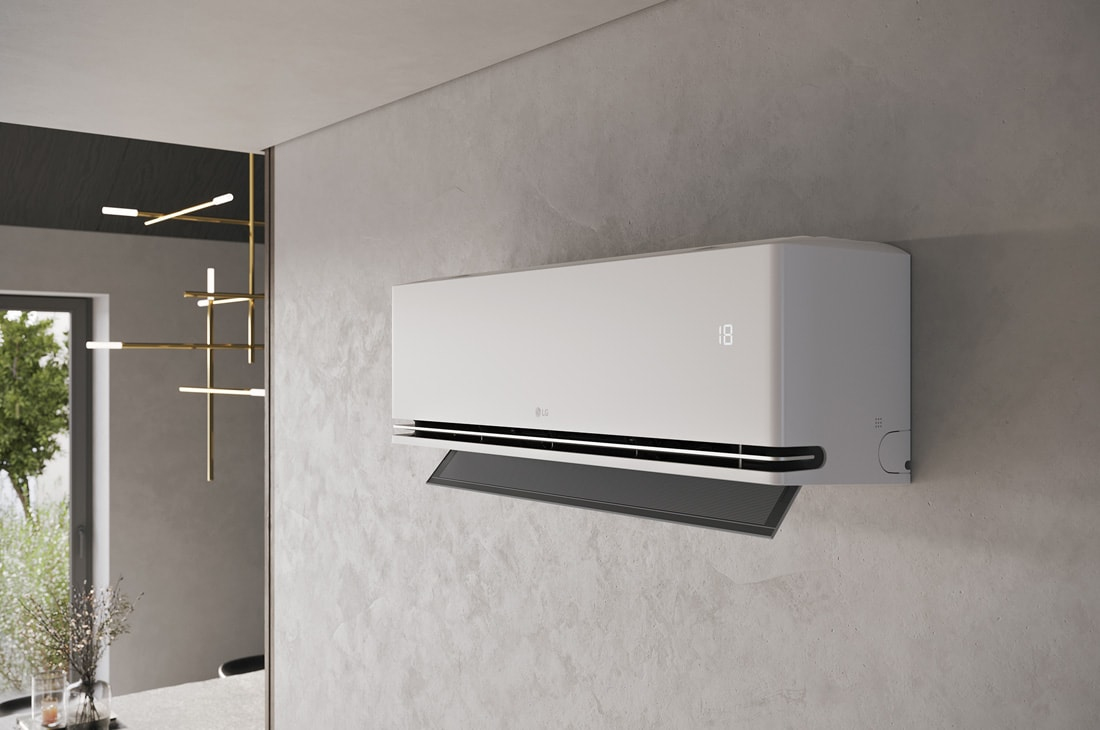

DUALCOOL AI Deluxe

Model DUALCOOL AI DeluxePart no. H12S1DA

64 specifications

Overview

64 specifications in 5 groups

Specification	Value

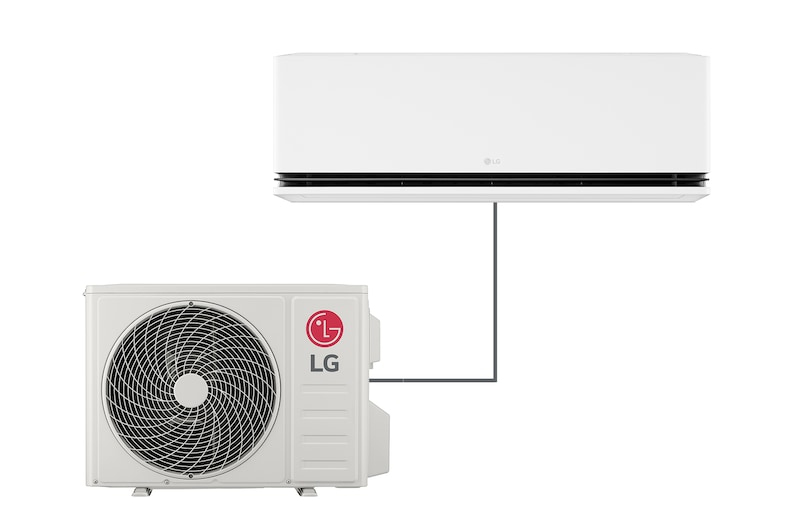

Type	Split system
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Heating, Dehumidifying, Fan, Circulation
Inverter technology	Yes
Ionizer	Yes
Turbo mode	Yes
Suitable for room volume up to	120 m³
Suitable for room area up to	40 m²
Thermostat range	16 - 30 °C
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	5.7
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.6
Cooling energy efficiency (EER, W/W)	3.93
Cooling capacity in watts (nominal)	3500 W
Cooling capacity in watts (min)	890 W
Cooling capacity in watts (max)	4200 W
Heating capacity in watts (nominal) (Warmer heating season)	4000 W
Heating capacity in watts (max)	5400 W
Cooling capacity (nominal)	12000 BTU/h
Cooling capacity (min)	3036 BTU/h
Cooling capacity (max)	14330 BTU/h
Heating capacity (nominal)	13650 BTU/h
Heating capacity (min)	2218 BTU/h
Heating capacity (max)	18425 BTU/h
Built-in display	Yes
Display type	LED
Timer	Yes
Timer duration (maximum)	24 h
Refrigerating medium	R32
Refrigerating medium weight	800 g

Specification	Value
Energy efficiency class (cooling)	A+++
Energy efficiency class (heating) (Average heating season)	A++
Energy efficiency class (heating) (Warmer heating season)	A+++
Hourly energy consumption (cooling)	0.41 kWh
Hourly energy consumption (heating)	0.61 kWh
Annual energy consumption (cooling)	144 kWh
Annual energy consumption (heating) (Warmer heating season)	368 kWh
Annual energy consumption (heating) (Average heating season)	852 kWh
Power consumption (cooling) (min)	180 W
Power consumption (cooling) (max)	1400 W
Power consumption (heating) (min)	180 W
Power consumption (heating) (max)	1600 W
Power consumption (standby)	1 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current	4.1 A
Current (cooling)	4.1 A
Current (heating)	4.25 A
Design load (cooling)	3.5 kW
Design load (heating) (Average heating season)	2.8 kW
Design load (heating) (Warmer heating season)	1.5 kW

Specification	Value
Wi-Fi	Yes
Bluetooth	Yes

Specification	Value
Indoor unit sound power level	60 dB
Indoor unit width	89.5 cm
Indoor unit depth	23.5 cm
Indoor unit height	30.7 cm
Indoor unit weight	11 kg

Specification	Value
Outdoor unit sound power level	65 dB
Outdoor unit width	71.7 cm
Outdoor unit depth	23 cm
Outdoor unit height	49.5 cm
Outdoor unit weight	25.1 kg
