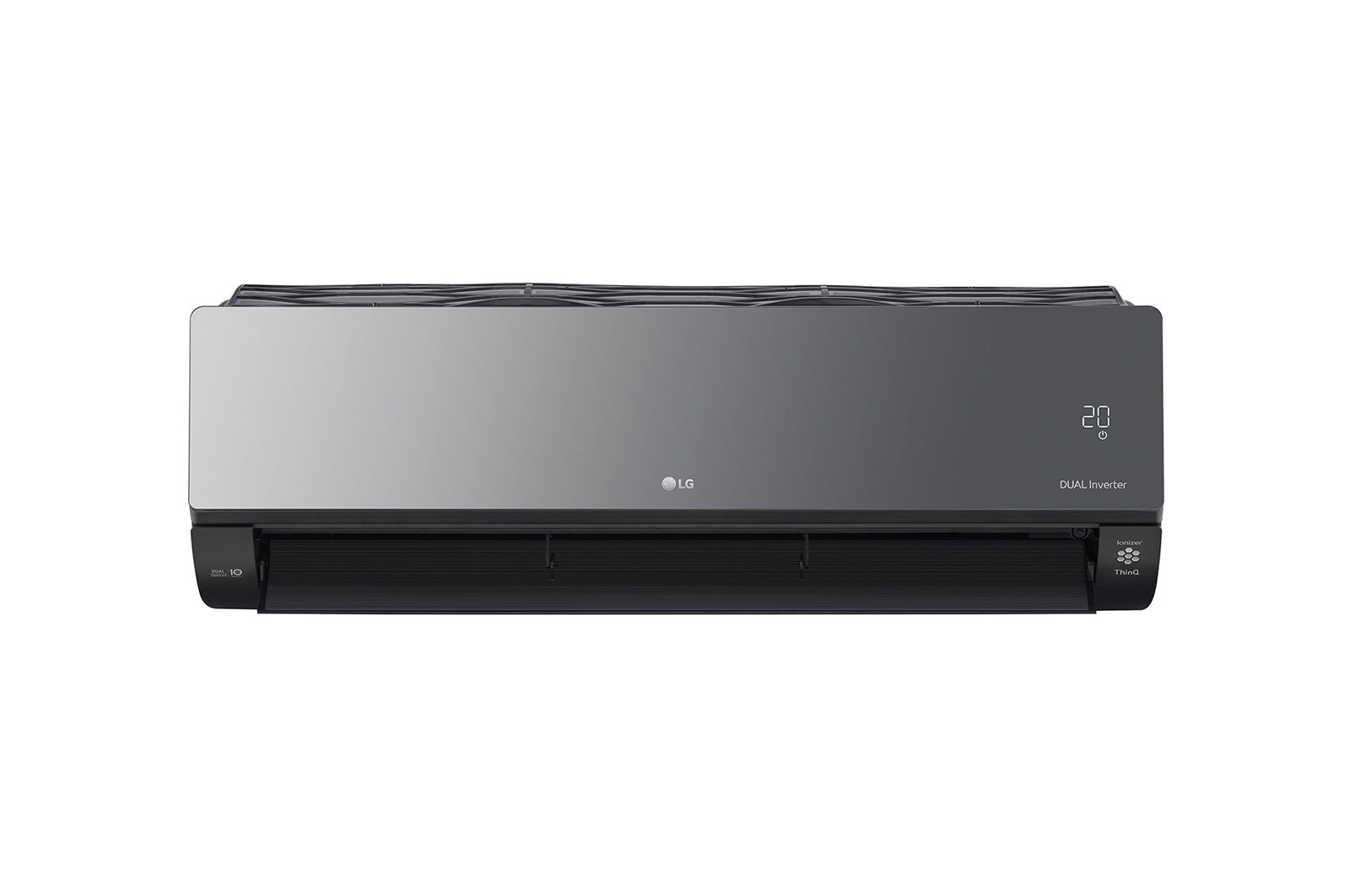

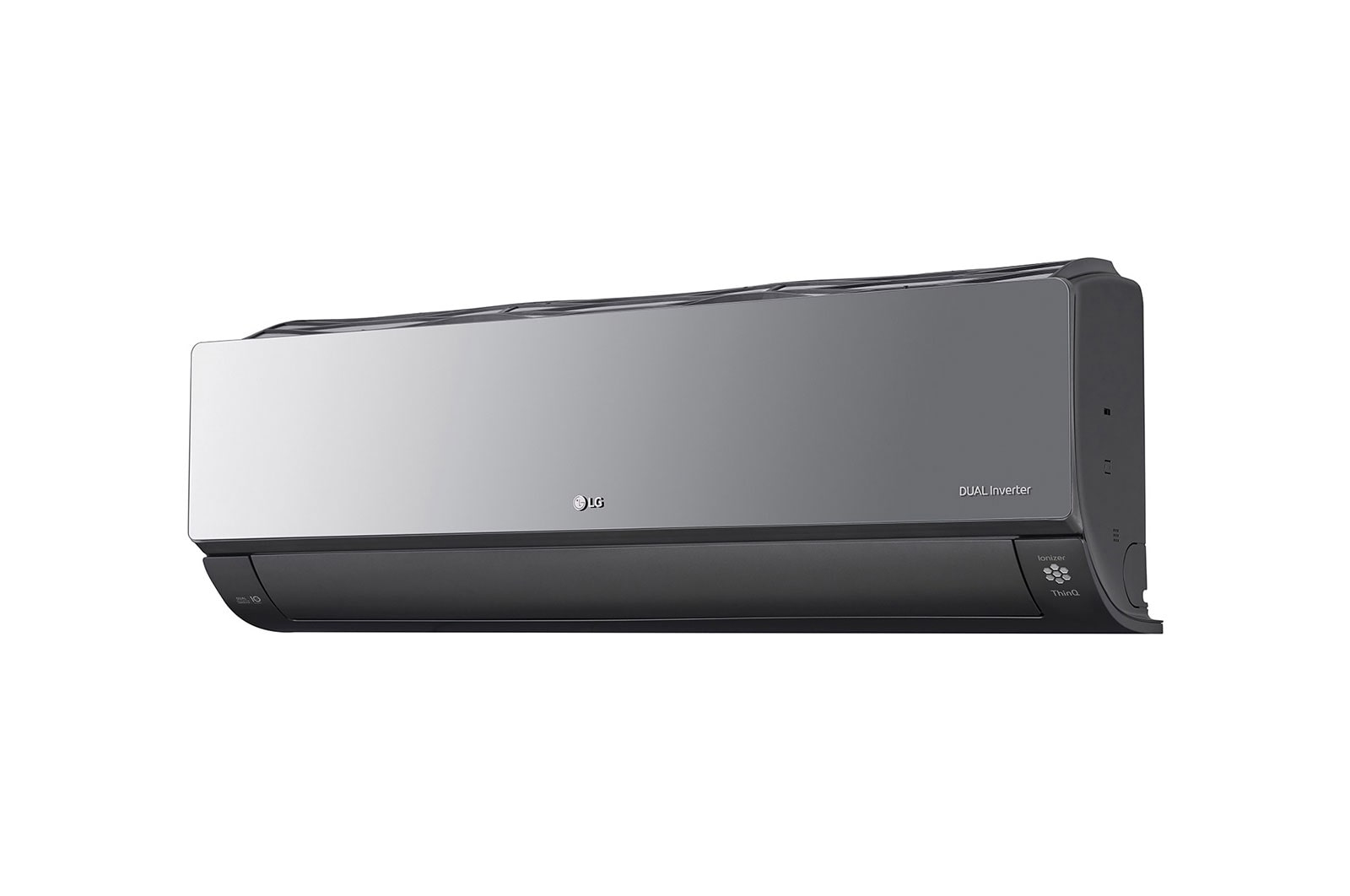

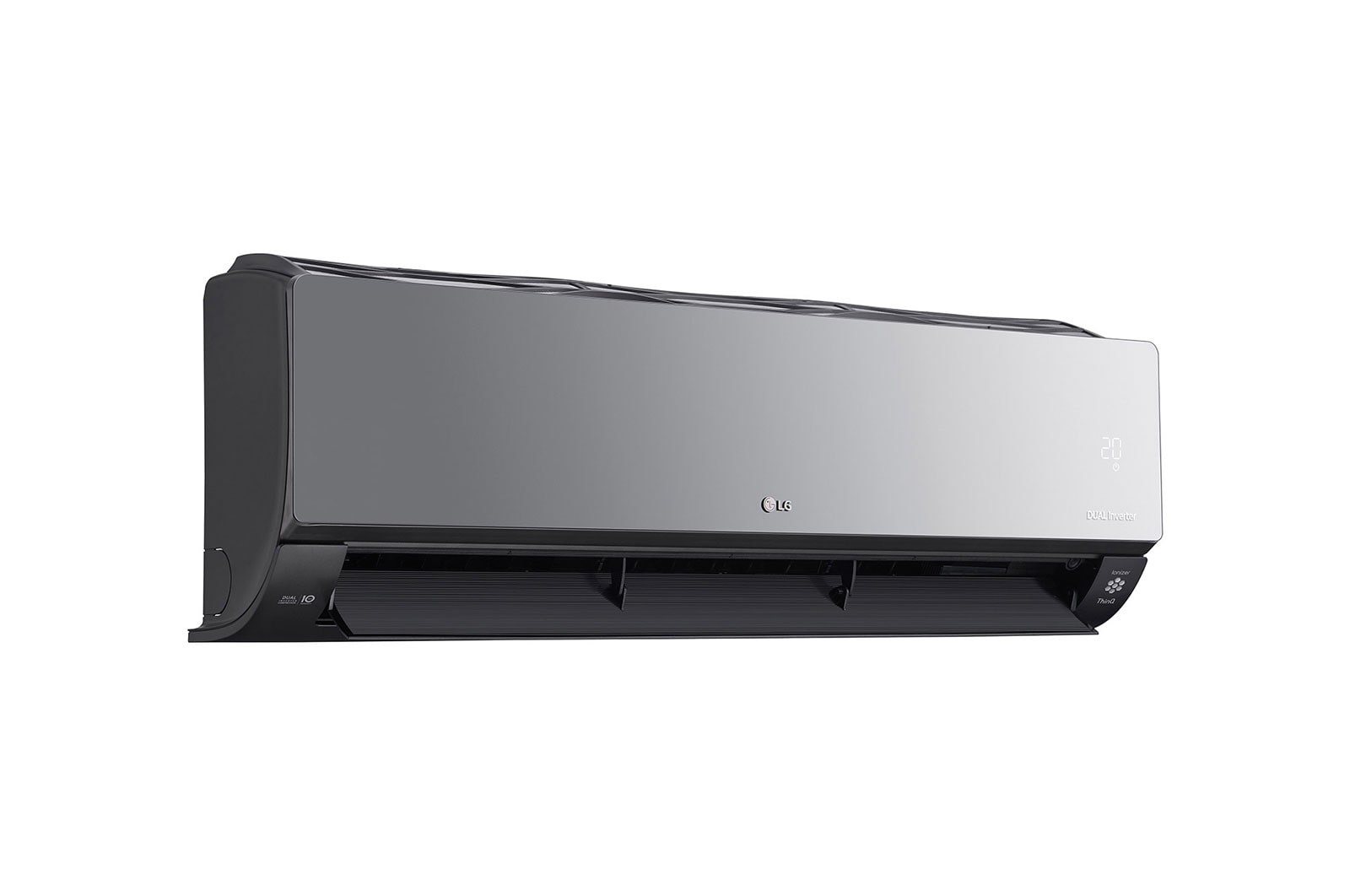

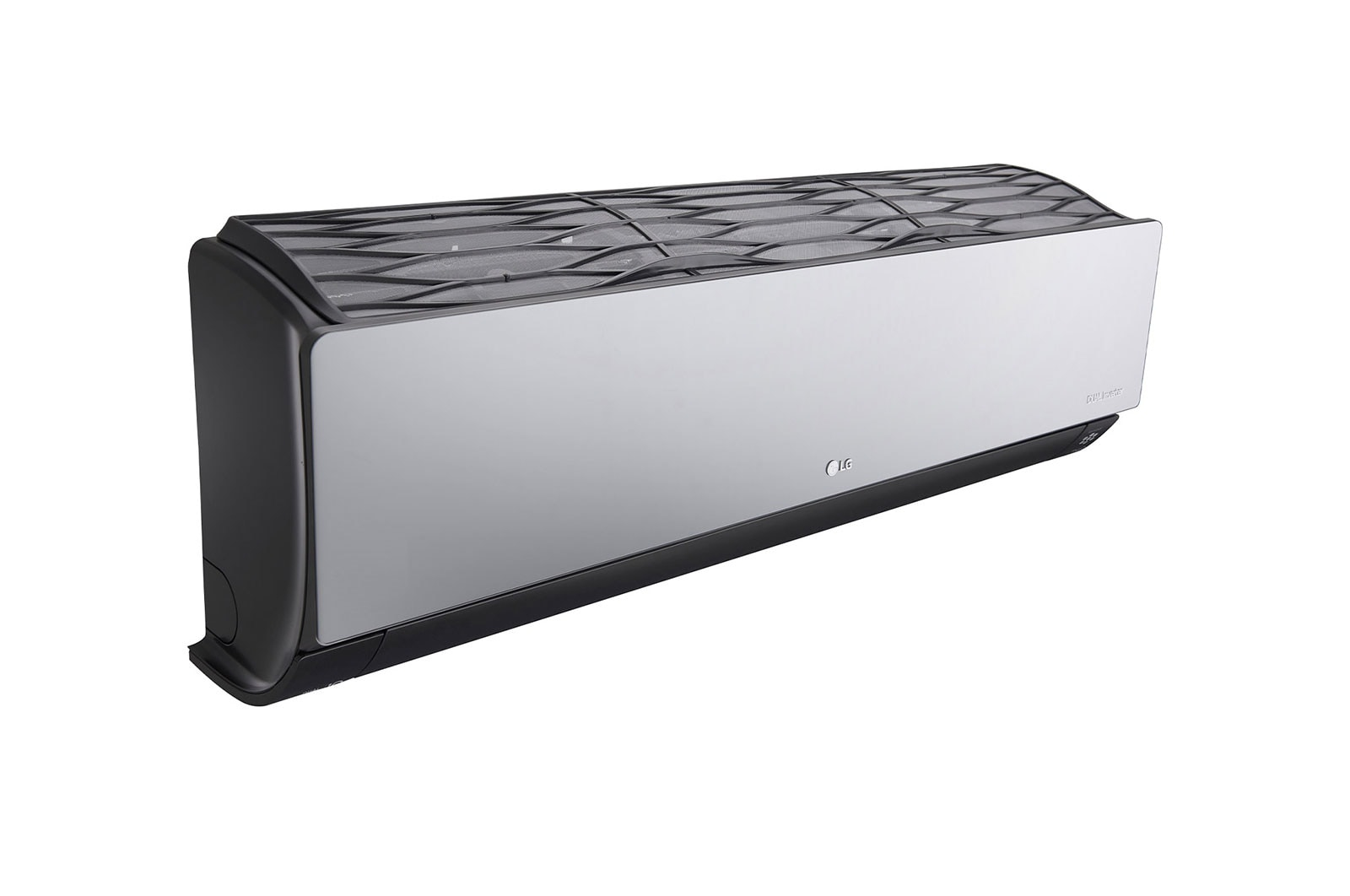

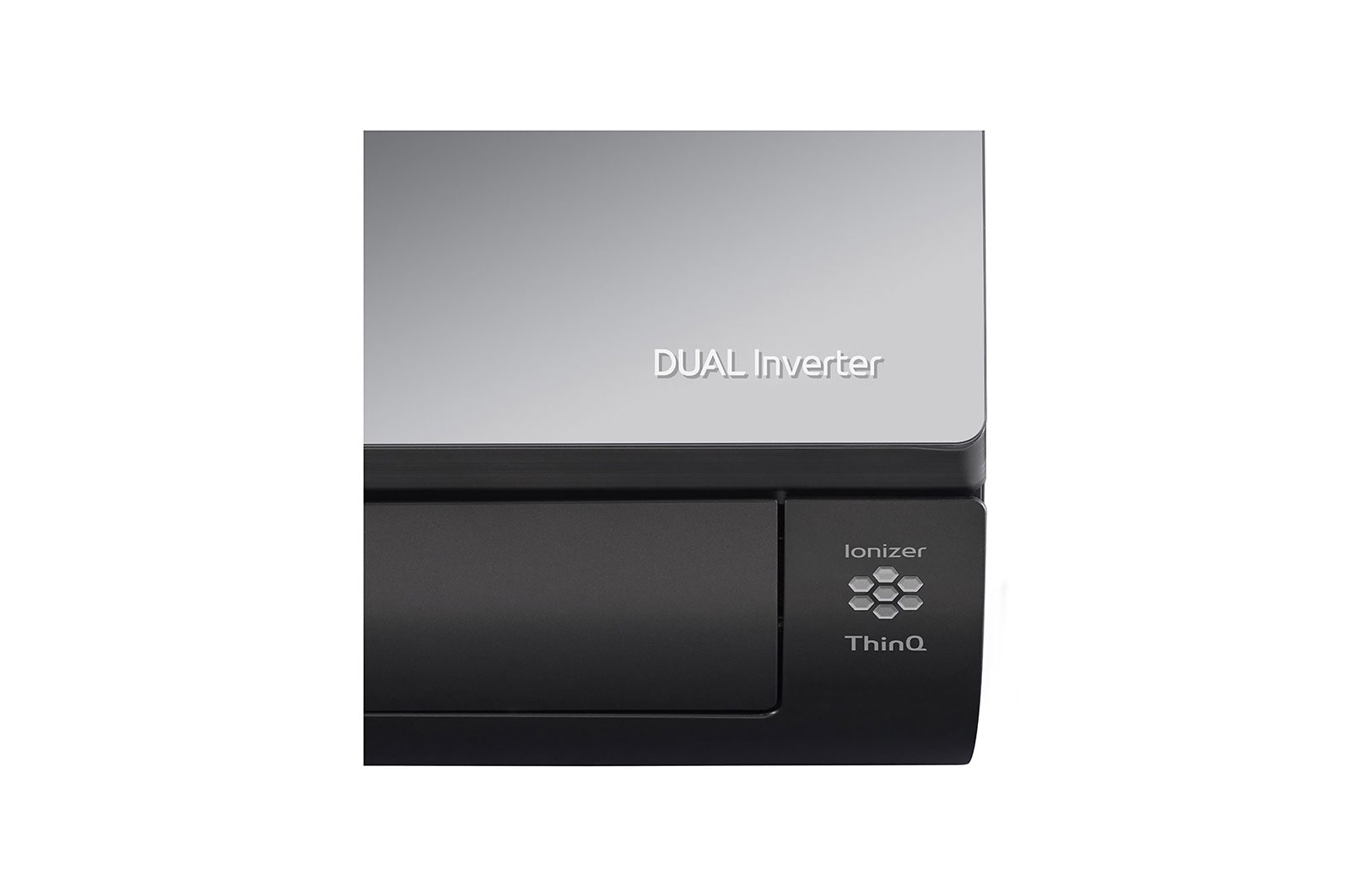

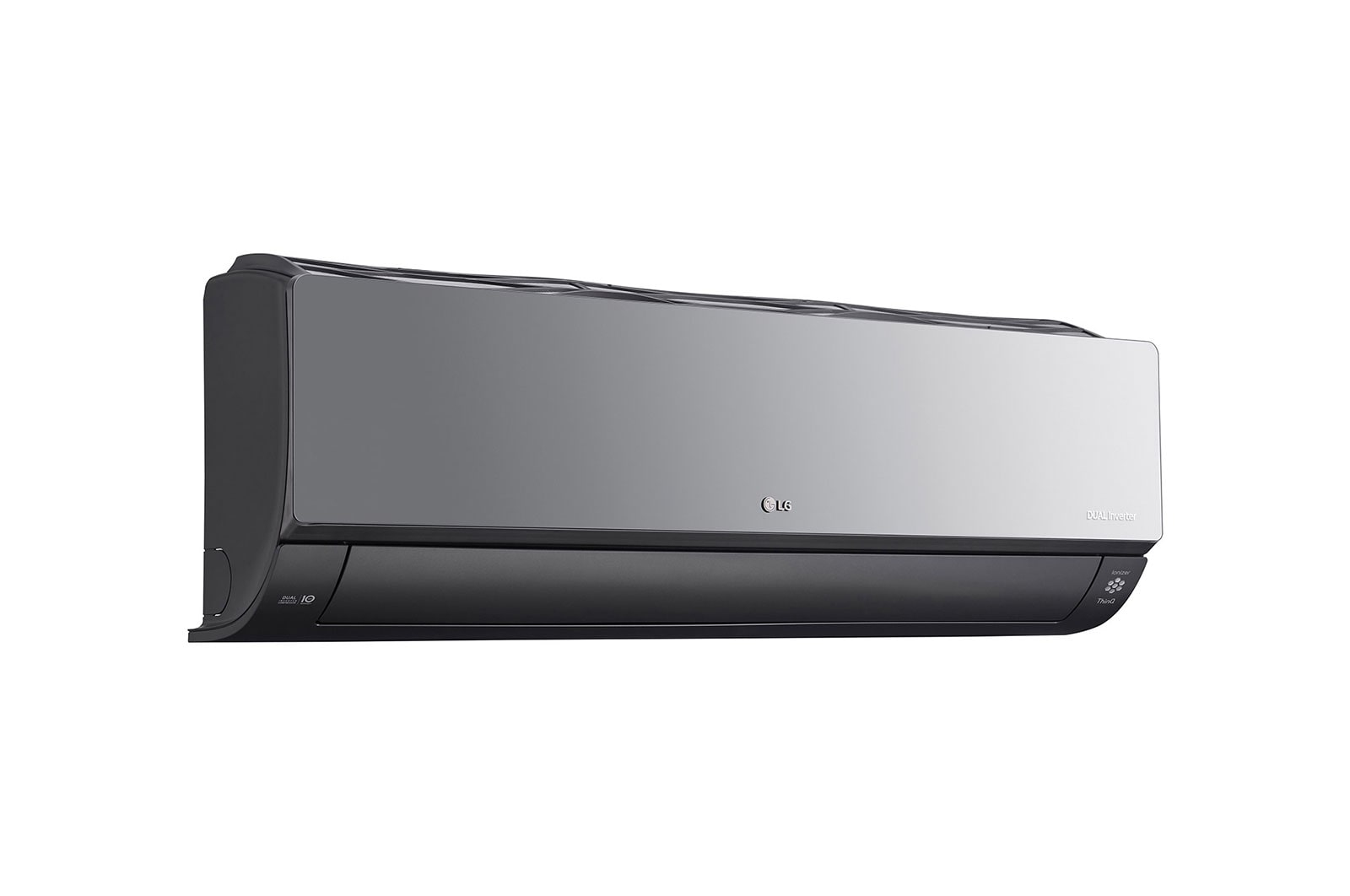

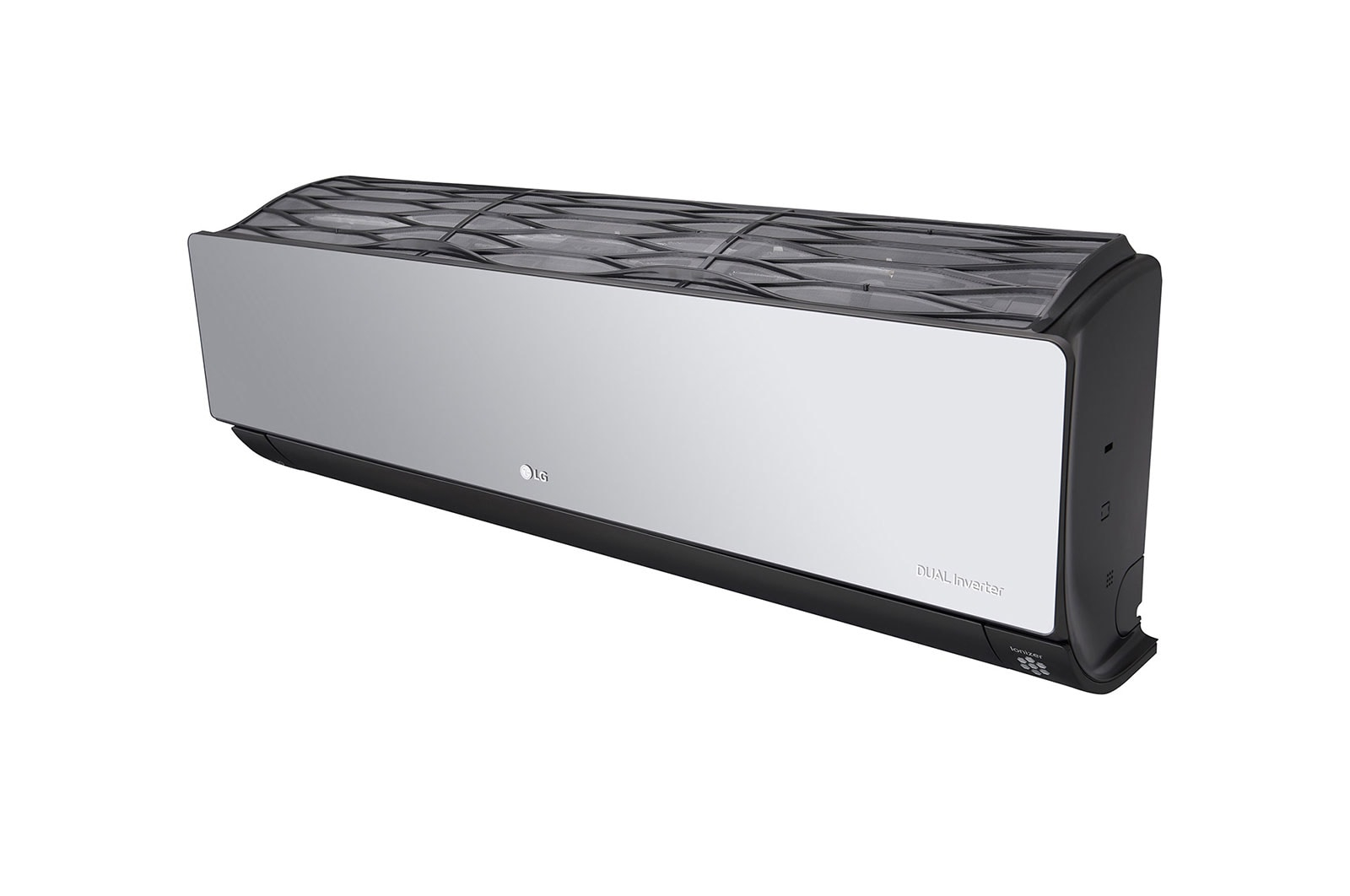

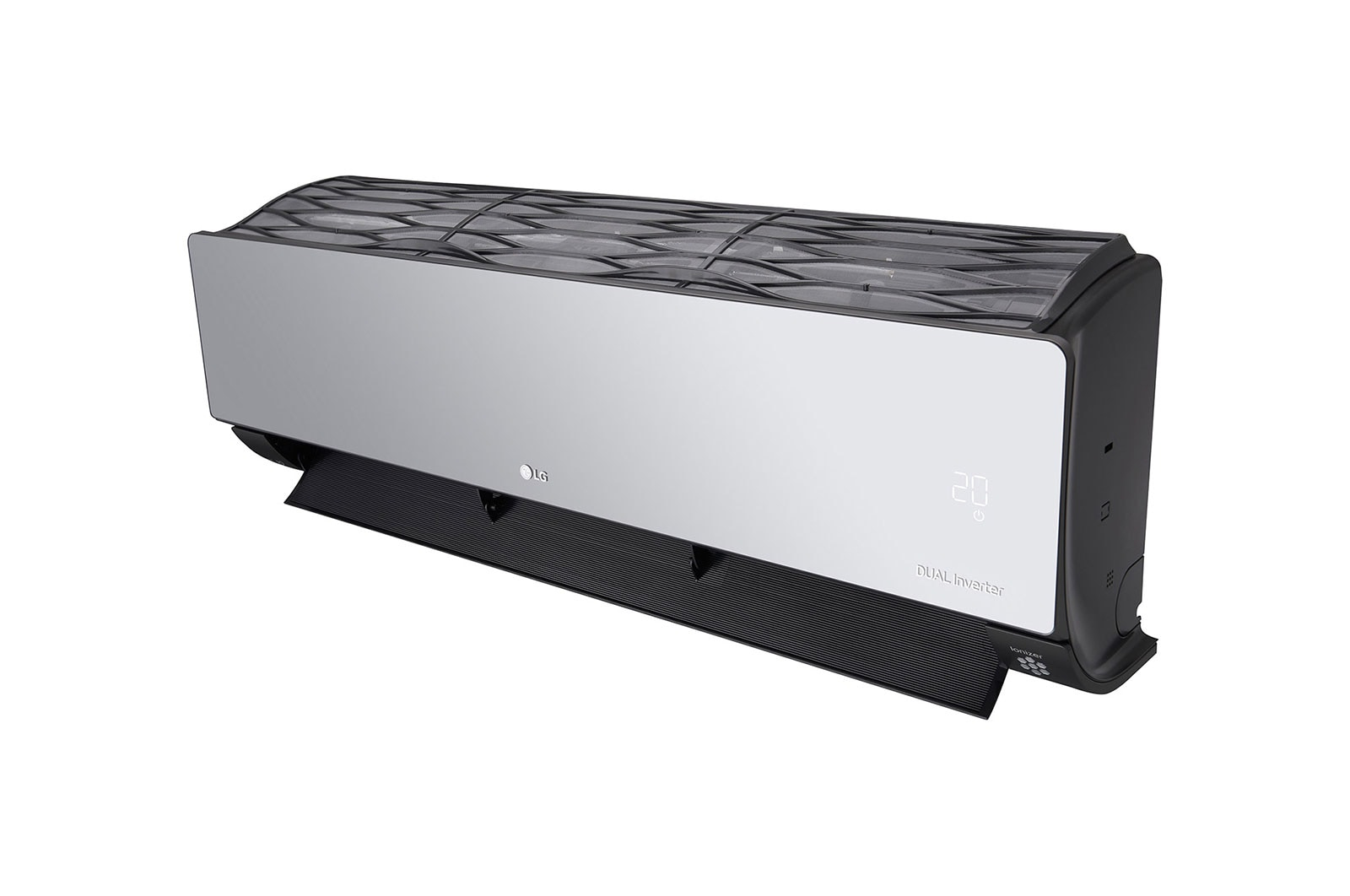

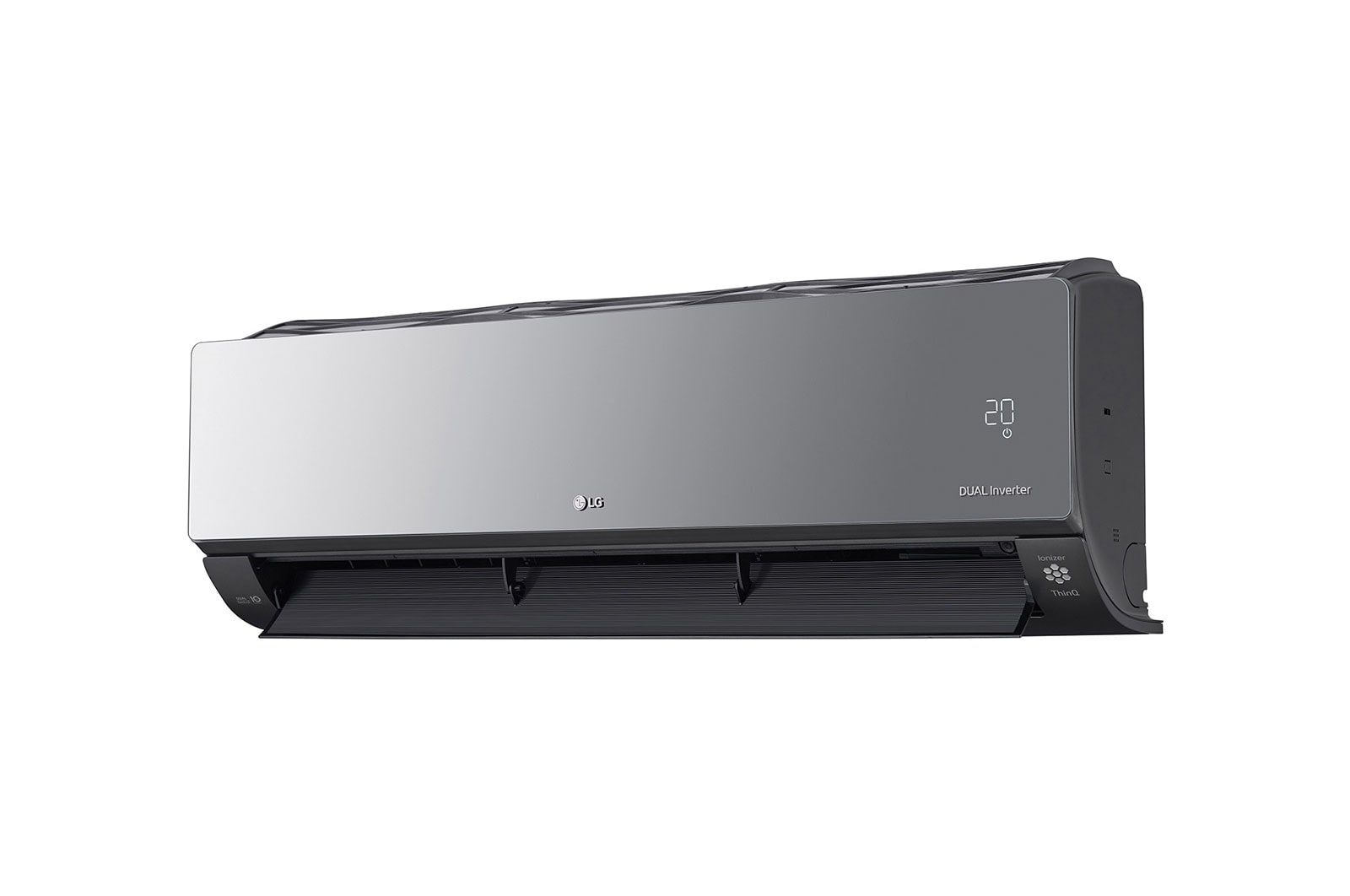

AC24BH Air conditioner indoor unit Black

Model AC24BHPart no. AC24BH.SSKEAN 8435002986434

54 specifications

Overview

54 specifications in 5 groups

Specification	Value
Type	Air conditioner indoor unit
Multi-split	No
Product colour	Black
Air conditioner functions	Cooling, Fan, Heating
Inverter technology	Yes
Ionizer	Yes
Seasonal efficiency rating (cooling) (SEER)	6.9
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	5.3
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.3
Cooling energy efficiency (EER, W/W)	3.05
Heating energy efficiency (COP, W/W)	3.35
Cooling capacity in watts (nominal)	6600 W
Cooling capacity in watts (min)	900 W
Cooling capacity in watts (max)	7420 W
Heating capacity in watts (min)	900 W
Heating capacity in watts (max)	8640 W
Cooling capacity (nominal)	22520 BTU/h
Cooling capacity (min)	3071 BTU/h
Cooling capacity (max)	25381 BTU/h
Heating capacity (nominal)	25591 BTU/h
Heating capacity (min)	3071 BTU/h
Heating capacity (max)	29481 BTU/h
Built-in display	Yes
Refrigerating medium	R32
Refrigerating medium weight	1.1 kg
Compressor type	Twin Rotary
Gas hose diameter	1.59 cm
Liquid hose diameter	6.35 mm
Dehumidifying capacity	2.5 l/h
Power factor	97
Operating temperature (cooling) (T-T)	18 - 32 °C
Operating temperature (heating) (T-T)	16 - 30 °C

Specification	Value
Energy efficiency class (cooling)	A++
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (cooling)	335 kWh
Annual energy consumption (heating) (Average heating season)	1628 kWh
Power consumption (cooling) (min)	210 W
Power consumption (cooling) (max)	2500 W
Power consumption (heating) (min)	210 W
Power consumption (heating) (max)	2750 W
AC input voltage	187 - 276 V
Current (cooling)	9.8 A
Current (heating)	10 A
Design load (cooling)	6.6 kW
Design load (heating) (Average heating season)	5 kW
Design load (heating) (Warmer heating season)	2.7 kW

Specification	Value
Wi-Fi	Yes

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit sound power level	65 dB
Indoor unit width	99.8 cm
Indoor unit depth	21.2 cm
Indoor unit height	34.5 cm
Indoor unit weight	13.5 kg

Specification	Value
Outdoor unit sound power level	70 dB
