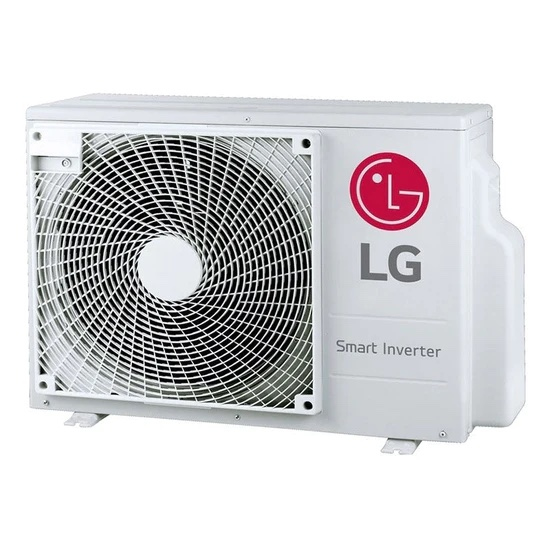

AC12BH Air conditioner outdoor unit White
Model AC12BHEAN 8806091148421
40 specifications
- Energy classA+
- TypeAir conditioner outdoor unit
- ColourWhite
- Wi-FiYes
- Outdoor unit sound power level65 dB
Overview
- Energy class
- A+
- Type
- Air conditioner outdoor unit
- Colour
- White
- Wi-Fi
- Yes
- Outdoor unit sound power level
- 65 dB
- Brand
- LG
- Category
- Split-System Air Conditioner
- Model
- AC12BH
- Part numbers
- AC12BH, AC12BH.SSJ, AC12BH.UA3, AC12BH.NSJ
- EAN / UPC
- 8806091148421, 8806091148438, 8806091148414
- Also known as
- LG AC12BH Air conditioner outdoor unit White
Specifications
40 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Multi-split | No |
| Product colour | White |
| Air conditioner functions | Cooling, Dehumidifying, Heating |
| Inverter technology | Yes |
| Ionizer | Yes |
| Seasonal efficiency rating (cooling) (SEER) | 6.6 |
| Seasonal efficiency rating (heating) (SCOP) (Warmer heating season) | 4.9 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 4 |
| Cooling capacity in watts (nominal) | 3500 W |
| Heating capacity in watts (min) | 890 W |
| Heating capacity in watts (max) | 5100 W |
| Cooling capacity (nominal) | 12000 BTU/h |
| Refrigerating medium | R32 |
| Refrigerating medium weight | 700 g |
| Compressor type | Twin Rotary |
| Hose length (min) | 3 m |
| Hose length (max) | 15 m |
| Gas hose diameter | 9.52 mm |
| Drain hose diameter | 2.15 cm |
| Liquid hose diameter | 6.35 mm |
| Operating temperature (cooling) (T-T) | -10 - 48 °C |
| Operating temperature (heating) (T-T) | -10 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Energy efficiency class (heating) (Warmer heating season) | A++ |
| Annual energy consumption (cooling) | 186 kWh |
| Annual energy consumption (heating) (Warmer heating season) | 371 kWh |
| Annual energy consumption (heating) (Average heating season) | 875 kWh |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Current (cooling) | 4.7 A |
| Current (heating) | 4.7 A |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit sound power level | 65 dB |
| Cooling airflow (outdoor unit) | 1620 m³/h |
| Outdoor unit width | 71.7 cm |
| Outdoor unit depth | 23 cm |
| Outdoor unit height | 49.5 cm |
| Outdoor unit weight | 26 kg |
