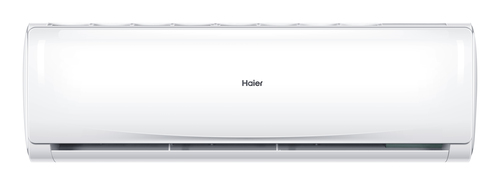

HAS09TABIN Air conditioner indoor unit White

Model HAS09TABINPart no. AABL6PE01EAN 6932063846629

79 specifications

Overview

79 specifications in 7 groups

Specification	Value
Type	Air conditioner indoor unit
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Fan, Heating
Inverter technology	Yes
Split system type	Mono split
Ionizer	Yes
Comfort sleeping mode	Yes
Turbo mode	Yes
Wind deflector adjustment	Vertical
Seasonal efficiency rating (cooling) (SEER)	6.1
Cooling energy efficiency (EER, W/W)	3.23
Heating energy efficiency (COP, W/W)	3.71
Cooling capacity in watts (nominal)	2600 W
Cooling capacity in watts (min)	800 W
Cooling capacity in watts (max)	3000 W
Heating capacity in watts (nominal) (Colder heating season)	2800 W
Heating capacity in watts (min)	800 W
Heating capacity in watts (max)	3200 W
Cooling capacity (nominal)	9000 BTU/h
Cooling capacity (max)	9000 BTU/h
Built-in display	Yes
Display type	LED
Timer	Yes
Timer duration (maximum)	24 h
Refrigerating medium	R32
Refrigerating medium weight	510 g
Hose length (max)	20 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Filter type	Nylon
Anti-bacterial filter	Yes
Deodorizing filter	No
Dehumidifying capacity	1 l/h
Remotely operated	Yes
Smartphone/tablet remote support	Yes
Operating temperature range indoor unit (cooling)	21 - 35 °C
Operating temperature range indoor unit (heating)	10 - 27 °C
Auto diagnostic	Yes
Auto-restart	Yes
Automatic hot/cold switching	Yes
Quick connect fitting	No
Removable front panel	Yes

Specification	Value
Energy efficiency class (cooling)	A++
Energy efficiency class (heating) (Average heating season)	A+
Energy efficiency class (heating) (Warmer heating season)	A+
Annual energy consumption (cooling)	149 kWh
Annual energy consumption (heating) (Warmer heating season)	549 kWh
Annual energy consumption (heating) (Average heating season)	840 kWh
AC input voltage	220-240 V
AC input frequency	50 Hz
Energy saving mode	Yes
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Wi-Fi	Yes
Bluetooth	No

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	29 dB
Indoor unit noise level (high speed)	37 dB
Indoor unit sound power level	54 dB
Cooling airflow (indoor unit)	500 m³/h
Heating airflow (indoor unit)	500 m³/h
Indoor units quantity	1
Indoor unit width	82 cm
Indoor unit depth	19.5 cm
Indoor unit height	28 cm
Indoor unit weight	8.2 kg
Indoor unit package width	88.3 cm
Indoor unit package depth	26.9 cm
Indoor unit package height	34.2 cm
Indoor unit package weight	10.5 kg

Specification	Value
Manual	Yes
Remote control included	Yes

Specification	Value
Seasonal efficiency rating (heating) (SCOP)	4
Warranty period	2 year(s)
