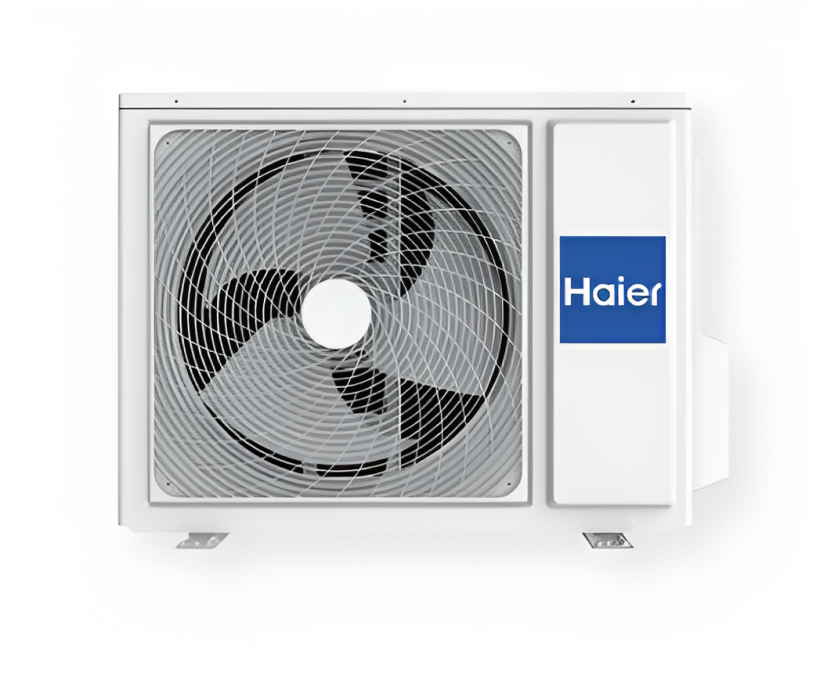

H1U12FAAOUT Air conditioner outdoor unit White

Model H1U12FAAOUTPart no. 3002302T2EAN 6932063803547

54 specifications

Overview

54 specifications in 5 groups

Specification	Value
Type	Air conditioner outdoor unit
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Heating
Inverter technology	Yes
Ionizer	Yes
Comfort sleeping mode	Yes
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.6
Cooling energy efficiency (EER, W/W)	4
Heating energy efficiency (COP, W/W)	3.81
Cooling capacity in watts (nominal)	3500 W
Cooling capacity in watts (min)	1000 W
Cooling capacity in watts (max)	4000 W
Heating capacity in watts (nominal) (Average heating season)	4200 W
Heating capacity in watts (min)	1000 W
Heating capacity in watts (max)	5200 W
Refrigerating medium	R32
Refrigerating medium weight	780 g
Hose length (max)	20 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Dehumidifying capacity	1.6 l/h
Maximum number of indoor units	1
Operating temperature (cooling) (T-T)	-20 - 43 °C
Operating temperature (heating) (T-T)	-20 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A++
Annual energy consumption (cooling)	144 kWh
Annual energy consumption (heating) (Average heating season)	854 kWh
Power consumption (cooling) (min)	300 W
Power consumption (cooling) (max)	1500 W
Power consumption (heating) (min)	500 W
Power consumption (heating) (max)	1600 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current	7.2 A
Design load (cooling)	3.5 kW
Design load (heating) (Average heating season)	2.8 kW
Energy efficiency class (cooling) (legacy scale)	A+++

Specification	Value
Wi-Fi	Yes
Bluetooth	No

Specification	Value
Outdoor unit noise level	48 dB
Outdoor unit sound power level	61 dB
Outdoor units quantity	1
Outdoor unit width	80 cm
Outdoor unit depth	27.5 cm
Outdoor unit height	55.3 cm
Outdoor unit weight	30 kg
Outdoor unit package width	90.8 cm
Outdoor unit package depth	40.5 cm
Outdoor unit package height	62.5 cm
Outdoor unit package weight	32.9 kg

Specification	Value
Manual	Yes
