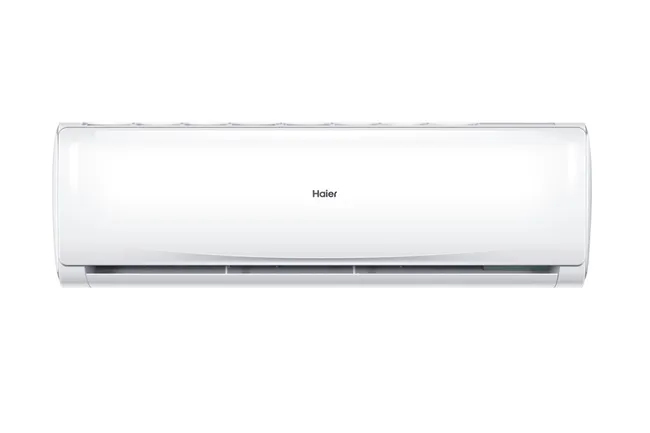

H1U09TAAOUT + HAS09TAAIN

Model H1U09TAAOUT + HAS09TAAINPart no. KITTRENDY09

78 specifications

Overview

78 specifications in 6 groups

Specification	Value
Type	Split system
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Heating
Inverter technology	Yes
Split system type	Mono split
Ionizer	Yes
Comfort sleeping mode	Yes
Seasonal efficiency rating (cooling) (SEER)	6.1
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
Cooling energy efficiency (EER, W/W)	3.23
Heating energy efficiency (COP, W/W)	3.71
Cooling capacity in watts (nominal)	2600 W
Cooling capacity in watts (min)	800 W
Cooling capacity in watts (max)	3000 W
Heating capacity in watts (nominal) (Average heating season)	2900 W
Heating capacity in watts (min)	800 W
Heating capacity in watts (max)	3200 W
Built-in display	Yes
Display type	LED
Timer	Yes
Timer duration (maximum)	24 h
Refrigerating medium	R32
Refrigerating medium weight	510 g
Auto fan	Yes
Compressor type	Rotary
Hose length (max)	20 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Dehumidifying capacity	1.2 l/h
Remotely operated	Yes
Maximum number of indoor units	1
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (cooling)	149 kWh
Annual energy consumption (heating) (Average heating season)	840 kWh
Power consumption (cooling) (min)	300 W
Power consumption (cooling) (max)	1200 W
Power consumption (heating) (min)	300 W
Power consumption (heating) (max)	1400 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current	6.2 A
Design load (cooling)	2.6 kW
Design load (heating) (Average heating season)	2.4 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Wi-Fi	Yes
Bluetooth	No

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	37 dB
Indoor unit sound power level	54 dB
Cooling airflow (indoor unit)	500 m³/h
Indoor units quantity	1
Indoor unit width	82 cm
Indoor unit depth	19.5 cm
Indoor unit height	28 cm
Indoor unit weight	8.2 kg
Indoor unit package width	90.9 cm
Indoor unit package depth	27.9 cm
Indoor unit package height	35.5 cm
Indoor unit package weight	10.5 kg

Specification	Value
Outdoor unit noise level	49 dB
Outdoor unit sound power level	62 dB
Outdoor units quantity	1
Outdoor unit width	70 cm
Outdoor unit depth	24.5 cm
Outdoor unit height	54.4 cm
Outdoor unit weight	22.8 kg
Outdoor unit package width	84.5 cm
Outdoor unit package depth	32 cm
Outdoor unit package height	59.3 cm
Outdoor unit package weight	25.3 kg
