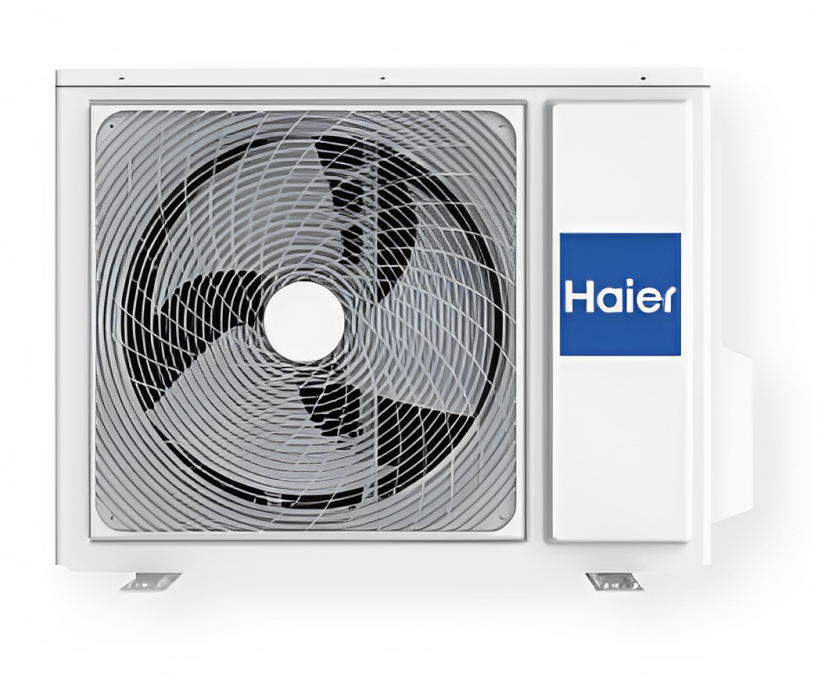

H1U09FAAOUT Air conditioner outdoor unit White
Model H1U09FAAOUTPart no. 3002301T2EAN 6932063803431
41 specifications
- Energy classA++
- TypeAir conditioner outdoor unit
- ColourWhite
- Outdoor units quantity1
Overview
- Energy class
- A++
- Type
- Air conditioner outdoor unit
- Colour
- White
- Outdoor units quantity
- 1
- Brand
- Haier
- Category
- Split-System Air Conditioner
- Model
- H1U09FAAOUT
- Part number
- 3002301T2
- EAN / UPC
- 6932063803431
- Also known as
- Haier H1U09FAAOUT Air conditioner outdoor unit White
Specifications
41 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Multi-split | No |
| Product colour | White |
| Air conditioner functions | Dehumidifying, Heating |
| Inverter technology | Yes |
| Ionizer | Yes |
| Comfort sleeping mode | Yes |
| Seasonal efficiency rating (cooling) (SEER) | 8.5 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 4.6 |
| Cooling energy efficiency (EER, W/W) | 4 |
| Heating energy efficiency (COP, W/W) | 4 |
| Cooling capacity in watts (nominal) | 2600 W |
| Cooling capacity in watts (min) | 800 W |
| Cooling capacity in watts (max) | 3200 W |
| Heating capacity in watts (nominal) (Average heating season) | 3200 W |
| Heating capacity in watts (min) | 800 W |
| Heating capacity in watts (max) | 4200 W |
| Built-in display | No |
| Refrigerating medium | R32 |
| Refrigerating medium weight | 630 g |
| Hose length (max) | 20 m |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Air filter | Yes |
| Dehumidifying capacity | 1.2 l/h |
| Maximum number of indoor units | 1 |
| Operating temperature (cooling) (T-T) | -20 - 43 °C |
| Operating temperature (heating) (T-T) | -20 - 43 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A++ |
| Annual energy consumption (cooling) | 107 kWh |
| Annual energy consumption (heating) (Average heating season) | 731 kWh |
| AC input frequency | 50 Hz |
| Current | 6.8 A |
| Design load (cooling) | 2.6 kW |
| Design load (heating) (Average heating season) | 2.4 kW |
| Energy efficiency class (cooling) (legacy scale) | A+++ |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor units quantity | 1 |
| Outdoor unit width | 80 cm |
| Outdoor unit depth | 27.5 cm |
| Outdoor unit height | 55.3 cm |
| Outdoor unit weight | 27.6 kg |
