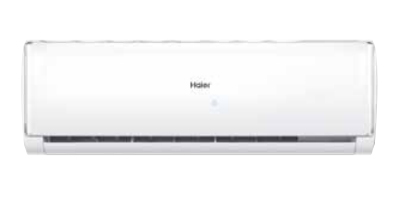

Geos+ Air conditioner indoor unit White
Model Geos+Part no. AS09TA2HRA-TH2EAN 6924362720663
46 specifications
- Energy classA+
- TypeAir conditioner indoor unit
- ColourWhite
- Indoor unit typeWall-mountable
Overview
- Energy class
- A+
- Type
- Air conditioner indoor unit
- Colour
- White
- Indoor unit type
- Wall-mountable
- Brand
- Haier
- Category
- Split-System Air Conditioner
- Model
- Geos+
- Part number
- AS09TA2HRA-TH2
- EAN / UPC
- 6924362720663, 6924362703000, 6924362720656, 6924362723282 +1 more
- Also known as
- Haier Geos+ Air conditioner indoor unit White
Specifications
46 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner indoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Seasonal efficiency rating (cooling) (SEER) | 6.2 |
| Cooling energy efficiency (EER, W/W) | 3.21 |
| Heating energy efficiency (COP, W/W) | 3.61 |
| Cooling capacity in watts (nominal) | 2600 W |
| Cooling capacity in watts (min) | 1000 W |
| Cooling capacity in watts (max) | 3500 W |
| Heating capacity in watts (nominal) (Average heating season) | 2810 W |
| Heating capacity in watts (min) | 1000 W |
| Heating capacity in watts (max) | 4400 W |
| Refrigerating medium | R410A |
| Refrigerating medium weight | 780 g |
| Hose length (max) | 15 m |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Operating temperature (cooling) (T-T) | 21 - 35 °C |
| Operating temperature (heating) (T-T) | 10 - 43 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Annual energy consumption (cooling) | 147 kWh |
| Annual energy consumption (heating) (Average heating season) | 841 kWh |
| Power consumption (cooling) (min) | 300 W |
| Power consumption (cooling) (max) | 1400 W |
| Power consumption (heating) (min) | 300 W |
| Power consumption (heating) (max) | 1500 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Design load (cooling) | 2.6 kW |
| Design load (heating) (Average heating season) | 2.4 kW |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit noise level (low speed) | 20 dB |
| Indoor unit noise level (high speed) | 36 dB |
| Indoor unit sound power level | 53 dB |
| Cooling airflow (indoor unit) | 500 m³/h |
| Indoor units quantity | 1 |
| Indoor unit width | 82 cm |
| Indoor unit depth | 19.5 cm |
| Indoor unit height | 28 cm |
| Indoor unit weight | 8.8 kg |
| Indoor unit package width | 90.9 cm |
| Indoor unit package depth | 27.9 cm |
| Indoor unit package height | 35.5 cm |
| Indoor unit package weight | 11 kg |
Other features
| Specification | Value |
|---|---|
| Seasonal efficiency rating (heating) (SCOP) | 4 |
