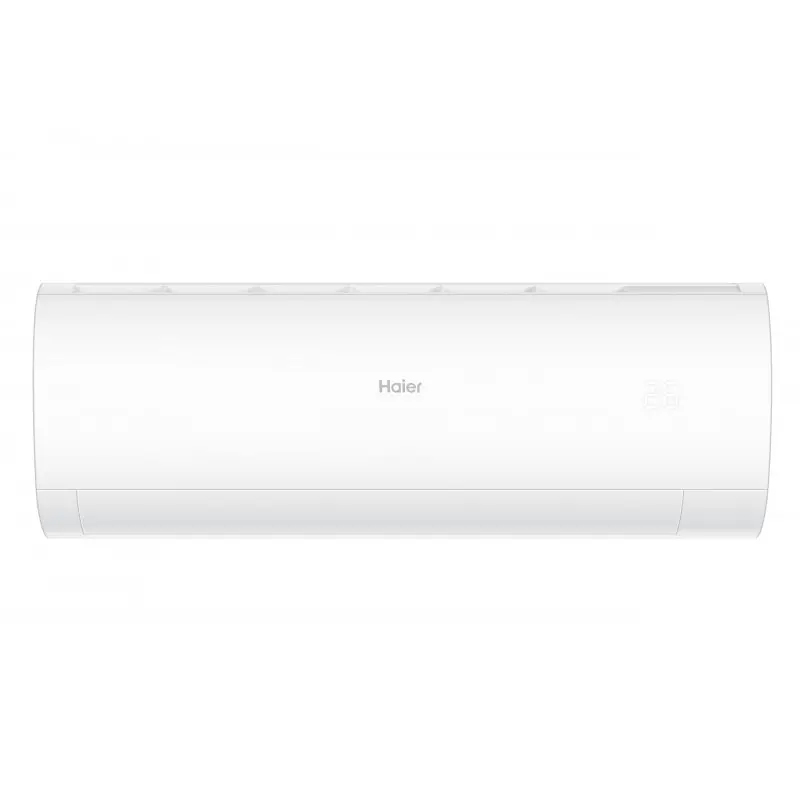

AS35PBAHRA Air conditioner indoor unit White

Model AS35PBAHRAPart no. 2501302HAEAN 6924362781510

65 specifications

Overview

65 specifications in 7 groups

Specification	Value
Type	Air conditioner indoor unit
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Heating
Inverter technology	Yes
Ionizer	No
Comfort sleeping mode	Yes
Turbo mode	Yes
Seasonal efficiency rating (cooling) (SEER)	6.1
Cooling energy efficiency (EER, W/W)	3.23
Heating energy efficiency (COP, W/W)	3.71
Cooling capacity in watts (nominal)	3200 W
Cooling capacity in watts (min)	800 W
Cooling capacity in watts (max)	3600 W
Heating capacity in watts (nominal) (Average heating season)	3400 W
Heating capacity in watts (min)	800 W
Heating capacity in watts (max)	4200 W
Built-in display	Yes
Display type	LED
Refrigerating medium	R32
Refrigerating medium weight	530 g
Hose length (max)	20 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Dehumidifying capacity	1.3 l/h
Remotely operated	Yes
Smartphone/tablet remote support	Yes
Operating temperature range indoor unit (cooling)	21 - 35 °C
Operating temperature range indoor unit (heating)	10 - 27 °C
Voice commands	Yes
Virtual assistant	Amazon Alexa & Google Assistant
Auto diagnostic	Yes
Auto-restart	Yes
Automatic hot/cold switching	No
Removable front panel	Yes

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (cooling)	184 kWh
Annual energy consumption (heating) (Average heating season)	980 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current	1 A
Design load (cooling)	3.2 kW
Design load (heating) (Average heating season)	2.8 kW
Energy saving mode	Yes
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Wi-Fi	Yes
Bluetooth	No

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	19 dB
Indoor unit noise level (high speed)	37 dB
Indoor unit sound power level	56 dB
Cooling airflow (indoor unit)	600 m³/h
Heating airflow (indoor unit)	600 m³/h
Indoor units quantity	1
Indoor unit width	80.5 cm
Indoor unit depth	20 cm
Indoor unit height	29 cm
Indoor unit weight	8.3 kg

Specification	Value
Remote control included	Yes

Specification	Value
Seasonal efficiency rating (heating) (SCOP)	4
Warranty period	2 year(s)
