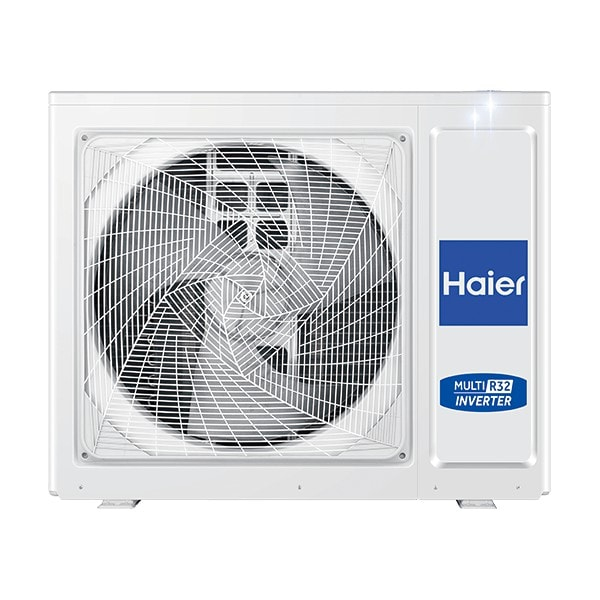

3U70S2SR5FA Air conditioner outdoor unit White
Model 3U70S2SR5FAPart no. 2502325M2EAN 6936294571336
52 specifications
- Energy classA+
- TypeAir conditioner outdoor unit
- ColourWhite
- Wi-FiNo
- Outdoor unit noise level53 dB
Overview
- Energy class
- A+
- Type
- Air conditioner outdoor unit
- Colour
- White
- Wi-Fi
- No
- Outdoor unit noise level
- 53 dB
- Brand
- Haier
- Category
- Split-System Air Conditioner
- Model
- 3U70S2SR5FA
- Part number
- 2502325M2
- EAN / UPC
- 6936294571336
- Also known as
- Haier 3U70S2SR5FA Air conditioner outdoor unit White
Specifications
52 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Multi-split | No |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Inverter technology | Yes |
| Ionizer | No |
| Comfort sleeping mode | No |
| Turbo mode | No |
| Seasonal efficiency rating (cooling) (SEER) | 8.5 |
| Cooling energy efficiency (EER, W/W) | 4 |
| Heating energy efficiency (COP, W/W) | 4 |
| Cooling capacity in watts (nominal) | 7000 W |
| Cooling capacity in watts (min) | 2400 W |
| Cooling capacity in watts (max) | 7600 W |
| Heating capacity in watts (nominal) (Colder heating season) | 7600 W |
| Heating capacity in watts (min) | 2900 W |
| Heating capacity in watts (max) | 8500 W |
| Built-in display | No |
| Timer | No |
| Refrigerating medium | R32 |
| Refrigerating medium weight | 1.6 kg |
| Compressor type | Twin Rotary |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Air filter | Yes |
| Operating temperature range outdoor unit (cooling) | -10 - 46 °C |
| Operating temperature range outdoor unit (heating) | -15 - 24 °C |
| Automatic hot/cold switching | No |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Energy efficiency class (heating) (Warmer heating season) | A+ |
| Annual energy consumption (cooling) | 296 kWh |
| Annual energy consumption (heating) (Average heating season) | 1782 kWh |
| AC input voltage | 220-240 V |
| AC input frequency | 50/60 Hz |
| Current | 1 A |
| Design load (cooling) | 7 kW |
| Design load (heating) (Average heating season) | 6 kW |
| Energy saving mode | Yes |
| Energy efficiency class (cooling) (legacy scale) | A+++ |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 53 dB |
| Outdoor unit sound power level | 66 dB |
| Cooling airflow (outdoor unit) | 3000 m³/h |
| Heating airflow (outdoor unit) | 3000 m³/h |
| Outdoor units quantity | 1 |
| Outdoor unit width | 89 cm |
| Outdoor unit depth | 34 cm |
| Outdoor unit height | 70 cm |
| Outdoor unit weight | 54 kg |
Other features
| Specification | Value |
|---|---|
| Seasonal efficiency rating (heating) (SCOP) | 4.4 |
| Warranty period | 2 year(s) |
