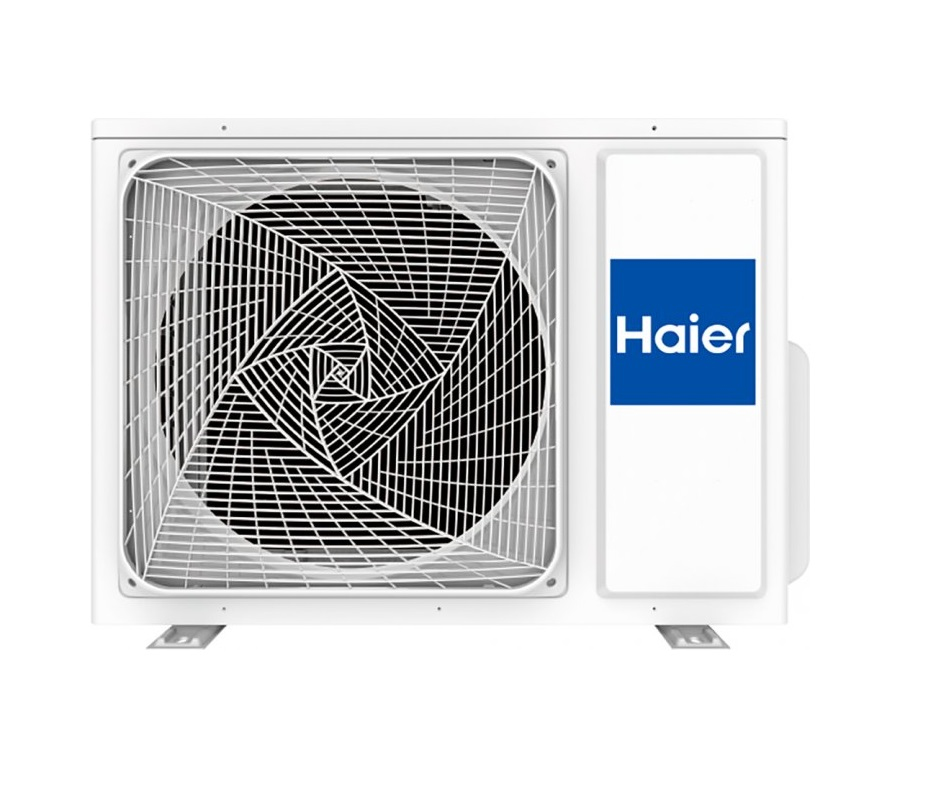

1U35YEGFRA-1 Air conditioner outdoor unit White
Model 1U35YEGFRA-1Part no. 2502302IAEAN 6924362752268
54 specifications
- Energy classA+
- TypeAir conditioner outdoor unit
- ColourWhite
- Wi-FiNo
- Outdoor unit noise level50 dB
Overview
- Energy class
- A+
- Type
- Air conditioner outdoor unit
- Colour
- White
- Wi-Fi
- No
- Outdoor unit noise level
- 50 dB
- Brand
- Haier
- Category
- Split-System Air Conditioner
- Model
- 1U35YEGFRA-1
- Part number
- 2502302IA
- EAN / UPC
- 6924362752268
- Also known as
- Haier 1U35YEGFRA-1 Air conditioner outdoor unit White
Specifications
54 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Multi-split | No |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Inverter technology | Yes |
| Ionizer | No |
| Comfort sleeping mode | No |
| Turbo mode | No |
| Wind deflector adjustment | Horizontal/Vertical |
| Seasonal efficiency rating (cooling) (SEER) | 6.1 |
| Cooling energy efficiency (EER, W/W) | 3.23 |
| Heating energy efficiency (COP, W/W) | 3.71 |
| Cooling capacity in watts (nominal) | 3200 W |
| Cooling capacity in watts (min) | 800 W |
| Cooling capacity in watts (max) | 3600 W |
| Heating capacity in watts (nominal) (Colder heating season) | 3400 W |
| Heating capacity in watts (min) | 800 W |
| Heating capacity in watts (max) | 4200 W |
| Built-in display | No |
| Timer | No |
| Refrigerating medium | R32 |
| Refrigerating medium weight | 530 g |
| Compressor type | Rotary |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Air filter | Yes |
| Operating temperature range outdoor unit (cooling) | -10 - 43 °C |
| Operating temperature range outdoor unit (heating) | -15 - 24 °C |
| Automatic hot/cold switching | No |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Energy efficiency class (heating) (Warmer heating season) | A+ |
| Annual energy consumption (cooling) | 184 kWh |
| Annual energy consumption (heating) (Average heating season) | 980 kWh |
| AC input voltage | 220-240 V |
| AC input frequency | 50 Hz |
| Current | 1 A |
| Design load (cooling) | 3.2 kW |
| Design load (heating) (Average heating season) | 2.8 kW |
| Energy saving mode | Yes |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 50 dB |
| Outdoor unit sound power level | 63 dB |
| Outdoor units quantity | 1 |
| Outdoor unit width | 70 cm |
| Outdoor unit depth | 24.5 cm |
| Outdoor unit height | 54.4 cm |
| Outdoor unit weight | 23.5 kg |
| Outdoor unit package width | 81.9 cm |
| Outdoor unit package depth | 32 cm |
| Outdoor unit package height | 58.5 cm |
Other features
| Specification | Value |
|---|---|
| Seasonal efficiency rating (heating) (SCOP) | 4 |
| Warranty period | 2 year(s) |
