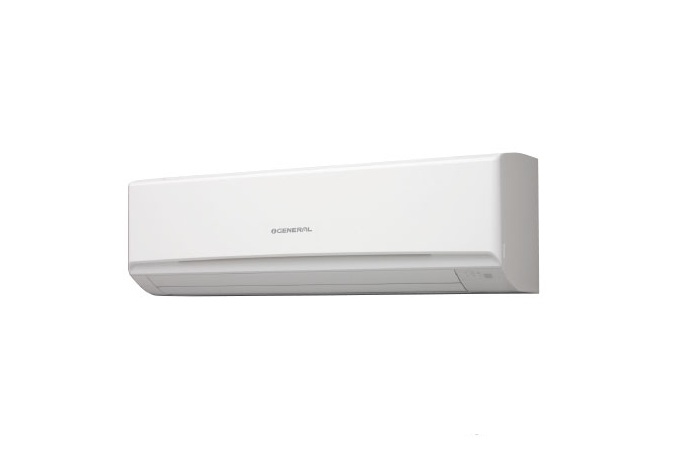

ASYG30LMTA Air conditioner indoor unit White
Model ASYG30LMTAPart no. 3NGF8190EAN 9990200019517
43 specifications
- TypeAir conditioner indoor unit
- ColourWhite
- Annual energy consumption (cooling)441 kWh
- Indoor unit typeWall-mountable
Overview
- Type
- Air conditioner indoor unit
- Colour
- White
- Annual energy consumption (cooling)
- 441 kWh
- Indoor unit type
- Wall-mountable
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- ASYG30LMTA
- Part number
- 3NGF8190
- EAN / UPC
- 9990200019517
- Also known as
- Fujitsu ASYG30LMTA Air conditioner indoor unit White
Specifications
43 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner indoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Dehumidifying, Fan, Heating |
| Suitable for room volume up to | 1380 m³ |
| Seasonal efficiency rating (cooling) (SEER) | 6.35 |
| Cooling energy efficiency (EER, W/W) | 3.43 |
| Heating energy efficiency (COP, W/W) | 3.65 |
| Cooling capacity in watts (nominal) | 8000 W |
| Cooling capacity in watts (min) | 2900 W |
| Cooling capacity in watts (max) | 9000 W |
| Heating capacity in watts (nominal) (Average heating season) | 8800 W |
| Heating capacity in watts (min) | 2200 W |
| Heating capacity in watts (max) | 11000 W |
| Timer | Yes |
| Refrigerating medium | R410A |
| Auto fan | Yes |
| Hose length (max) | 20 m |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Dehumidifying capacity | 2.7 l/h |
| Remotely operated | Yes |
| Operating temperature (cooling) (T-T) | -10 - 43 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Annual energy consumption (cooling) | 441 kWh |
| Annual energy consumption (heating) (Average heating season) | 2193 kWh |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current | 10.5 A |
| Current (cooling) | 14.5 A |
| Current (heating) | 14.5 A |
| Design load (cooling) | 2330 kW |
| Design load (heating) (Average heating season) | 2410 kW |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit noise level (low speed) | 38 dB |
| Indoor unit noise level (high speed) | 50 dB |
| Indoor unit sound power level | 44 dB |
| Indoor units quantity | 1 |
| Indoor unit width | 115 cm |
| Indoor unit depth | 28 cm |
| Indoor unit height | 34 cm |
| Indoor unit weight | 18 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Seasonal efficiency rating (heating) (SCOP) | 4.15 |
