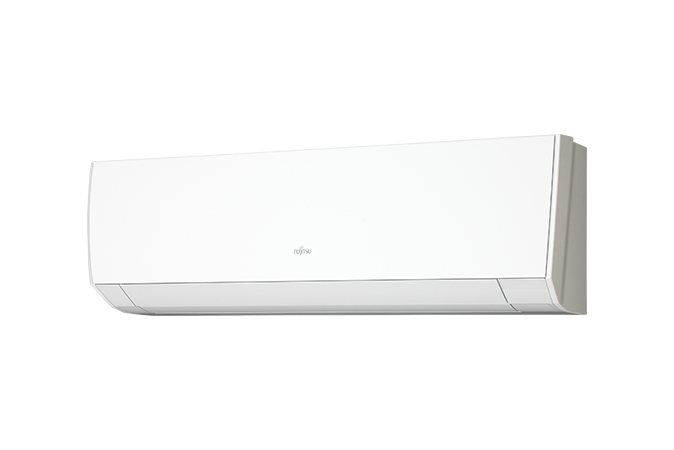

ASYG09LMCA Air conditioner indoor unit White
Model ASYG09LMCAPart no. 3NGF8121EAN 8435162750715
46 specifications
- Energy classA+
- TypeAir conditioner indoor unit
- ColourWhite
- Indoor unit typeWall-mountable
Overview
- Energy class
- A+
- Type
- Air conditioner indoor unit
- Colour
- White
- Indoor unit type
- Wall-mountable
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- ASYG09LMCA
- Part number
- 3NGF8121
- EAN / UPC
- 8435162750715
- Also known as
- Fujitsu ASYG09LMCA Air conditioner indoor unit White
Specifications
46 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner indoor unit |
| Multi-split | No |
| Product colour | White |
| Air conditioner functions | Cooling, Dehumidifying, Fan, Heating |
| Suitable for room volume up to | 750 m³ |
| Seasonal efficiency rating (cooling) (SEER) | 7 |
| Cooling energy efficiency (EER, W/W) | 3850 |
| Heating energy efficiency (COP, W/W) | 4380 |
| Cooling capacity in watts (nominal) | 2500 W |
| Heating capacity in watts (nominal) (Warmer heating season) | 2400 W |
| Heating capacity in watts (min) | 500 W |
| Heating capacity in watts (max) | 4000 W |
| Timer | Yes |
| Refrigerating medium | R410A |
| Auto fan | Yes |
| Hose length (max) | 20 m |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Remotely operated | Yes |
| Operating temperature (cooling) (T-T) | -10 - 43 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Energy efficiency class (heating) (Warmer heating season) | A+ |
| Annual energy consumption (cooling) | 125 kWh |
| Annual energy consumption (heating) (Warmer heating season) | 820 kWh |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 3.2 A |
| Current (heating) | 3.5 A |
| Design load (cooling) | 2500 kW |
| Design load (heating) (Average heating season) | 2400 kW |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit noise level (low speed) | 29 dB |
| Indoor unit noise level (high speed) | 37 dB |
| Indoor unit sound power level | 33 dB |
| Cooling airflow (indoor unit) | 600 m³/h |
| Heating airflow (indoor unit) | 600 m³/h |
| Indoor units quantity | 1 |
| Indoor unit width | 84 cm |
| Indoor unit depth | 20.3 cm |
| Indoor unit height | 26.8 cm |
| Indoor unit weight | 8.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Seasonal efficiency rating (heating) (SCOP) | 4.1 |
