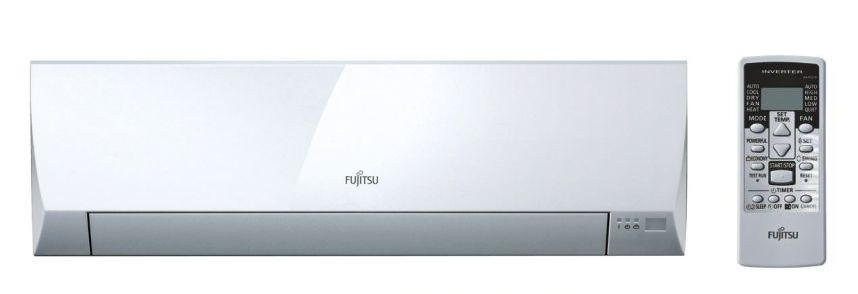

ASYG09LLC Air conditioner indoor unit
Model ASYG09LLCPart no. 3NGF8700EAN 8432596021312
32 specifications
- Energy classA
- Noise43 dB
- TypeAir conditioner indoor unit
- Indoor unit typeWall-mountable
- Adjustable thermostatYes
Overview
- Energy class
- A
- Noise
- 43 dB
- Type
- Air conditioner indoor unit
- Indoor unit type
- Wall-mountable
- Adjustable thermostat
- Yes
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- ASYG09LLC
- Part numbers
- 3NGF8700, 3NGF8705
- EAN / UPC
- 8432596021312
- Also known as
- Fujitsu ASYG09LLC Air conditioner indoor unit
Specifications
32 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner indoor unit |
| Air conditioner functions | Cooling, Dehumidifying, Heating |
| Inverter technology | Yes |
| Seasonal efficiency rating (cooling) (SEER) | 6.10 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 3.46 |
| Cooling capacity in watts (min) | 900 W |
| Cooling capacity in watts (max) | 3000 W |
| Heating capacity in watts (min) | 900 W |
| Heating capacity in watts (max) | 3600 W |
| Timer | Yes |
| Timer duration (maximum) | 12 h |
| Hose length (max) | 15 m |
| Hose diameter | 1.38 cm |
| Dehumidifying capacity | 1.3 l/h |
| Remotely operated | Yes |
| Operating temperature (cooling) (T-T) | 18 - 43 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A |
| Annual energy consumption (cooling) | 143 kWh |
| Annual energy consumption (heating) (Average heating season) | 942 kWh |
| Power consumption (cooling) (max) | 745 W |
| Power consumption (heating) (max) | 865 W |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor units quantity | 1 |
| Indoor unit weight | 7.5 kg |
| Indoor unit dimensions (WxDxH) | 820 x 206 x 262 mm |
Sound emission
| Specification | Value |
|---|---|
| Noise level (high speed) | 43 dB |
| Noise level (low speed) | 33 dB |
| Noise level (medium speed) | 38 dB |
Technical details
| Specification | Value |
|---|---|
| Adjustable thermostat | Yes |
| Airflow | 720 m³/h |
