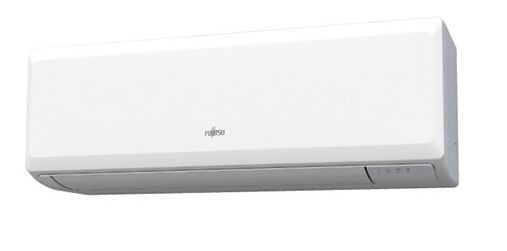

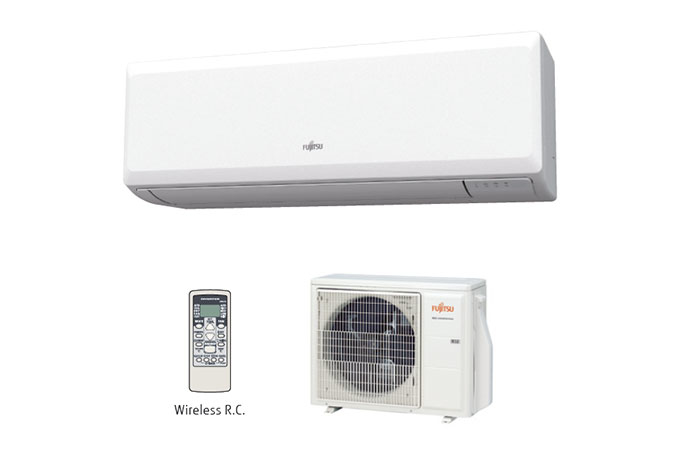

ASYG09KPCA air conditioner Air conditioner indoor unit White

Model ASYG09KPCAEAN 8432884540099

55 specifications

Overview

Brand: Fujitsu
Category: Split-System Air Conditioner
Model: ASYG09KPCA
Part number: ASYG09KPCA
EAN / UPC: 8432884540099
Also known as: Fujitsu ASYG09KPCA air conditioner Air conditioner indoor unit White

55 specifications in 5 groups

Specification	Value
Type	Air conditioner indoor unit
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Heating
Inverter technology	Yes
Seasonal efficiency rating (cooling) (SEER)	6.7
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	5.1
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
Cooling energy efficiency (EER, W/W)	3.52
Heating energy efficiency (COP, W/W)	3.54
Cooling capacity in watts (nominal)	2500 W
Cooling capacity in watts (min)	900 W
Cooling capacity in watts (max)	3000 W
Heating capacity in watts (nominal) (Average heating season)	2800 W
Heating capacity in watts (min)	900 W
Heating capacity in watts (max)	3800 W
Timer	Yes
Refrigerating medium	R32
Refrigerating medium weight	550 g
Hose length (max)	20 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Dehumidifying capacity	1.3 l/h
Remotely operated	Yes
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+
Energy efficiency class (heating) (Warmer heating season)	A+++
Hourly energy consumption (cooling)	0.71 kWh
Hourly energy consumption (heating)	0.79 kWh
Annual energy consumption (cooling)	131 kWh
Annual energy consumption (heating) (Warmer heating season)	356 kWh
Annual energy consumption (heating) (Average heating season)	840 kWh
AC input voltage	230 V
AC input frequency	50 Hz
Current (cooling)	6.5 A
Current (heating)	9 A
Design load (cooling)	2.5 kW
Design load (heating) (Average heating season)	2.4 kW
Design load (heating) (Warmer heating season)	1.3 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Wi-Fi ready	Yes

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	22 dB
Indoor unit noise level (high speed)	45 dB
Indoor unit sound power level	58 dB
Cooling airflow (indoor unit)	630 m³/h
Indoor units quantity	1
Indoor unit width	78.4 cm
Indoor unit depth	22.4 cm
Indoor unit height	27 cm
Indoor unit weight	8 kg

Specification	Value
Remote control included	Yes
