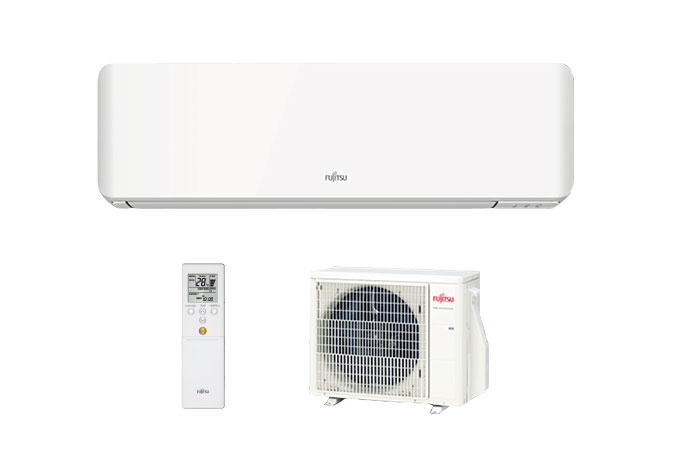

ASYG09KMTA/AOYG09KMTA Split system White

Model ASYG09KMTA/AOYG09KMTAPart no. 3NGF87015EAN 8432884201044

60 specifications

Overview

60 specifications in 6 groups

Specification	Value
Type	Split system
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Heating
Comfort sleeping mode	Yes
Seasonal efficiency rating (cooling) (SEER)	7.4
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.1
Cooling energy efficiency (EER, W/W)	3.97
Heating energy efficiency (COP, W/W)	4.52
Cooling capacity in watts (nominal)	2500 W
Cooling capacity in watts (min)	900 W
Cooling capacity in watts (max)	3200 W
Heating capacity in watts (nominal) (Average heating season)	2800 W
Heating capacity in watts (min)	900 W
Heating capacity in watts (max)	4000 W
Timer	Yes
Timer duration (maximum)	24 h
Refrigerating medium	R32
Refrigerating medium weight	600 g
Auto fan	Yes
Hose length (max)	20 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Dehumidifying capacity	1.3 l/h
Remotely operated	Yes
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+
Hourly energy consumption (cooling)	0.63 kWh
Hourly energy consumption (heating)	0.62 kWh
Annual energy consumption (cooling)	118 kWh
Annual energy consumption (heating) (Average heating season)	819 kWh
AC input voltage	230 V
AC input frequency	50 Hz
Current (cooling)	6.5 A
Current (heating)	9 A
Design load (cooling)	2.5 kW
Design load (heating) (Average heating season)	2.4 kW
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	20 dB
Indoor unit noise level (high speed)	42 dB
Indoor unit sound power level	57 dB
Cooling airflow (indoor unit)	700 m³/h
Indoor units quantity	1
Indoor unit width	83.4 cm
Indoor unit depth	22.2 cm
Indoor unit height	27 cm
Indoor unit weight	10 kg

Specification	Value
Outdoor unit noise level	46 dB
Outdoor unit sound power level	62 dB
Cooling airflow (outdoor unit)	1650 m³/h
Outdoor units quantity	1
Outdoor unit width	66.3 cm
Outdoor unit depth	29 cm
Outdoor unit height	54.1 cm
Outdoor unit weight	23 kg

Specification	Value
Remote control included	Yes

Specification	Value
Seasonal efficiency rating (heating) (SCOP)	4.1
