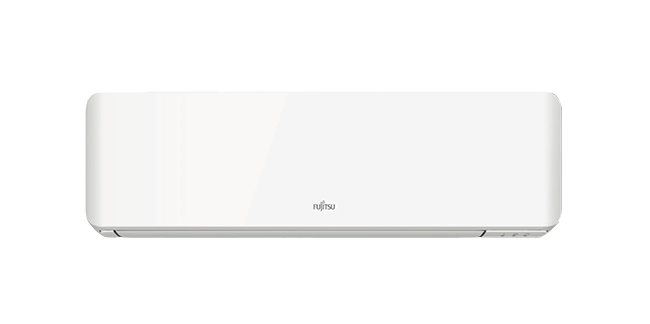

ASYG09KMTA Air conditioner indoor unit White
Model ASYG09KMTAPart no. 3NGF87016EAN 8432884201051
46 specifications
- Energy classA+
- TypeAir conditioner indoor unit
- ColourWhite
- Wi-FiYes
- Indoor unit typeWall-mountable
Overview
- Energy class
- A+
- Type
- Air conditioner indoor unit
- Colour
- White
- Wi-Fi
- Yes
- Indoor unit type
- Wall-mountable
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- ASYG09KMTA
- Part number
- 3NGF87016
- EAN / UPC
- 8432884201051
- Also known as
- Fujitsu ASYG09KMTA Air conditioner indoor unit White
Specifications
46 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner indoor unit |
| Multi-split | No |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Ionizer | No |
| Comfort sleeping mode | Yes |
| Seasonal efficiency rating (cooling) (SEER) | 7.4 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 4.1 |
| Cooling energy efficiency (EER, W/W) | 3.97 |
| Heating energy efficiency (COP, W/W) | 4.52 |
| Cooling capacity in watts (nominal) | 2500 W |
| Cooling capacity in watts (min) | 900 W |
| Cooling capacity in watts (max) | 3200 W |
| Heating capacity in watts (nominal) (Average heating season) | 2800 W |
| Heating capacity in watts (min) | 900 W |
| Heating capacity in watts (max) | 4000 W |
| Timer | Yes |
| Auto fan | Yes |
| Hose length (max) | 15 m |
| Gas hose diameter | 9.5 mm |
| Liquid hose diameter | 6.35 mm |
| Air filter | Yes |
| Dehumidifying capacity | 1.3 l/h |
| Remotely operated | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 6.5 A |
| Current (heating) | 9 A |
| Design load (cooling) | 2.5 kW |
| Design load (heating) (Average heating season) | 2.4 kW |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit noise level (low speed) | 29 dB |
| Indoor unit noise level (high speed) | 46 dB |
| Indoor unit sound power level | 40 dB |
| Cooling airflow (indoor unit) | 700 m³/h |
| Heating airflow (indoor unit) | 700 m³/h |
| Indoor units quantity | 1 |
| Indoor unit width | 83.4 cm |
| Indoor unit depth | 22.2 cm |
| Indoor unit height | 27 cm |
| Indoor unit weight | 10 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Remote control included | Yes |
