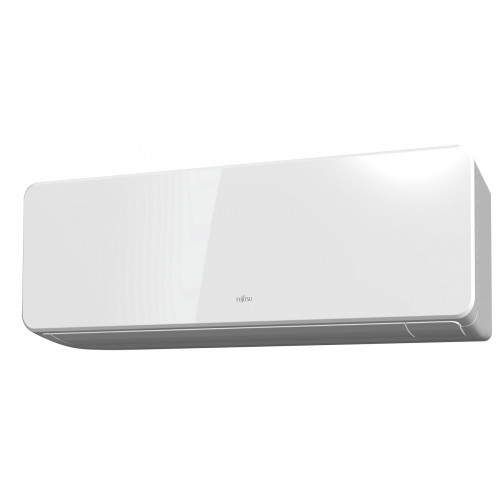

ASYG09KGTA Air conditioner indoor unit White
Model ASYG09KGTAPart no. 3NGF7640EAN 8432884197859
35 specifications
- Energy classA+++
- TypeAir conditioner indoor unit
- ColourWhite
- Indoor unit typeWall-mountable
Overview
- Energy class
- A+++
- Type
- Air conditioner indoor unit
- Colour
- White
- Indoor unit type
- Wall-mountable
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- ASYG09KGTA
- Part numbers
- 3NGF7640, 3NGF7641
- EAN / UPC
- 8432884197859, 8432884197866
- Also known as
- Fujitsu ASYG09KGTA Air conditioner indoor unit White
Specifications
35 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner indoor unit |
| Product colour | White |
| Air conditioner functions | Circulation, Cooling, Dehumidifying, Fan, Heating, Ventilating |
| Inverter technology | Yes |
| Comfort sleeping mode | Yes |
| Seasonal efficiency rating (cooling) (SEER) | 8.52 |
| Cooling energy efficiency (EER, W/W) | 4.5 |
| Heating energy efficiency (COP, W/W) | 5 |
| Refrigerating medium | R32 |
| Refrigerating medium weight | 750 g |
| Dehumidifying capacity | 1.3 l/h |
| Operating temperature (cooling) (T-T) | -10 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+++ |
| Hourly energy consumption (cooling) | 2.5 kWh |
| Hourly energy consumption (heating) | 2.8 kWh |
| Annual energy consumption (cooling) | 103 kWh |
| Annual energy consumption (heating) (Warmer heating season) | 658 kWh |
| Current (cooling) | 6.5 A |
| Current (heating) | 9 A |
| Design load (cooling) | 2.5 kW |
| Design load (heating) (Warmer heating season) | 2.4 kW |
| Energy efficiency class (cooling) (legacy scale) | A+++ |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit noise level (low speed) | 21 dB |
| Indoor unit noise level (high speed) | 42 dB |
| Indoor unit sound power level | 55 dB |
| Cooling airflow (indoor unit) | 700 m³/h |
| Indoor units quantity | 1 |
| Indoor unit width | 83.4 cm |
| Indoor unit depth | 21.5 cm |
| Indoor unit height | 27 cm |
| Indoor unit weight | 10 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Seasonal efficiency rating (heating) (SCOP) | 5.11 |
