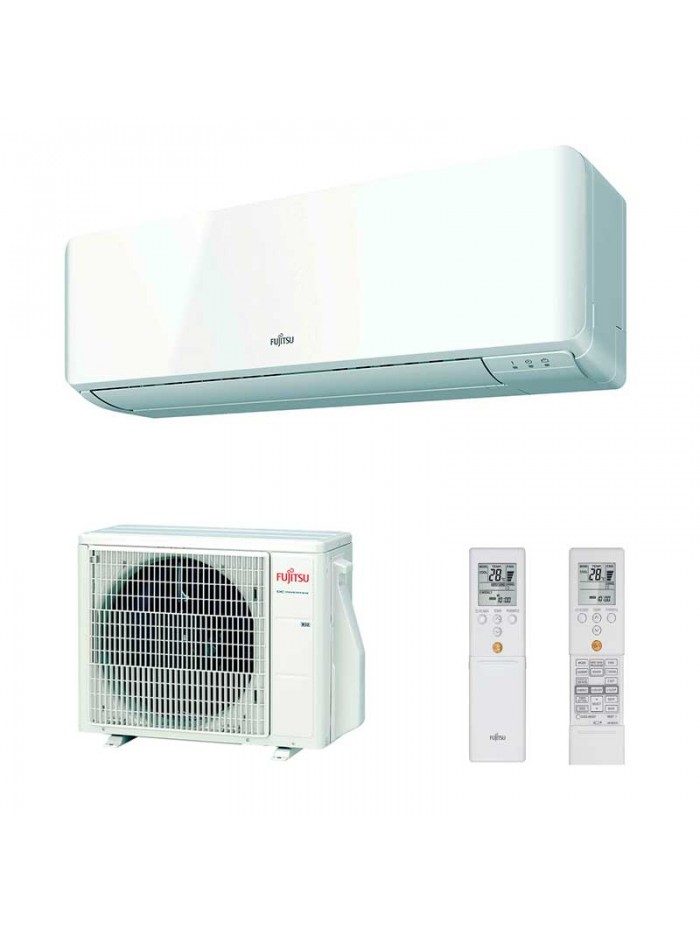

ASY40UI-KM Split system White
Model ASY40UI-KMPart no. 3NGF87025EAN 8432884201105
58 specifications
- Energy classA+
- TypeSplit system
- ColourWhite
- Wi-FiYes
- Indoor unit typeWall-mountable
- Outdoor unit noise level50 dB
Overview
- Energy class
- A+
- Type
- Split system
- Colour
- White
- Wi-Fi
- Yes
- Indoor unit type
- Wall-mountable
- Outdoor unit noise level
- 50 dB
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- ASY40UI-KM
- Part number
- 3NGF87025
- EAN / UPC
- 8432884201105
- Also known as
- Fujitsu ASY40UI-KM Split system White
Specifications
58 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | Split system |
| Multi-split | Yes |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Inverter technology | Yes |
| Comfort sleeping mode | Yes |
| Seasonal efficiency rating (cooling) (SEER) | 6.9 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 4.1 |
| Cooling energy efficiency (EER, W/W) | 3.44 |
| Heating energy efficiency (COP, W/W) | 3.83 |
| Cooling capacity in watts (nominal) | 3440 W |
| Cooling capacity in watts (min) | 774 W |
| Cooling capacity in watts (max) | 3784 W |
| Heating capacity in watts (nominal) (Average heating season) | 4000 W |
| Heating capacity in watts (min) | 774 W |
| Heating capacity in watts (max) | 3784 W |
| Timer | Yes |
| Refrigerating medium | R32 |
| Refrigerating medium weight | 700 g |
| Auto fan | Yes |
| Compressor type | Rotary |
| Hose length (max) | 15 m |
| Gas hose diameter | 9.5 mm |
| Liquid hose diameter | 6.35 mm |
| Air filter | Yes |
| Remotely operated | Yes |
| Smartphone/tablet remote support | Yes |
| Operating temperature (cooling) (T-T) | -10 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 6.5 A |
| Current (heating) | 9 A |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |

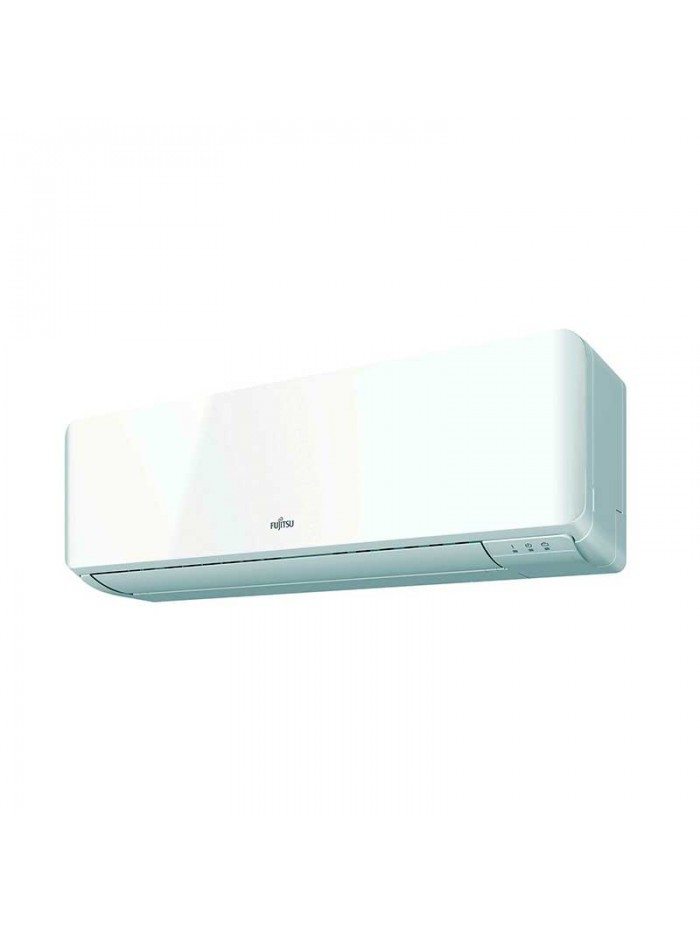

Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit noise level (low speed) | 30 dB |
| Indoor unit noise level (high speed) | 50 dB |
| Indoor unit sound power level | 43 dB |
| Cooling airflow (indoor unit) | 770 m³/h |
| Heating airflow (indoor unit) | 770 m³/h |
| Indoor units quantity | 1 |
| Indoor unit width | 83.4 cm |
| Indoor unit depth | 22.2 cm |
| Indoor unit height | 27 cm |
| Indoor unit weight | 10 kg |

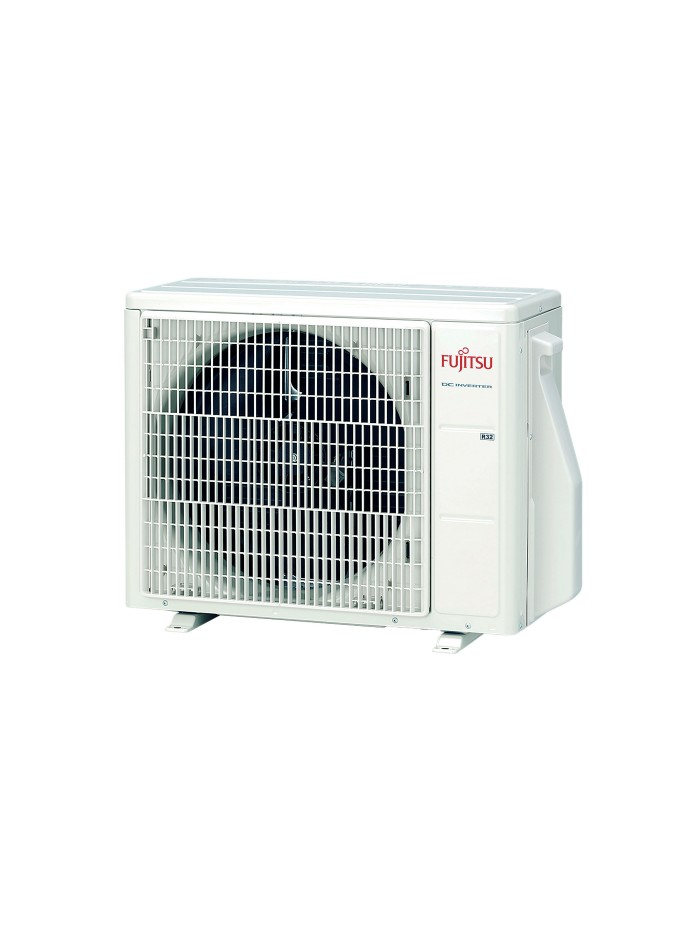

Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 50 dB |
| Outdoor unit sound power level | 50 dB |
| Cooling airflow (outdoor unit) | 800 m³/h |
| Heating airflow (outdoor unit) | 800 m³/h |
| Outdoor units quantity | 1 |
| Outdoor unit width | 79.9 cm |
| Outdoor unit depth | 29 cm |
| Outdoor unit height | 54.2 cm |
| Outdoor unit weight | 31 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |

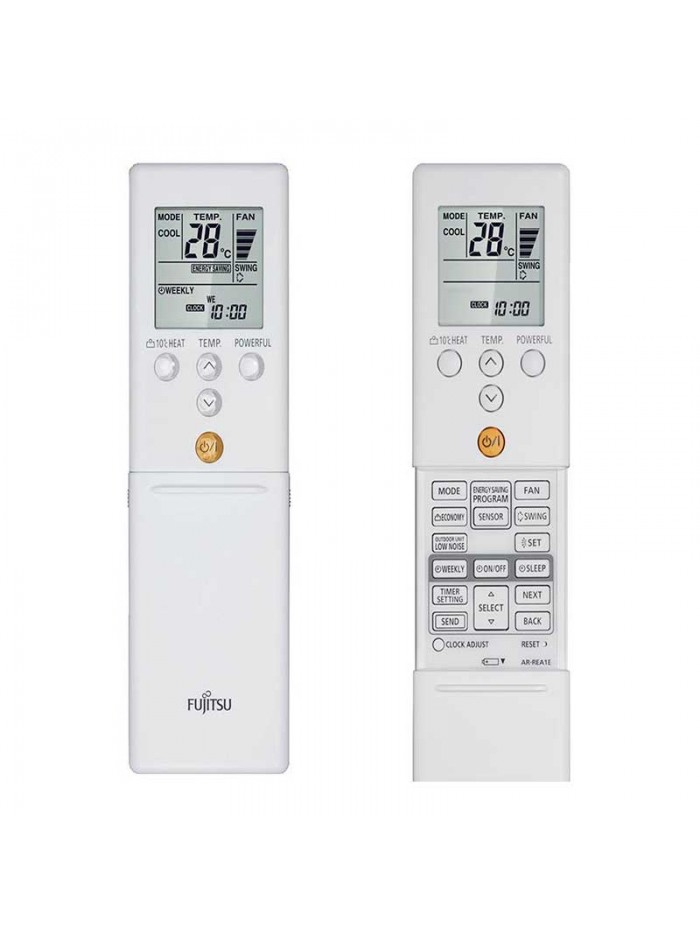

| Remote control included | Yes |
