ASY35-KE WIFI
Model ASY35-KE WIFIPart no. 3NGF87240EAN 8432884628711
53 specifications
- Energy classA+
- TypeSplit system
- ColourWhite
- Wi-FiYes
- Indoor unit typeWall-mountable
- Outdoor unit noise level50 dB
Overview
- Energy class
- A+
- Type
- Split system
- Colour
- White
- Wi-Fi
- Yes
- Indoor unit type
- Wall-mountable
- Outdoor unit noise level
- 50 dB
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- ASY35-KE WIFI
- Part numbers
- 3NGF87240, 3NGF87260
- EAN / UPC
- 8432884628711, 8432884628797
- Also known as
- Fujitsu ASY35-KE WIFI Split system White
Specifications
53 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Type | Split system |
| Product colour | White |
| Air conditioner functions | Cooling, Dehumidifying, Heating |
| Seasonal efficiency rating (cooling) (SEER) | 7.3 |
| Cooling energy efficiency (EER, W/W) | 3.65 |
| Heating energy efficiency (COP, W/W) | 4.17 |
| Cooling capacity in watts (nominal) | 3400 W |
| Cooling capacity in watts (min) | 900 W |
| Cooling capacity in watts (max) | 3900 W |
| Heating capacity in watts (nominal) (Average heating season) | 4000 W |
| Heating capacity in watts (min) | 900 W |
| Heating capacity in watts (max) | 5300 W |
| Refrigerating medium | R32 |
| Refrigerating medium weight | 700 g |
| Hose length (min) | 15 m |
| Hose length (max) | 20 m |
| Dehumidifying capacity | 1.8 l/h |
| Remotely operated | Yes |
| Operating temperature (cooling) (T-T) | -10 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Annual energy consumption (cooling) | 163 kWh |
| Annual energy consumption (heating) (Average heating season) | 795 kWh |
| Power consumption (cooling) (max) | 935 W |
| Power consumption (heating) (max) | 960 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 6.5 A |
| Current (heating) | 9 A |
| Design load (cooling) | 3.4 kW |
| Design load (heating) (Average heating season) | 2.5 kW |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |

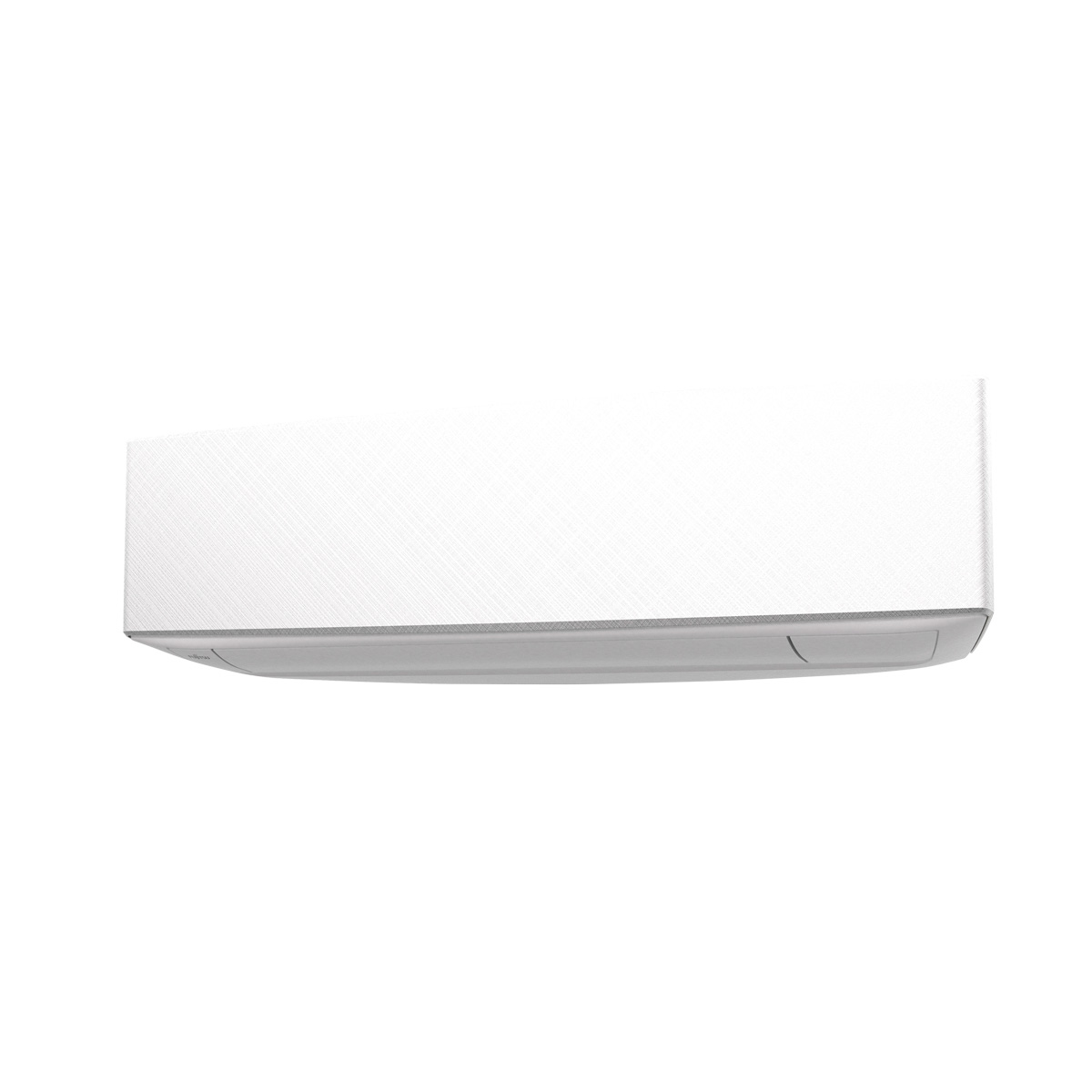

Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit sound power level | 58 dB |
| Cooling airflow (indoor unit) | 700 m³/h |
| Heating airflow (indoor unit) | 770 m³/h |
| Indoor units quantity | 1 |
| Indoor unit width | 95 cm |
| Indoor unit depth | 23 cm |
| Indoor unit height | 29.5 cm |
| Indoor unit weight | 11 kg |

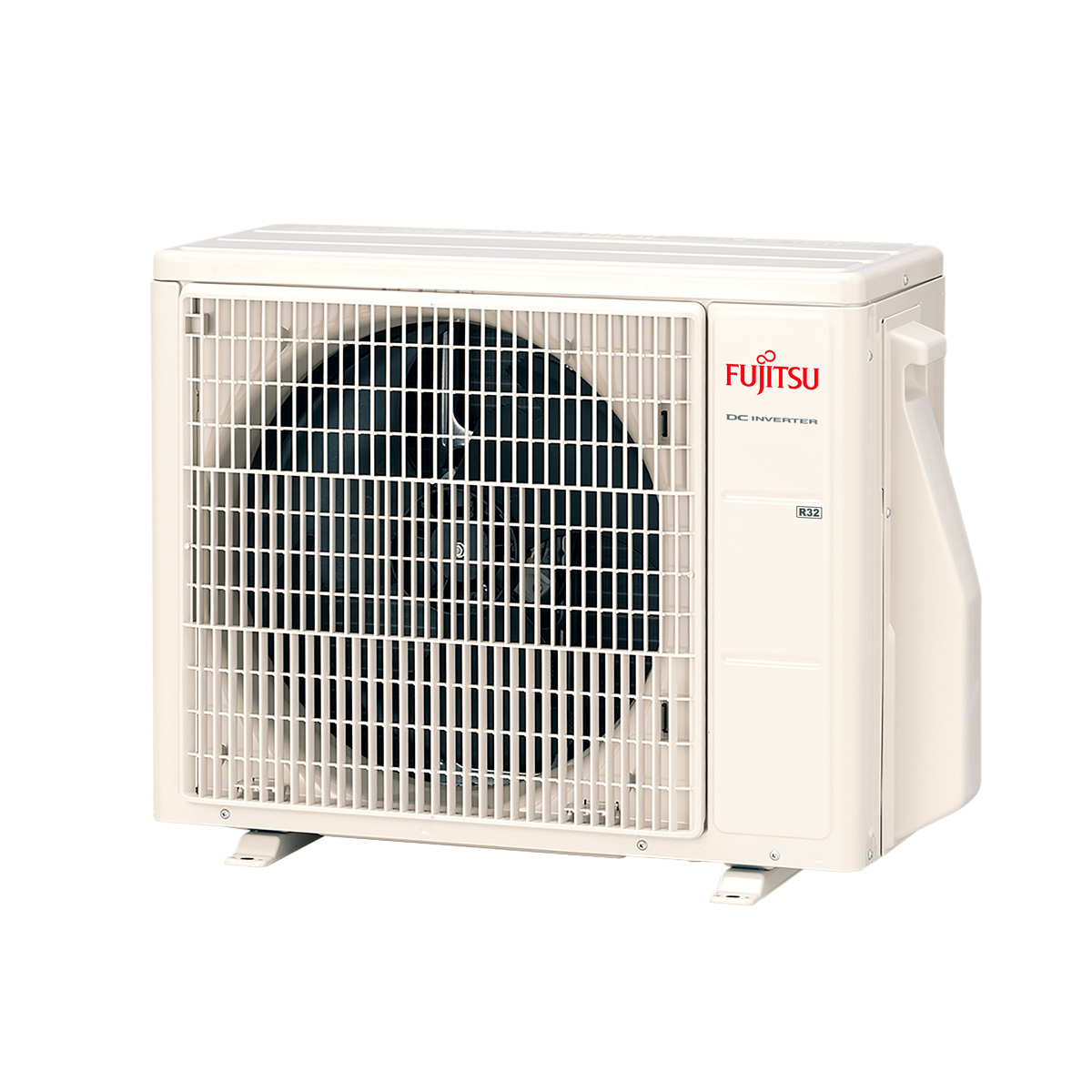

Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 50 dB |
| Outdoor unit sound power level | 65 dB |
| Cooling airflow (outdoor unit) | 1700 m³/h |
| Heating airflow (outdoor unit) | 1470 m³/h |
| Outdoor units quantity | 1 |
| Outdoor unit width | 66.3 cm |
| Outdoor unit depth | 29 cm |
| Outdoor unit height | 54.1 cm |
| Outdoor unit weight | 25 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Seasonal efficiency rating (heating) (SCOP) | 4.4 |
