ASY 25 Ui-LLCC
Model ASY 25 Ui-LLCCPart no. ASY 25 UI-LLCCEAN 4974437608091
57 specifications
- Energy classA+
- TypeSplit system
- ColourWhite
- Indoor unit typeWall-mountable
- Outdoor unit noise level47 dB
Overview
- Energy class
- A+
- Type
- Split system
- Colour
- White
- Indoor unit type
- Wall-mountable
- Outdoor unit noise level
- 47 dB
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- ASY 25 Ui-LLCC
- Part number
- ASY 25 UI-LLCC
- EAN / UPC
- 4974437608091
- Also known as
- Fujitsu ASY 25 Ui-LLCC Split system White
Specifications
57 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | Split system |
| Multi-split | Yes |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Inverter technology | Yes |
| Comfort sleeping mode | Yes |
| Thermostat range | -10 - 43 °C |
| Seasonal efficiency rating (cooling) (SEER) | 6.9 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 4 |
| Cooling capacity in watts (nominal) | 2500 W |
| Cooling capacity in watts (min) | 900 W |
| Cooling capacity in watts (max) | 3000 W |
| Heating capacity in watts (nominal) (Average heating season) | 3000 W |
| Heating capacity in watts (min) | 900 W |
| Heating capacity in watts (max) | 3800 W |
| Cooling capacity (min) | 774 BTU/h |
| Cooling capacity (max) | 2580 BTU/h |
| Heating capacity (min) | 774 BTU/h |
| Heating capacity (max) | 2580 BTU/h |
| Timer | Yes |
| Refrigerating medium | R410A |
| Auto fan | Yes |
| Hose length (max) | 20 m |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Air filter | Yes |
| Remotely operated | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Hourly energy consumption (cooling) | 0.73 kWh |
| Hourly energy consumption (heating) | 0.74 kWh |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current | 1 A |
| Current (cooling) | 3.5 A |
| Current (heating) | 3.5 A |
| Energy efficiency class (cooling) (legacy scale) | A++ |

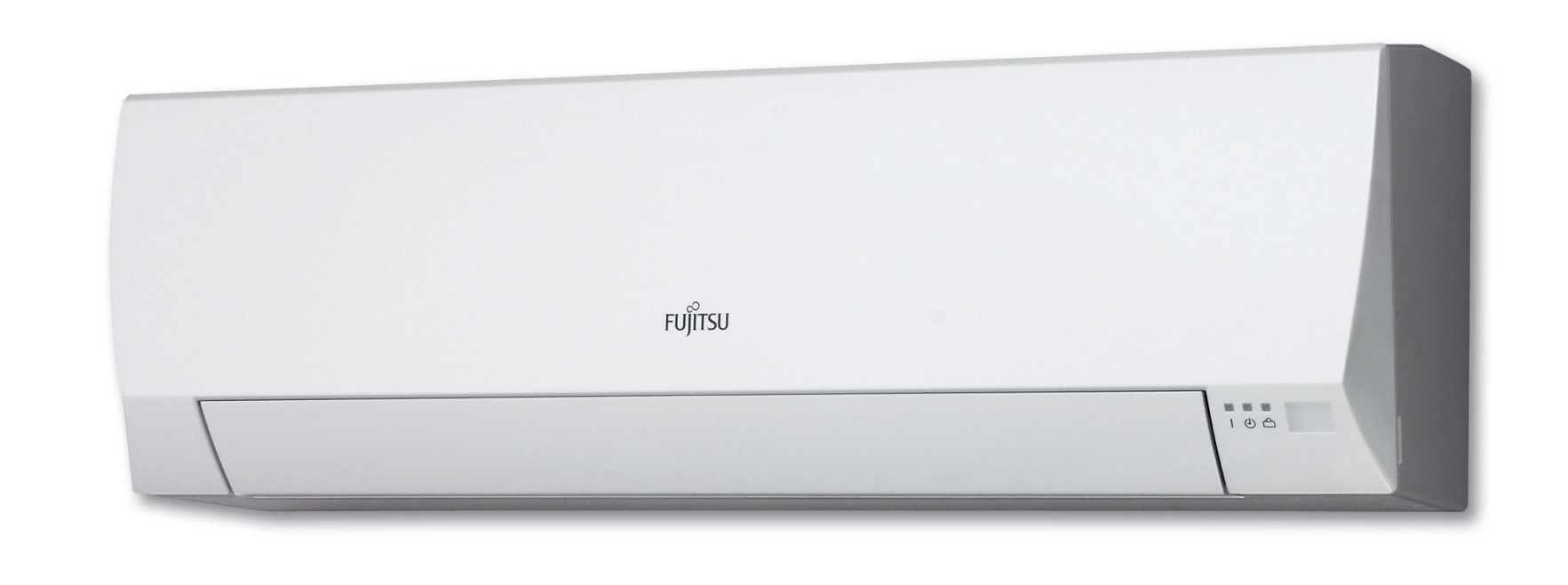

Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit noise level (low speed) | 22 dB |
| Indoor unit noise level (high speed) | 43 dB |
| Indoor unit sound power level | 38 dB |
| Cooling airflow (indoor unit) | 720 m³/h |
| Heating airflow (indoor unit) | 720 m³/h |
| Indoor units quantity | 1 |
| Indoor unit width | 82 cm |
| Indoor unit depth | 20.6 cm |
| Indoor unit height | 26.2 cm |
| Indoor unit weight | 7 kg |

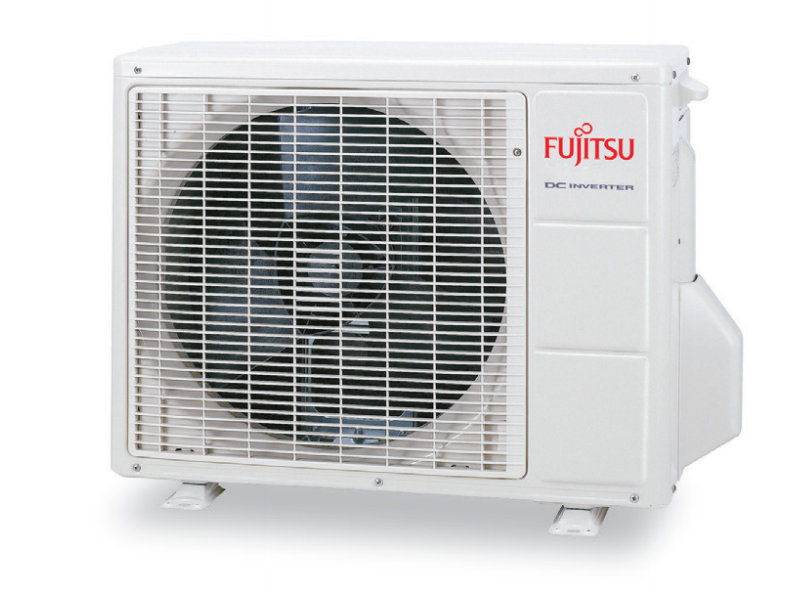

Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 47 dB |
| Cooling airflow (outdoor unit) | 1670 m³/h |
| Heating airflow (outdoor unit) | 1670 m³/h |
| Outdoor units quantity | 1 |
| Outdoor unit width | 66.3 cm |
| Outdoor unit depth | 29.3 cm |
| Outdoor unit height | 53.5 cm |
| Outdoor unit weight | 24 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |

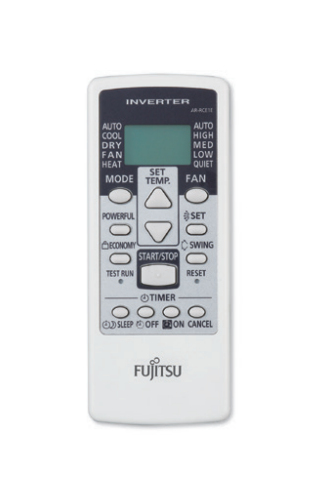

| Remote control included | Yes |
