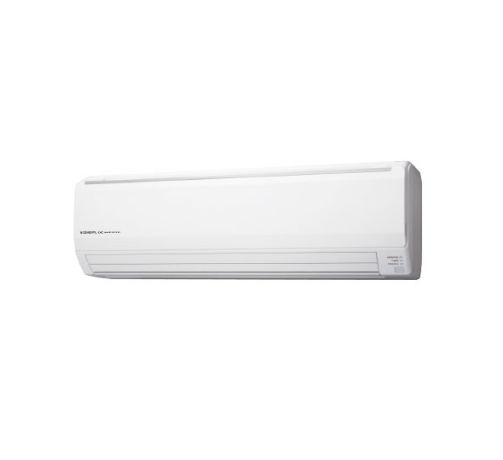

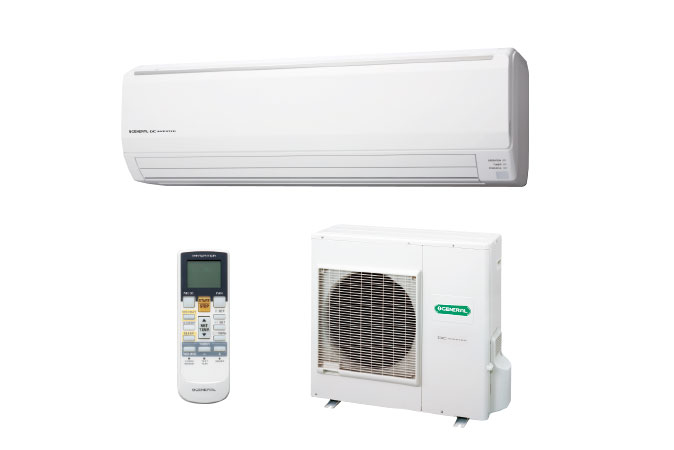

ASHG30LFCA Air conditioner indoor unit White
Model ASHG30LFCAPart no. ASHG-30LFCA
43 specifications
- Energy classA
- TypeAir conditioner indoor unit
- ColourWhite
- Indoor unit typeWall-mountable
Overview
- Energy class
- A
- Type
- Air conditioner indoor unit
- Colour
- White
- Indoor unit type
- Wall-mountable
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- ASHG30LFCA
- Part number
- ASHG-30LFCA
- Also known as
- Fujitsu ASHG30LFCA Air conditioner indoor unit White
Specifications
43 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner indoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Ionizer | Yes |
| Seasonal efficiency rating (cooling) (SEER) | 5.69 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 3.8 |
| Cooling energy efficiency (EER, W/W) | 3.21 |
| Heating energy efficiency (COP, W/W) | 3.61 |
| Cooling capacity in watts (nominal) | 8000 W |
| Cooling capacity in watts (min) | 2900 W |
| Cooling capacity in watts (max) | 9000 W |
| Heating capacity in watts (nominal) (Average heating season) | 8800 W |
| Heating capacity in watts (min) | 2200 W |
| Heating capacity in watts (max) | 11000 W |
| Built-in display | No |
| Timer | Yes |
| Refrigerating medium | R410A |
| Auto fan | Yes |
| Hose length (max) | 50 m |
| Gas hose diameter | 1.59 cm |
| Drain hose diameter | 1.2 cm |
| Liquid hose diameter | 9.52 mm |
| Air filter | Yes |
| Dehumidifying capacity | 3.2 l/h |
| Operating temperature (cooling) (T-T) | -10 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A |
| Annual energy consumption (cooling) | 492 kWh |
| Annual energy consumption (heating) (Average heating season) | 2941 kWh |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 17 A |
| Current (heating) | 19 A |
| Design load (cooling) | 8 kW |
| Design load (heating) (Colder heating season) | 8 kW |
| Energy efficiency class (cooling) (legacy scale) | A+ |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor units quantity | 1 |
| Indoor unit width | 99.8 cm |
| Indoor unit depth | 23.8 cm |
| Indoor unit height | 32 cm |
| Indoor unit weight | 14 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
