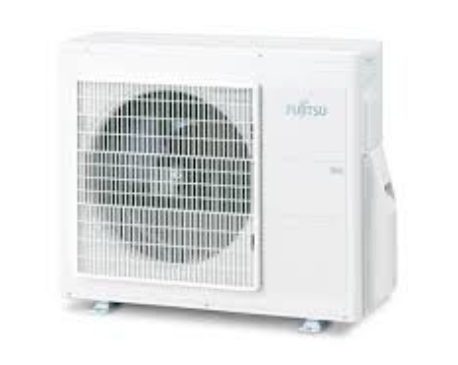

AOYG24LBCB Air conditioner outdoor unit White
Model AOYG24LBCBPart no. 3NGF8347EAN 8432884200160
30 specifications
- TypeAir conditioner outdoor unit
- ColourWhite
- AC input voltage100 - 240 V
- Wi-FiNo
- Outdoor unit noise level66 dB
Overview
- Type
- Air conditioner outdoor unit
- Colour
- White
- AC input voltage
- 100 - 240 V
- Wi-Fi
- No
- Outdoor unit noise level
- 66 dB
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- AOYG24LBCB
- Part numbers
- 3NGF8347, 3NGF8407, 3NGF8847
- EAN / UPC
- 8432884200160, 8432884200146, 8432884200184
- Also known as
- Fujitsu AOYG24LBCB Air conditioner outdoor unit White
Specifications
30 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Multi-split | No |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Inverter technology | Yes |
| Ionizer | No |
| Refrigerating medium | R410A |
| Refrigerating medium weight | 1.5 kg |
| Compressor type | Rotary |
| Compressor motor type | Brushless |
| Hose length (max) | 15 m |
| Gas hose diameter | 1.59 cm |
| Drain hose diameter | 3.57 cm |
| Liquid hose diameter | 6.35 mm |
| Operating temperature (cooling) (T-T) | -10 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Current (cooling) | 14.7 A |
| Current (heating) | 15.7 A |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 66 dB |
| Outdoor unit sound power level | 54 dB |
| Cooling airflow (outdoor unit) | 2850 m³/h |
| Heating airflow (outdoor unit) | 2850 m³/h |
| Outdoor units quantity | 1 |
| Outdoor unit width | 71.6 cm |
| Outdoor unit depth | 31.5 cm |
| Outdoor unit height | 82 cm |
| Outdoor unit weight | 42 kg |
