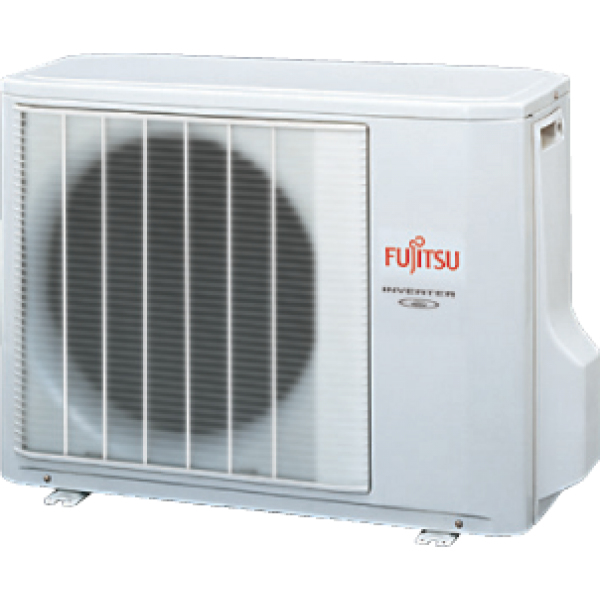

AOYG18LBCB Air conditioner outdoor unit White
Model AOYG18LBCBPart no. 3NGF8337EAN 8432884200139
39 specifications
- Energy classA+
- TypeAir conditioner outdoor unit
- ColourWhite
- Wi-FiYes
- Outdoor unit noise level50 dB
Overview
- Energy class
- A+
- Type
- Air conditioner outdoor unit
- Colour
- White
- Wi-Fi
- Yes
- Outdoor unit noise level
- 50 dB
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- AOYG18LBCB
- Part numbers
- 3NGF8337, 3NGF3117, 3NGF8402, 3NGF8842
- EAN / UPC
- 8432884200139, 8432884200122, 8432884200177, 8432884200153
- Also known as
- Fujitsu AOYG18LBCB Air conditioner outdoor unit White
Specifications
39 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Dehumidifying, Heating |
| Ionizer | No |
| Seasonal efficiency rating (cooling) (SEER) | 6.1 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 4 |
| Cooling energy efficiency (EER, W/W) | 3.21 |
| Heating energy efficiency (COP, W/W) | 3.61 |
| Cooling capacity in watts (nominal) | 5200 W |
| Heating capacity in watts (nominal) (Average heating season) | 6000 W |
| Refrigerating medium | R410A |
| Hose length (min) | 15 m |
| Hose length (max) | 25 m |
| Gas hose diameter | 1.27 cm |
| Drain hose diameter | 3.2 cm |
| Liquid hose diameter | 6.35 mm |
| Dehumidifying capacity | 2 l/h |
| Remotely operated | Yes |
| Operating temperature (cooling) (T-T) | -10 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Energy efficiency class (heating) (Warmer heating season) | A+ |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 11.5 A |
| Current (heating) | 13.5 A |
| Design load (cooling) | 298 kW |
| Design load (heating) (Average heating season) | 1819 kW |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 50 dB |
| Cooling airflow (outdoor unit) | 2380 m³/h |
| Outdoor units quantity | 1 |
| Outdoor unit width | 79.9 cm |
| Outdoor unit depth | 29 cm |
| Outdoor unit height | 63.2 cm |
| Outdoor unit weight | 36 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Seasonal efficiency rating (heating) (SCOP) | 4.2 |
