AOYG14LAC2 + ASYG09LMCA + ASYG12LMCA
Model AOYG14LAC2 + ASYG09LMCA + ASYG12LMCAPart no. KIT14DUAL9+12
47 specifications
- Energy classA+
- TypeSplit system
- ColourWhite
- Indoor unit typeWall-mountable
- Outdoor unit noise level61 dB
Overview
- Energy class
- A+
- Type
- Split system
- Colour
- White
- Indoor unit type
- Wall-mountable
- Outdoor unit noise level
- 61 dB
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- AOYG14LAC2 + ASYG09LMCA + ASYG12LMCA
- Part number
- KIT14DUAL9+12
- Also known as
- Fujitsu AOYG14LAC2 + ASYG09LMCA + ASYG12LMCA Split system White
Specifications
47 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | Split system |
| Multi-split | Yes |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Inverter technology | Yes |
| Ionizer | No |
| Comfort sleeping mode | Yes |
| Cooling energy efficiency (EER, W/W) | 3.67 |
| Heating energy efficiency (COP, W/W) | 4.27 |
| Cooling capacity in watts (nominal) | 4000 W |
| Cooling capacity in watts (min) | 1400 W |
| Cooling capacity in watts (max) | 4400 W |
| Heating capacity in watts (nominal) (Average heating season) | 4400 W |
| Heating capacity in watts (min) | 1100 W |
| Heating capacity in watts (max) | 5400 W |
| Timer | Yes |
| Refrigerating medium | R410A |
| Refrigerating medium weight | 1.25 kg |
| Auto fan | Yes |
| Compressor type | Rotary |
| Hose length (max) | 20 m |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Air filter | Yes |
| Remotely operated | Yes |
| Operating temperature (cooling) (T-T) | 10 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current | 1 A |
| Energy efficiency class (cooling) (legacy scale) | A++ |

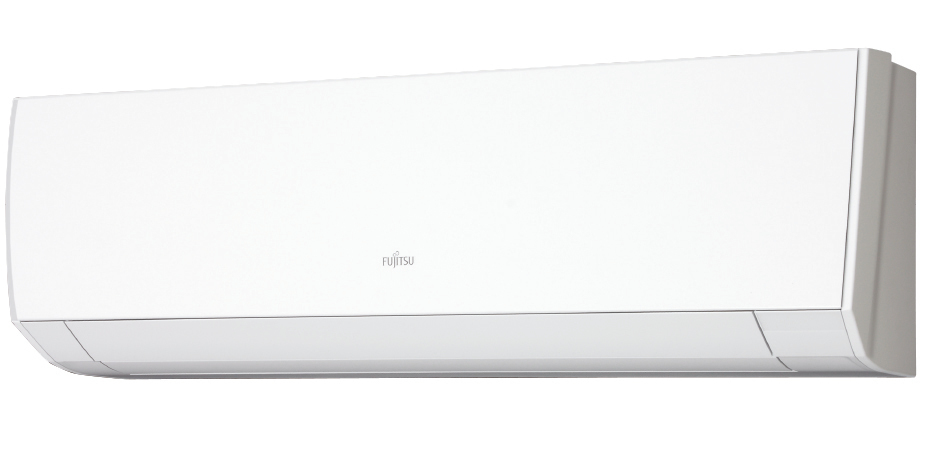

Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor units quantity | 2 |
| Indoor unit width | 84 cm |
| Indoor unit depth | 20.3 cm |
| Indoor unit height | 26.8 cm |
| Indoor unit weight | 8.5 kg |

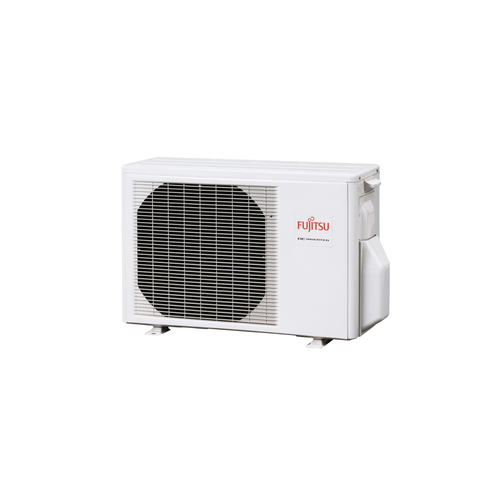

Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 61 dB |
| Outdoor unit sound power level | 63 dB |
| Outdoor units quantity | 1 |
| Outdoor unit width | 79 cm |
| Outdoor unit depth | 29 cm |
| Outdoor unit height | 54 cm |
| Outdoor unit weight | 37 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Remote control included | Yes |
