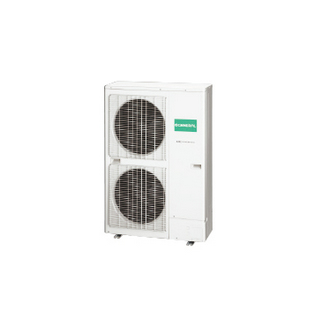

AOHG60LATT Air conditioner outdoor unit White
Model AOHG60LATTPart no. AOHG-60LATT
32 specifications
- TypeAir conditioner outdoor unit
- ColourWhite
- AC input voltage400 V
- Outdoor units quantity1
Overview
- Type
- Air conditioner outdoor unit
- Colour
- White
- AC input voltage
- 400 V
- Outdoor units quantity
- 1
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- AOHG60LATT
- Part number
- AOHG-60LATT
- Also known as
- Fujitsu AOHG60LATT Air conditioner outdoor unit White
Specifications
32 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Heating, Ventilating |
| Cooling energy efficiency (EER, W/W) | 3.19 |
| Heating energy efficiency (COP, W/W) | 3.5 |
| Cooling capacity in watts (nominal) | 15000 W |
| Cooling capacity in watts (min) | 6200 W |
| Cooling capacity in watts (max) | 17500 W |
| Heating capacity in watts (nominal) (Average heating season) | 18000 W |
| Heating capacity in watts (min) | 6200 W |
| Heating capacity in watts (max) | 20000 W |
| Timer | Yes |
| Refrigerating medium | R410A |
| Auto fan | Yes |
| Hose length (max) | 75 m |
| Gas hose diameter | 1.59 cm |
| Drain hose diameter | 2.54 cm |
| Liquid hose diameter | 9.52 mm |
| Air filter | Yes |
| Dehumidifying capacity | 2 l/h |
| Auto power off | Yes |
| Operating temperature (cooling) (T-T) | -15 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| AC input voltage | 400 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 12.5 A |
| Current (heating) | 12.5 A |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor units quantity | 1 |
| Outdoor unit width | 90 cm |
| Outdoor unit depth | 33 cm |
| Outdoor unit height | 129 cm |
| Outdoor unit weight | 104 kg |
