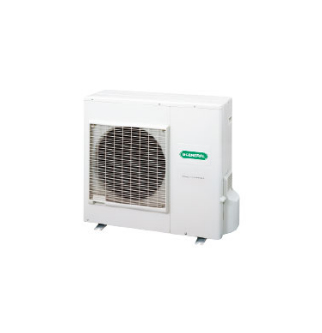

AOHG36LETL Air conditioner outdoor unit White
Model AOHG36LETLPart no. AOHG-36LETL
39 specifications
- Energy classA+
- TypeAir conditioner outdoor unit
- ColourWhite
- Outdoor units quantity1
Overview
- Energy class
- A+
- Type
- Air conditioner outdoor unit
- Colour
- White
- Outdoor units quantity
- 1
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- AOHG36LETL
- Part number
- AOHG-36LETL
- Also known as
- Fujitsu AOHG36LETL Air conditioner outdoor unit White
Specifications
39 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Seasonal efficiency rating (cooling) (SEER) | 6 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 4.1 |
| Cooling energy efficiency (EER, W/W) | 3.21 |
| Heating energy efficiency (COP, W/W) | 3.71 |
| Cooling capacity in watts (nominal) | 9400 W |
| Cooling capacity in watts (min) | 2800 W |
| Cooling capacity in watts (max) | 11200 W |
| Heating capacity in watts (nominal) (Average heating season) | 11200 W |
| Heating capacity in watts (min) | 2700 W |
| Heating capacity in watts (max) | 12700 W |
| Built-in display | No |
| Refrigerating medium | R410A |
| Auto fan | Yes |
| Hose length (max) | 50 m |
| Gas hose diameter | 1.59 cm |
| Drain hose diameter | 2.56 cm |
| Liquid hose diameter | 9.52 mm |
| Air filter | Yes |
| Dehumidifying capacity | 3 l/h |
| Operating temperature (cooling) (T-T) | -15 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Annual energy consumption (cooling) | 548 kWh |
| Annual energy consumption (heating) (Average heating season) | 2965 kWh |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 18.5 A |
| Current (heating) | 20 A |
| Design load (cooling) | 9.4 kW |
| Design load (heating) (Colder heating season) | 8.7 kW |
| Energy efficiency class (cooling) (legacy scale) | A+ |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor units quantity | 1 |
| Outdoor unit width | 90 cm |
| Outdoor unit depth | 33 cm |
| Outdoor unit height | 83 cm |
| Outdoor unit weight | 61 kg |
