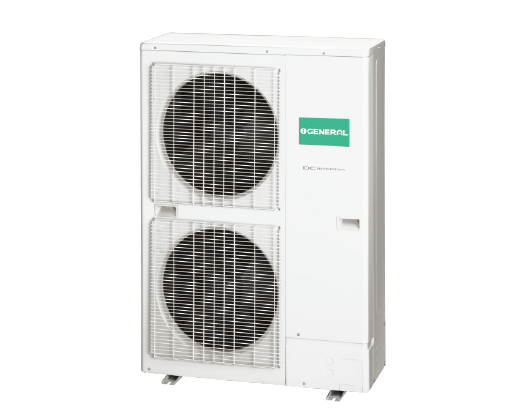

AOHG36LATT Air conditioner outdoor unit White
Model AOHG36LATTPart no. AOHG-36LATT
27 specifications
- Energy classA+
- TypeAir conditioner outdoor unit
- ColourWhite
- Outdoor unit sound power level51 dB
Overview
- Energy class
- A+
- Type
- Air conditioner outdoor unit
- Colour
- White
- Outdoor unit sound power level
- 51 dB
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- AOHG36LATT
- Part number
- AOHG-36LATT
- Also known as
- Fujitsu AOHG36LATT Air conditioner outdoor unit White
Specifications
27 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Multi-split | Yes |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Seasonal efficiency rating (cooling) (SEER) | 6 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 4 |
| Cooling capacity in watts (nominal) | 10000 W |
| Heating capacity in watts (nominal) (Average heating season) | 11200 W |
| Refrigerating medium | R410A |
| Hose length (max) | 75 m |
| Gas hose diameter | 1.59 cm |
| Liquid hose diameter | 9.52 mm |
| Operating temperature (cooling) (T-T) | -15 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Annual energy consumption (cooling) | 583 kWh |
| Annual energy consumption (heating) (Average heating season) | 3499 kWh |
| AC input voltage | 400 V |
| AC input frequency | 50 Hz |
| Design load (cooling) | 10 kW |
| Design load (heating) (Colder heating season) | 10 kW |
| Energy efficiency class (cooling) (legacy scale) | A+ |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit sound power level | 51 dB |
| Outdoor unit width | 90 cm |
| Outdoor unit depth | 33 cm |
| Outdoor unit height | 129 cm |
| Outdoor unit weight | 104 kg |
