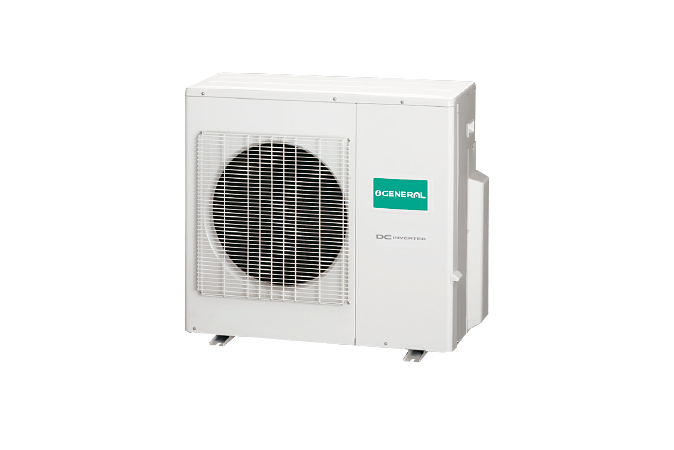

AOHG30LAT4 Air conditioner outdoor unit White
Model AOHG30LAT4Part no. AOHG-30LAT4
25 specifications
- TypeAir conditioner outdoor unit
- ColourWhite
- AC input voltage230 V
- Outdoor units quantity1
Overview
- Type
- Air conditioner outdoor unit
- Colour
- White
- AC input voltage
- 230 V
- Outdoor units quantity
- 1
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- AOHG30LAT4
- Part number
- AOHG-30LAT4
- Also known as
- Fujitsu AOHG30LAT4 Air conditioner outdoor unit White
Specifications
25 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Multi-split | Yes |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Cooling energy efficiency (EER, W/W) | 3.6 |
| Heating energy efficiency (COP, W/W) | 4 |
| Cooling capacity in watts (nominal) | 8000 W |
| Cooling capacity in watts (min) | 3500 W |
| Cooling capacity in watts (max) | 10100 W |
| Heating capacity in watts (nominal) (Average heating season) | 9600 W |
| Heating capacity in watts (min) | 3700 W |
| Heating capacity in watts (max) | 12000 W |
| Refrigerating medium | R410A |
| Hose length (max) | 70 m |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Operating temperature (cooling) (T-T) | 0 - 46 °C |
| Operating temperature (heating) (T-T) | -10 - 24 °C |
Power
| Specification | Value |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor units quantity | 1 |
| Outdoor unit width | 90 cm |
| Outdoor unit depth | 33 cm |
| Outdoor unit height | 83 cm |
| Outdoor unit weight | 68 kg |
