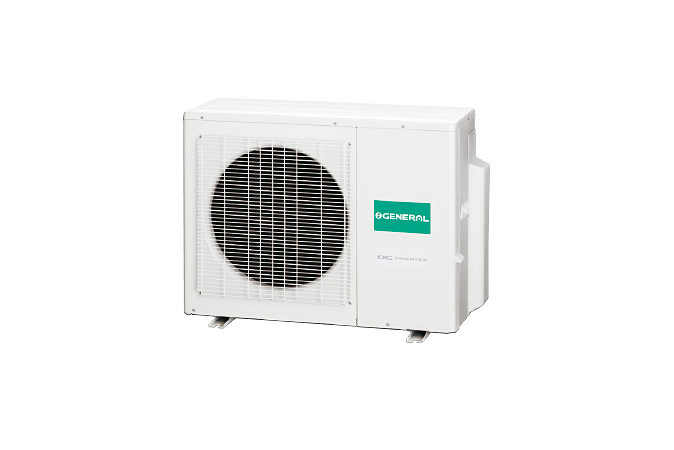

AOHG24LAT3 Air conditioner outdoor unit White
Model AOHG24LAT3Part no. AOHG-24LAT3
24 specifications
- TypeAir conditioner outdoor unit
- ColourWhite
- AC input voltage230 V
- Outdoor unit width90 cm
Overview
- Type
- Air conditioner outdoor unit
- Colour
- White
- AC input voltage
- 230 V
- Outdoor unit width
- 90 cm
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- AOHG24LAT3
- Part number
- AOHG-24LAT3
- Also known as
- Fujitsu AOHG24LAT3 Air conditioner outdoor unit White
Specifications
24 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Multi-split | Yes |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Cooling energy efficiency (EER, W/W) | 3.51 |
| Heating energy efficiency (COP, W/W) | 4 |
| Cooling capacity in watts (nominal) | 6800 W |
| Cooling capacity in watts (min) | 1800 W |
| Cooling capacity in watts (max) | 8500 W |
| Heating capacity in watts (nominal) (Average heating season) | 8000 W |
| Heating capacity in watts (min) | 2000 W |
| Heating capacity in watts (max) | 8800 W |
| Refrigerating medium | R410A |
| Hose length (max) | 50 m |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Operating temperature (cooling) (T-T) | -10 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit width | 90 cm |
| Outdoor unit depth | 33 cm |
| Outdoor unit height | 70 cm |
| Outdoor unit weight | 55 kg |
