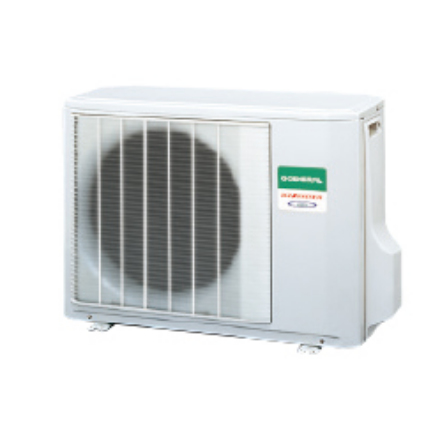

AOHG09LVCA Air conditioner outdoor unit White
Model AOHG09LVCAPart no. AOHG-09LVCA
40 specifications
- Energy classA+
- TypeAir conditioner outdoor unit
- ColourWhite
- Outdoor units quantity1
Overview
- Energy class
- A+
- Type
- Air conditioner outdoor unit
- Colour
- White
- Outdoor units quantity
- 1
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- AOHG09LVCA
- Part number
- AOHG-09LVCA
- Also known as
- Fujitsu AOHG09LVCA Air conditioner outdoor unit White
Specifications
40 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Type | Air conditioner outdoor unit |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Ionizer | Yes |
| Seasonal efficiency rating (cooling) (SEER) | 7 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 4.2 |
| Cooling energy efficiency (EER, W/W) | 4.91 |
| Heating energy efficiency (COP, W/W) | 4.43 |
| Cooling capacity in watts (nominal) | 2600 W |
| Cooling capacity in watts (min) | 900 W |
| Cooling capacity in watts (max) | 3500 W |
| Heating capacity in watts (nominal) (Average heating season) | 3500 W |
| Heating capacity in watts (min) | 900 W |
| Heating capacity in watts (max) | 5500 W |
| Timer | Yes |
| Refrigerating medium | R410A |
| Auto fan | Yes |
| Hose length (max) | 20 m |
| Gas hose diameter | 9.52 mm |
| Liquid hose diameter | 6.35 mm |
| Air filter | Yes |
| Dehumidifying capacity | 1.3 l/h |
| Remotely operated | Yes |
| Operating temperature (cooling) (T-T) | -10 - 43 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Annual energy consumption (cooling) | 130 kWh |
| Annual energy consumption (heating) (Average heating season) | 967 kWh |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 7 A |
| Current (heating) | 10 A |
| Design load (cooling) | 2.6 kW |
| Design load (heating) (Colder heating season) | 2.9 kW |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor units quantity | 1 |
| Outdoor unit width | 79 cm |
| Outdoor unit depth | 29 cm |
| Outdoor unit height | 54 cm |
| Outdoor unit weight | 36 kg |
