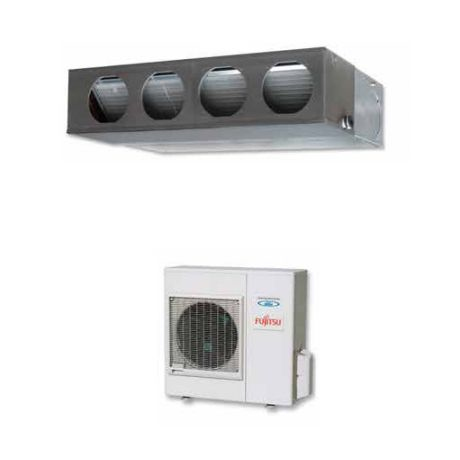

ACY 71 UiA
Model ACY 71 UiAPart no. 3NGF8575EAN 8432884087518
53 specifications
- Energy classA
- TypeSplit system
- ColourGrey, White
- Wi-FiNo
- Indoor unit typeCeiling
- Outdoor unit noise level52 dB
Overview
- Energy class
- A
- Type
- Split system
- Colour
- Grey, White
- Wi-Fi
- No
- Indoor unit type
- Ceiling
- Outdoor unit noise level
- 52 dB
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- ACY 71 UiA
- Part number
- 3NGF8575
- EAN / UPC
- 8432884087518
- Also known as
- Fujitsu ACY 71 UiA Split system Grey, White
Specifications
53 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Type | Split system |
| Multi-split | Yes |
| Product colour | Grey, White |
| Air conditioner functions | Cooling, Heating |
| Inverter technology | Yes |
| Cooling energy efficiency (EER, W/W) | 3.33 |
| Heating energy efficiency (COP, W/W) | 3.61 |
| Cooling capacity in watts (nominal) | 7100 W |
| Cooling capacity in watts (min) | 900 W |
| Cooling capacity in watts (max) | 8000 W |
| Heating capacity in watts (nominal) (Average heating season) | 8000 W |
| Heating capacity in watts (min) | 900 W |
| Heating capacity in watts (max) | 9100 W |
| Refrigerating medium | R410A |
| Auto fan | Yes |
| Compressor type | Rotary |
| Compressor motor type | Brushless |
| Hose length (max) | 15 m |
| Gas hose diameter | 1.59 cm |
| Liquid hose diameter | 6.35 mm |
| Air filter | Yes |
| Remotely operated | Yes |
| Operating temperature (cooling) (T-T) | -10 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Current (cooling) | 9.7 A |
| Current (heating) | 9.7 A |
| Design load (cooling) | 2.21 kW |
| Design load (heating) (Average heating season) | 2.21 kW |
| Energy efficiency class (cooling) (legacy scale) | A |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Ceiling |
| Indoor unit noise level (low speed) | 27 dB |
| Indoor unit noise level (high speed) | 31 dB |
| Indoor unit sound power level | 29 dB |
| Cooling airflow (indoor unit) | 1100 m³/h |
| Heating airflow (indoor unit) | 1100 m³/h |
| Indoor units quantity | 1 |
| Indoor unit width | 113.5 cm |
| Indoor unit depth | 70 cm |
| Indoor unit height | 27 cm |
| Indoor unit weight | 38 kg |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 52 dB |
| Cooling airflow (outdoor unit) | 2470 m³/h |
| Heating airflow (outdoor unit) | 2470 m³/h |
| Outdoor units quantity | 1 |
| Outdoor unit width | 79 cm |
| Outdoor unit depth | 31.5 cm |
| Outdoor unit height | 57.8 cm |
| Outdoor unit weight | 44 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
