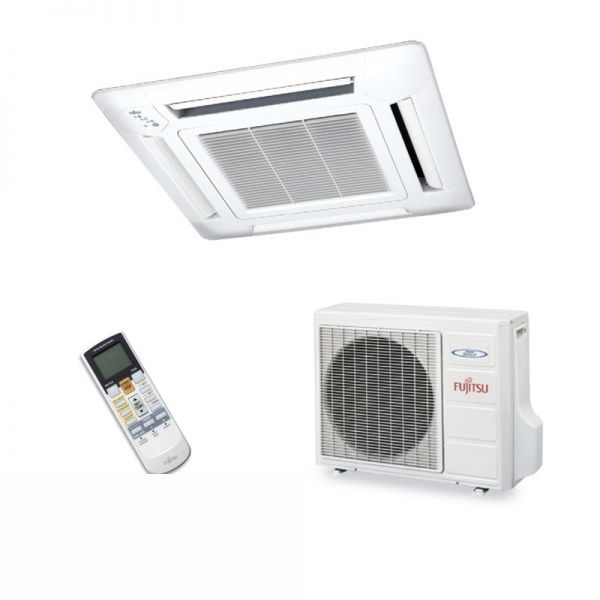

ACY 125 Ui

Model ACY 125 UiPart no. 3NGF8555EAN 8432596016738

55 specifications

Overview

55 specifications in 6 groups

Specification	Value
Type	Split system
Multi-split	Yes
Product colour	White
Air conditioner functions	Cooling, Heating
Inverter technology	Yes
Cooling energy efficiency (EER, W/W)	2.98
Heating energy efficiency (COP, W/W)	3.33
Cooling capacity in watts (nominal)	12500 W
Cooling capacity in watts (min)	3000 W
Cooling capacity in watts (max)	14000 W
Heating capacity in watts (nominal) (Average heating season)	14000 W
Heating capacity in watts (min)	3000 W
Heating capacity in watts (max)	16000 W
Refrigerating medium	R410A
Auto fan	Yes
Compressor type	Rotary
Compressor motor type	Brushless
Hose length (min)	30 m
Hose length (max)	70 m
Gas hose diameter	1.59 cm
Liquid hose diameter	6.35 mm
Air filter	Yes
Remotely operated	Yes
Operating temperature (cooling) (T-T)	-15 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Current (cooling)	9.7 A
Current (heating)	11.5 A
Design load (cooling)	2.21 kW
Design load (heating) (Average heating season)	2.21 kW
Energy efficiency class (cooling) (legacy scale)	A

Specification	Value
Wi-Fi	No

Specification	Value
Indoor unit type	Ceiling
Indoor unit noise level (low speed)	36 dB
Indoor unit noise level (high speed)	49 dB
Indoor unit sound power level	44 dB
Cooling airflow (indoor unit)	930 m³/h
Heating airflow (indoor unit)	930 m³/h
Indoor units quantity	1
Indoor unit width	57 cm
Indoor unit depth	57 cm
Indoor unit height	24.5 cm
Indoor unit weight	19.6 kg

Specification	Value
Outdoor unit noise level	52 dB
Cooling airflow (outdoor unit)	2470 m³/h
Heating airflow (outdoor unit)	2470 m³/h
Outdoor units quantity	1
Outdoor unit width	79 cm
Outdoor unit depth	31.5 cm
Outdoor unit height	57.8 cm
Outdoor unit weight	44 kg

Specification	Value
Manual	Yes
Remote control included	Yes
