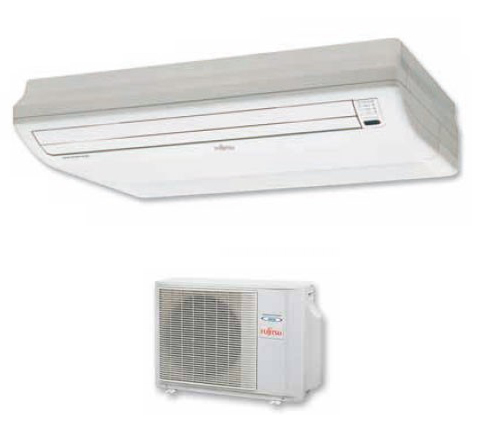

ABY 50 UIA-LV
Model ABY 50 UIA-LVPart no. 3NGF8335EAN 8432884200245
41 specifications
- Energy classA+
- TypeSplit system
- ColourWhite
- Indoor unit typeWall-mountable
- Outdoor unit noise level50 dB
Overview
- Energy class
- A+
- Type
- Split system
- Colour
- White
- Indoor unit type
- Wall-mountable
- Outdoor unit noise level
- 50 dB
- Brand
- Fujitsu
- Category
- Split-System Air Conditioner
- Model
- ABY 50 UIA-LV
- Part number
- 3NGF8335
- EAN / UPC
- 8432884200245
- Also known as
- Fujitsu ABY 50 UIA-LV Split system White
Specifications
41 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Type | Split system |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Inverter technology | Yes |
| Seasonal efficiency rating (cooling) (SEER) | 6.1 |
| Cooling capacity in watts (nominal) | 5200 W |
| Cooling capacity in watts (min) | 900 W |
| Cooling capacity in watts (max) | 5900 W |
| Heating capacity in watts (nominal) (Average heating season) | 6000 W |
| Heating capacity in watts (min) | 900 W |
| Heating capacity in watts (max) | 7500 W |
| Timer | Yes |
| Refrigerating medium | R410A |
| Operating temperature (cooling) (T-T) | -10 - 46 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (heating) (Average heating season) | A+ |
| Power consumption (cooling) (max) | 1620 W |
| Power consumption (heating) (max) | 1660 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Current (cooling) | 7.2 A |
| Current (heating) | 7.4 A |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit noise level (high speed) | 43 dB |
| Cooling airflow (indoor unit) | 780 m³/h |
| Heating airflow (indoor unit) | 780 m³/h |
| Indoor units quantity | 1 |
| Indoor unit width | 99 cm |
| Indoor unit depth | 65.5 cm |
| Indoor unit height | 19.9 cm |
| Indoor unit weight | 27 kg |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 50 dB |
| Cooling airflow (outdoor unit) | 2000 m³/h |
| Heating airflow (outdoor unit) | 2000 m³/h |
| Outdoor units quantity | 1 |
| Outdoor unit width | 79 cm |
| Outdoor unit depth | 30 cm |
| Outdoor unit height | 57.8 cm |
| Outdoor unit weight | 40 kg |
Other features
| Specification | Value |
|---|---|
| Seasonal efficiency rating (heating) (SCOP) | 4 |
