3NGF7647 + 3NGF7648

Model 3NGF7647 + 3NGF7648Part no. KIT-ASY12KG

51 specifications

Overview

51 specifications in 5 groups

Specification	Value
Type	Split system
Multi-split	Yes
Product colour	White
Air conditioner functions	Cooling, Heating
Seasonal efficiency rating (cooling) (SEER)	8.51
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	5.1
Cooling energy efficiency (EER, W/W)	4.22
Heating energy efficiency (COP, W/W)	4.4
Cooling capacity in watts (nominal)	3400 W
Heating capacity in watts (nominal) (Average heating season)	4000 W
Refrigerating medium	R32
Refrigerating medium weight	850 g
Auto fan	Yes
Hose length (max)	15 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Dehumidifying capacity	1.8 l/h
Remotely operated	Yes
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+++
Annual energy consumption (cooling)	140 kWh
Annual energy consumption (heating) (Average heating season)	685 kWh
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	3.4 kW
Design load (heating) (Average heating season)	2.5 kW
Energy efficiency class (cooling) (legacy scale)	A+++

Specification	Value

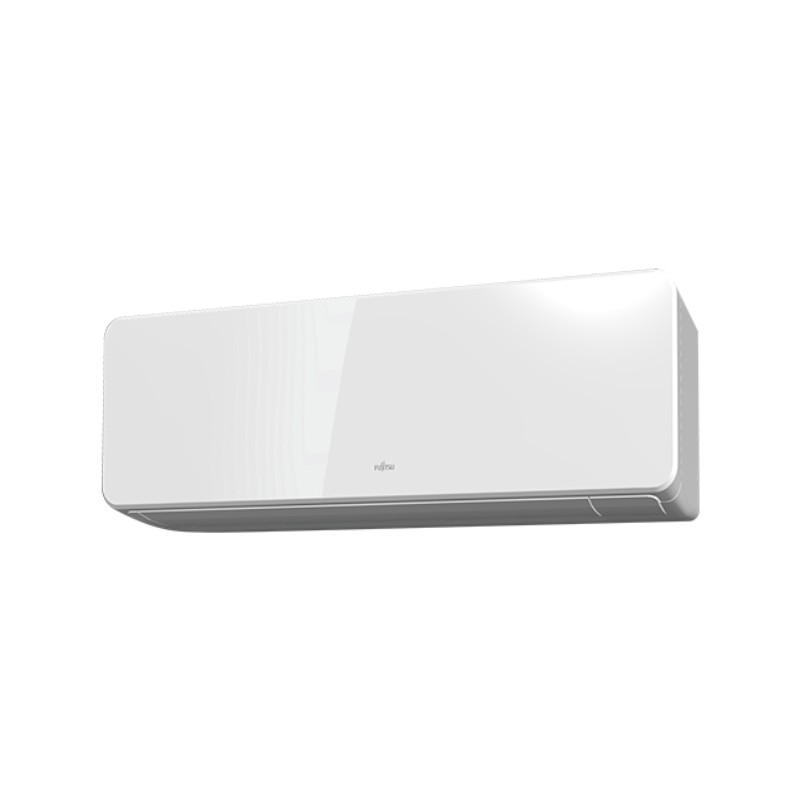

Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	33 dB
Indoor unit noise level (high speed)	40 dB
Indoor unit sound power level	58 dB
Cooling airflow (indoor unit)	700 m³/h
Heating airflow (indoor unit)	700 m³/h
Indoor units quantity	1

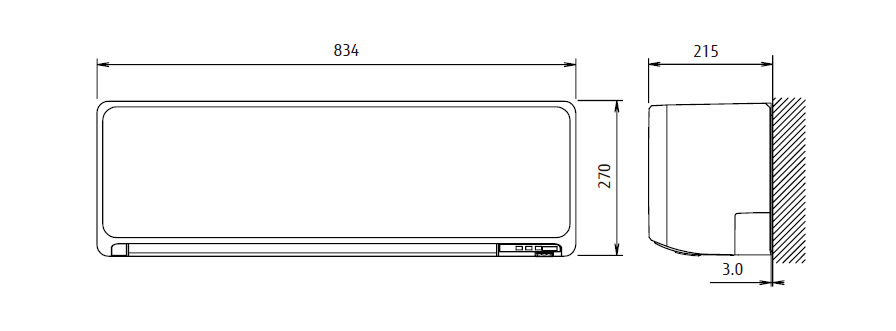

Indoor unit width	83.4 cm
Indoor unit depth	21.5 cm
Indoor unit height	27 cm
Indoor unit weight	10 kg

Specification	Value
Outdoor unit noise level	50 dB
Outdoor unit sound power level	66 dB
Cooling airflow (outdoor unit)	1680 m³/h
Heating airflow (outdoor unit)	1680 m³/h
Outdoor units quantity	1
Outdoor unit width	79.9 cm
Outdoor unit depth	29 cm
Outdoor unit height	54.2 cm
Outdoor unit weight	31 kg

Specification	Value
Manual	Yes
Remote control included	Yes
