3NGF3115 air conditioner Split system Stainless steel, White

Model 3NGF3115EAN 8432884200191

53 specifications

Overview

Brand: Fujitsu
Category: Split-System Air Conditioner
Model: 3NGF3115
Part number: 3NGF3115
EAN / UPC: 8432884200191
Also known as: Fujitsu 3NGF3115 air conditioner Split system Stainless steel, White

53 specifications in 5 groups

Specification	Value
Type	Split system
Multi-split	Yes
Product colour	Stainless steel, White
Air conditioner functions	Cooling, Dehumidifying, Heating
Inverter technology	Yes
Seasonal efficiency rating (cooling) (SEER)	5.8
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	3.8
Heating energy efficiency (COP, W/W)	3.38
Cooling capacity in watts (nominal)	5200 W
Cooling capacity in watts (min)	900 W
Cooling capacity in watts (max)	5900 W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Heating capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Refrigerating medium	R410A
Refrigerating medium weight	1.25 kg
Hose length (min)	15 m
Hose length (max)	25 m
Hose diameter	6.35 mm
Gas hose diameter	1.27 cm
Drain hose diameter	2.5 cm
Dehumidifying capacity	1.8 l/h
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A
Annual energy consumption (cooling)	314 kWh
Annual energy consumption (heating) (Average heating season)	1914 kWh
AC input voltage	230 V
AC input frequency	50 Hz
Current	12.5 A
Current (cooling)	9 A
Current (heating)	12.5 A
Design load (cooling)	5.2 kW
Design load (heating) (Average heating season)	5.2 kW
Energy efficiency class (cooling) (legacy scale)	A+

Specification	Value
Wi-Fi	No

Specification	Value
Indoor unit type	Cassette
Indoor unit noise level (low speed)	26 dB
Indoor unit noise level (high speed)	33 dB
Cooling airflow (indoor unit)	940 m³/h
Indoor unit width	70 cm
Indoor unit depth	45 cm
Indoor unit height	19.8 cm
Indoor unit weight	18.5 kg

Specification	Value

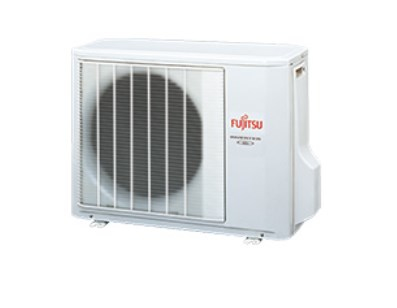

Outdoor unit noise level	50 dB
Outdoor unit sound power level	65 dB
Cooling airflow (outdoor unit)	2000 m³/h
Heating airflow (outdoor unit)	2000 m³/h
Outdoor units quantity	1
Outdoor unit width	79 cm
Outdoor unit depth	30 cm
Outdoor unit height	57.8 cm
Outdoor unit weight	40 kg
